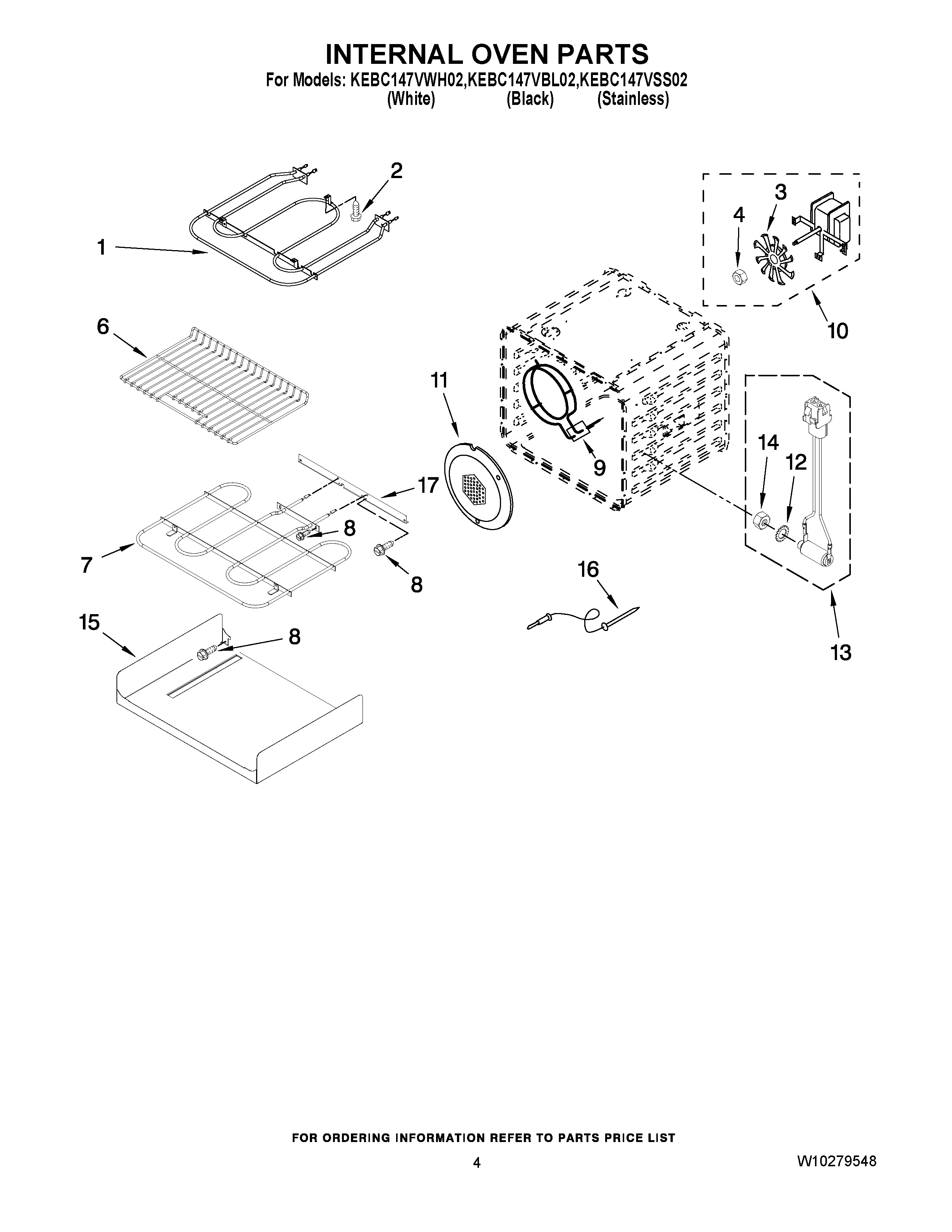

KEBC147VSS02 03 – INTERNAL OVEN PARTS

KEBC147VSS02 03 – INTERNAL OVEN PARTS

Written by

in

KEBC147VSS02 03 – INTERNAL OVEN PARTS

Products

PositionProduct
1WPW10207400 Whirlpool Broil Element
2WP4449154 Whirlpool Screw
3W10758272 Whirlpool Convection Fan
4WPW10116349 Whirlpool Nut
64448716 Whirlpool Oven Rack 24"
7ELMNT-BAKE
8WP4449809 Whirlpool Screw
9WP9760769 Whirlpool Element Assembly
10W10794022 Whirlpool Oven Cooktop Fan Motor
11WPW10160821 Whirlpool Fan Cover
12WP9755547 Whirlpool Lockwasher
138186589 Whirlpool Jack Probe
14WP9755546 Whirlpool Locknut
154455035 Whirlpool Bake Tray
16WP9755542 Whirlpool Oven Meat Probe
174450039 Whirlpool Oven Access Cover
