KEBC149BSS0 04 – INTERNAL OVEN PARTS

KEBC149BSS0 04 – INTERNAL OVEN PARTS

Written by

in

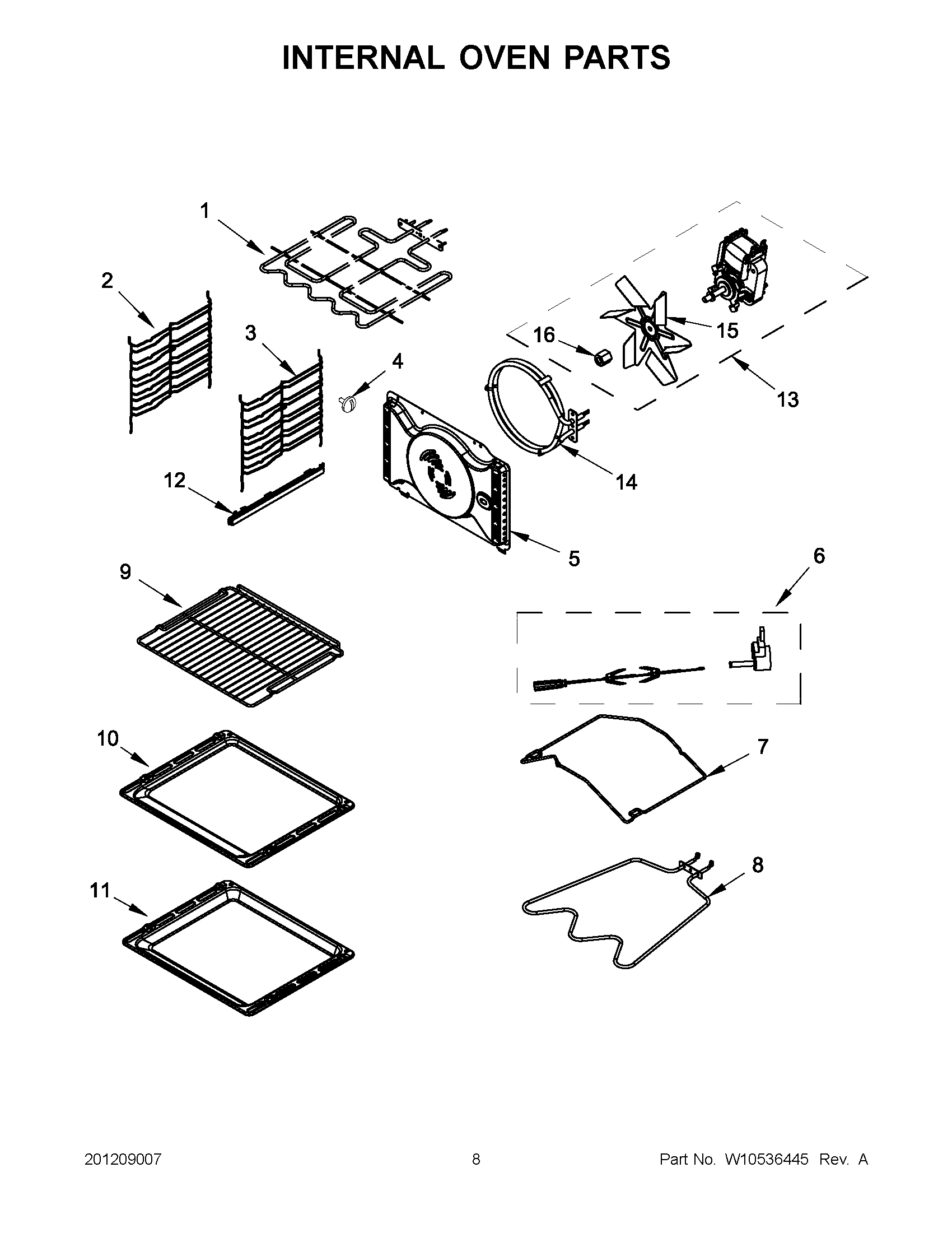

KEBC149BSS0 04 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELEMENT, UPPER/GRILL 2450 WATTS
2GRID, RACK LEFT SIDE
3GRID, RACK RIGHT SIDE
4SCREW, GRID
5BAFFLE, CONVECTION FAN
6W10519017 Whirlpool Rotisserie Motor
7RACK, ROTISSERIE SPIT SUPPORT
8ELEMENT, LOWER 1150 WATTS
9RACK, OVEN
10TRAY, BAKING
11PAN, DEEP
12RAIL, SLIDING LEFT AND RIGHT
13MOTOR, FAN CONVECTION
14ELEMENT, FORCED AIR 2450 WATTS
158186866 Whirlpool Oven Fan Wheel
16NUT
