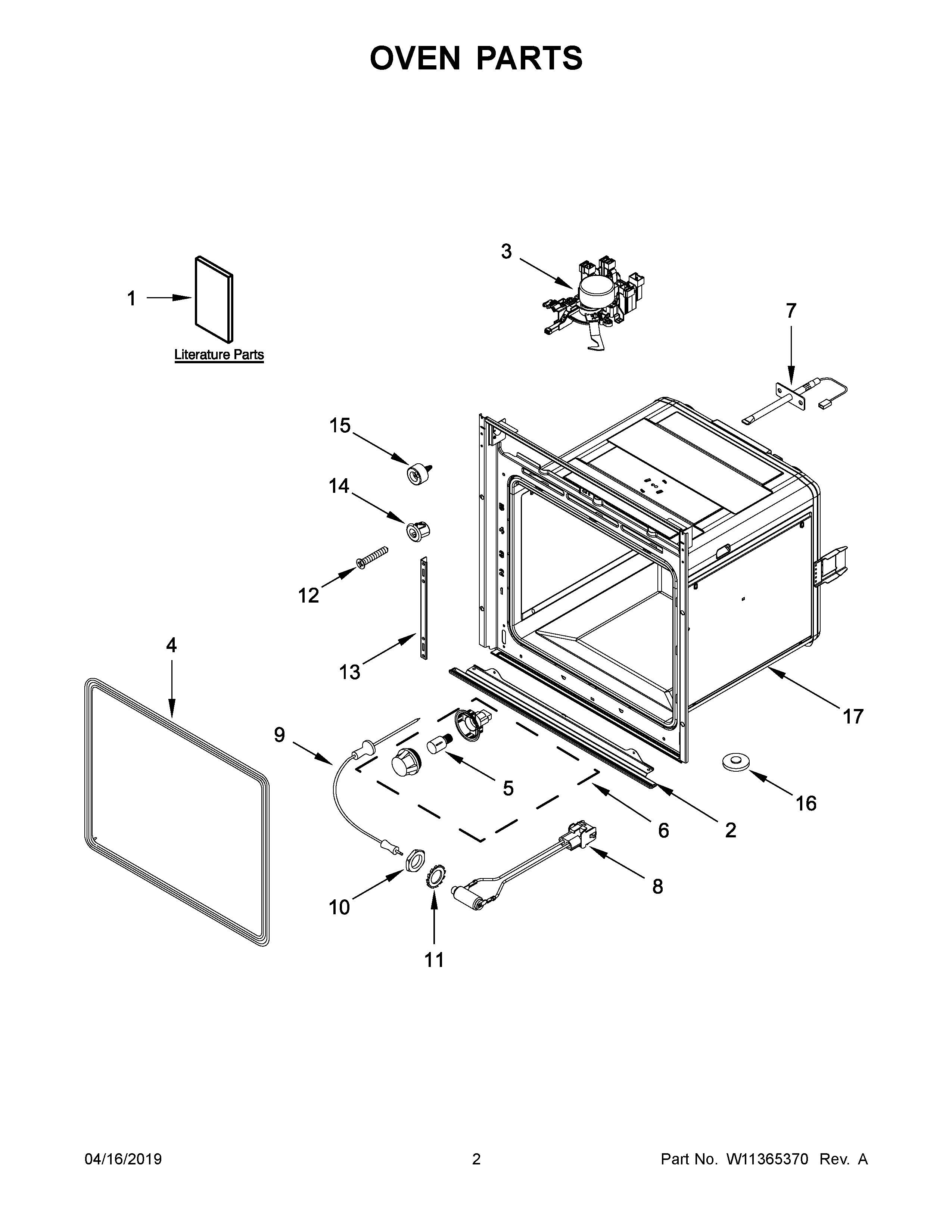

KEBC149BSS1 02 – OVEN PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE
2W10517979 Whirlpool Trim Assembly
3LATCH, DOOR
4W10518387 Whirlpool Oven Door Gasket
5BULB, HALOGEN 40 WATT
6ASSEMBLY, BULB INCLUDES SOCKET AND LENS COVER
7SENSOR, TEMPERATURE
8W11237411 Whirlpool Probe Jack
9PROBE, MEAT
10NUT, MEAT PROBE 10X1.57
11WASHER, MEAT PROBE
12KIT, OVEN SCREWS
13HINGE, RUNNING MECHANISM
14BUMPER, OVEN
15BUMPER, OVEN DOOR
16FOOT, LEVEL OVEN
17CABINET (NOT A SERVICEABLE PART)
