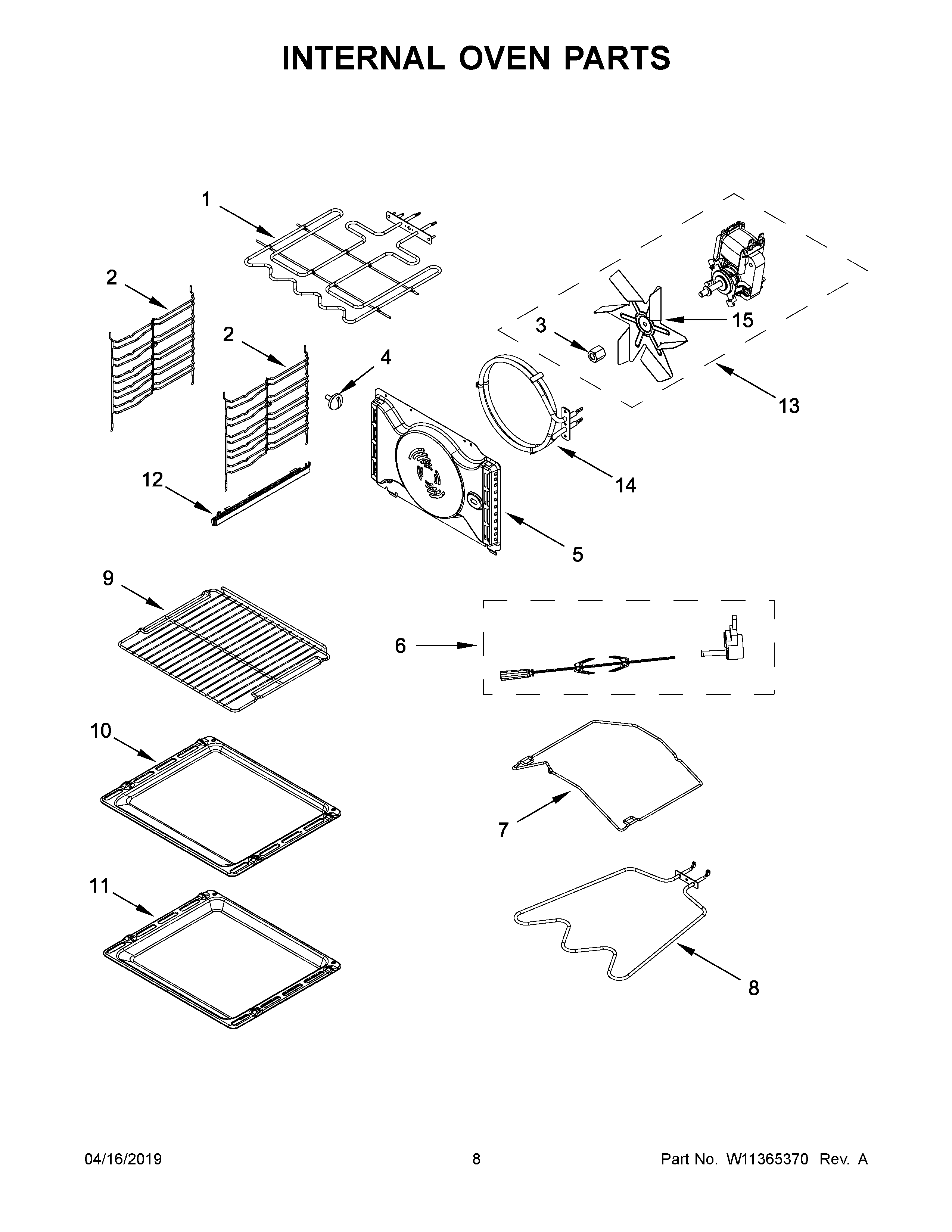

KEBC149BSS1 05 – INTERNAL OVEN PARTSadmin2025-04-26T10:33:26+00:00KEBC149BSS1 05 – INTERNAL OVEN PARTS
Products
| Position | Product |
|---|
| 1 | ELEMENT, UPPER GRILL |
| 2 | W11236920 Whirlpool Support Bracket |
| 3 | NUT |
| 4 | SCREW, GRID |
| 5 | BAFFLE, CONVECTION FAN |
| 6 | W10519017 Whirlpool Rotisserie Motor |
| 7 | RACK, ROTISSERIE SPIT SUPPORT |
| 8 | W11237289 Whirlpool Bake Element |
| 9 | W11236918 Whirlpool Rack |
| 10 | TRAY, BAKING |
| 11 | TRAY, DEEP |
| 12 | KIT, SLIDING RAIL (LEFT AND RIGHT) |
| 13 | MOTOR, FAN CONVECTION |
| 14 | ELEMENT, CONVECTION |
| 15 | BLADE, FAN |
