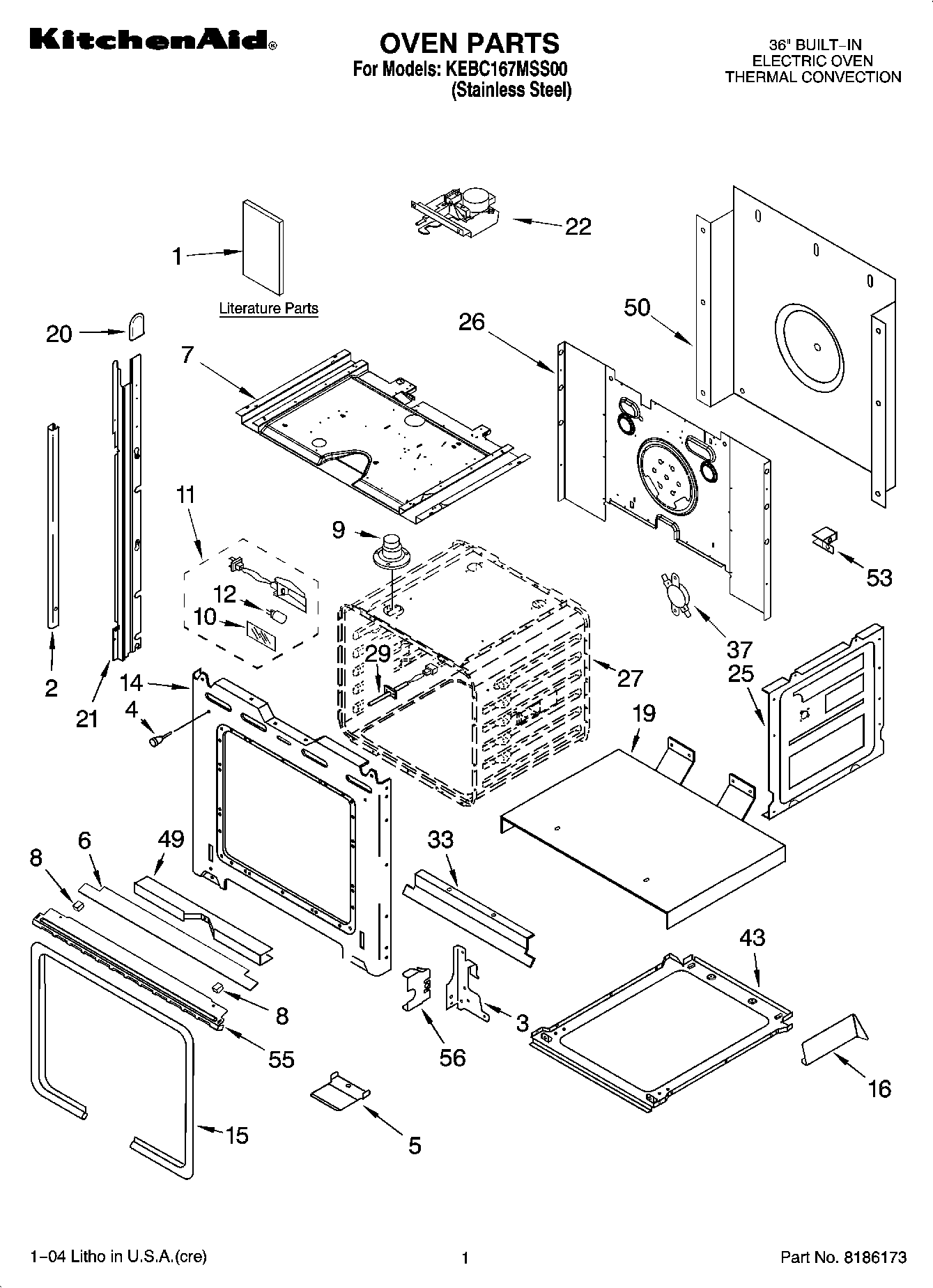

KEBC167MSS00 01 – OVEN PARTS

KEBC167MSS00 01 – OVEN PARTS

Written by

in

KEBC167MSS00 01 – OVEN PARTS

Products

PositionProduct
WPL ARI81615A4
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet)
1Literature Parts (Installation/ Undercounter)
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Easy Set Guide)
2W10144984 Whirlpool Trim
2WP694091 Whirlpool Screw
2WPW10144983 Whirlpool Trim
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5W10145009 Whirlpool Vent Deflector
6Insulation, Bottom Vent
7Top, Chassis
8Spacer, Foam
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Frame, Front
14WP4450118 Whirlpool Nut
14Screw
15W10858111 Whirlpool Door Gasket
16Bracket, Deflector (Right)
16Bracket, Deflector (Left)
16WP3400805 Whirlpool Screw Assembly
19Support, Insulation
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
53WP4449809 Whirlpool Screw
53WPL 4449845
55Trim, Bottom
56Insulation, Back
56Insulation, Wrap
564452152 Whirlpool Oven Mounting Bracket
56FOLLOWI
