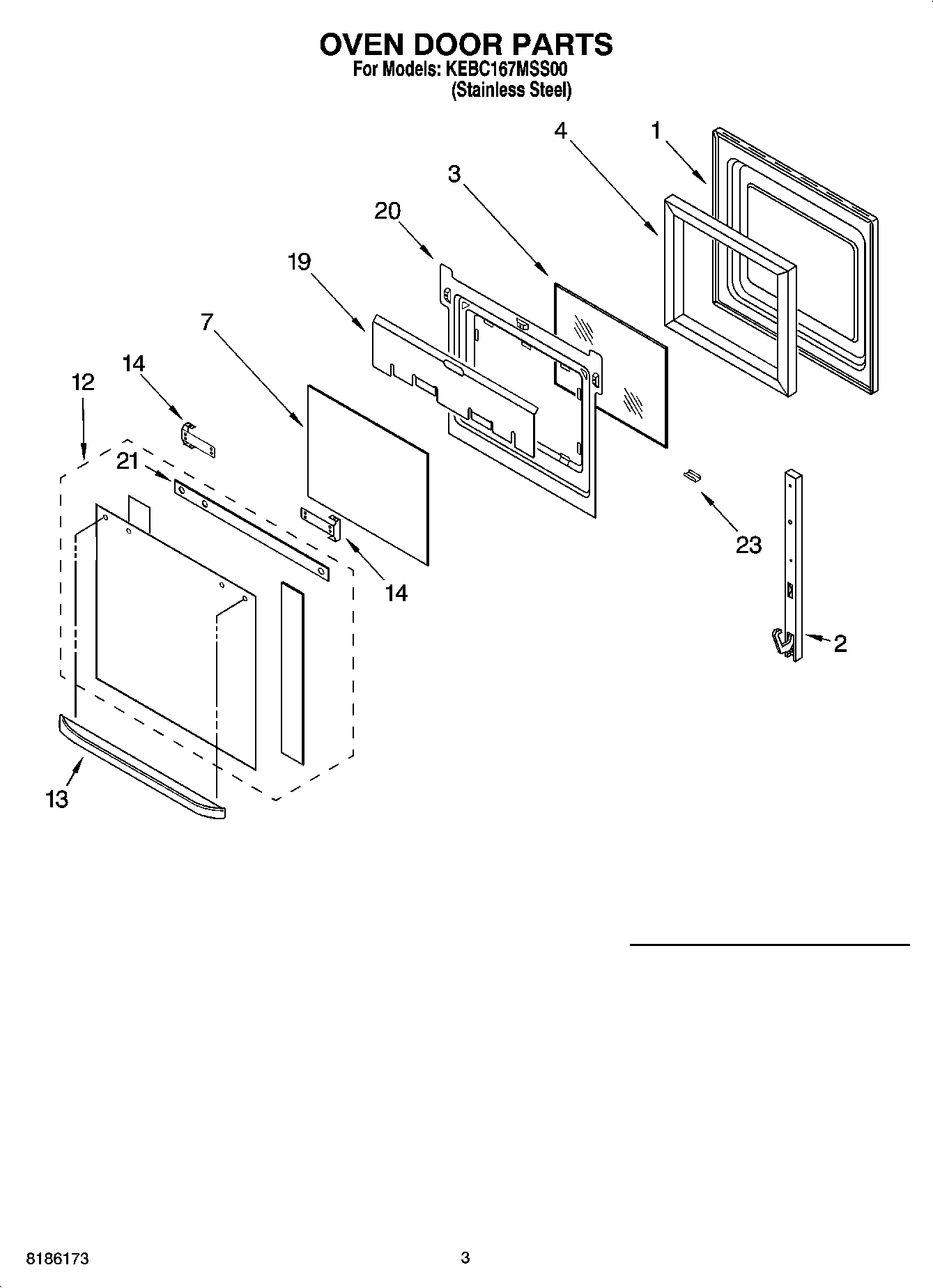

KEBC167MSS00 02 – OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Door Liner
2	WP4449743 Whirlpool Screw
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP9760579 Whirlpool Right Door Hinge
3	WP4449259 Whirlpool Glass Window
4	Insulation, Door
7	WP4449263 Whirlpool Inner Door Glass
12	Door Glass, Assy
13	Door Handle
14	Bracket, Handle (L.Hand)
14	WPW10132940 Whirlpool Dishwasher Screw
14	4455803 Whirlpool Oven Bracket
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Retainer, Glass-Clip (Stainless Steel)
