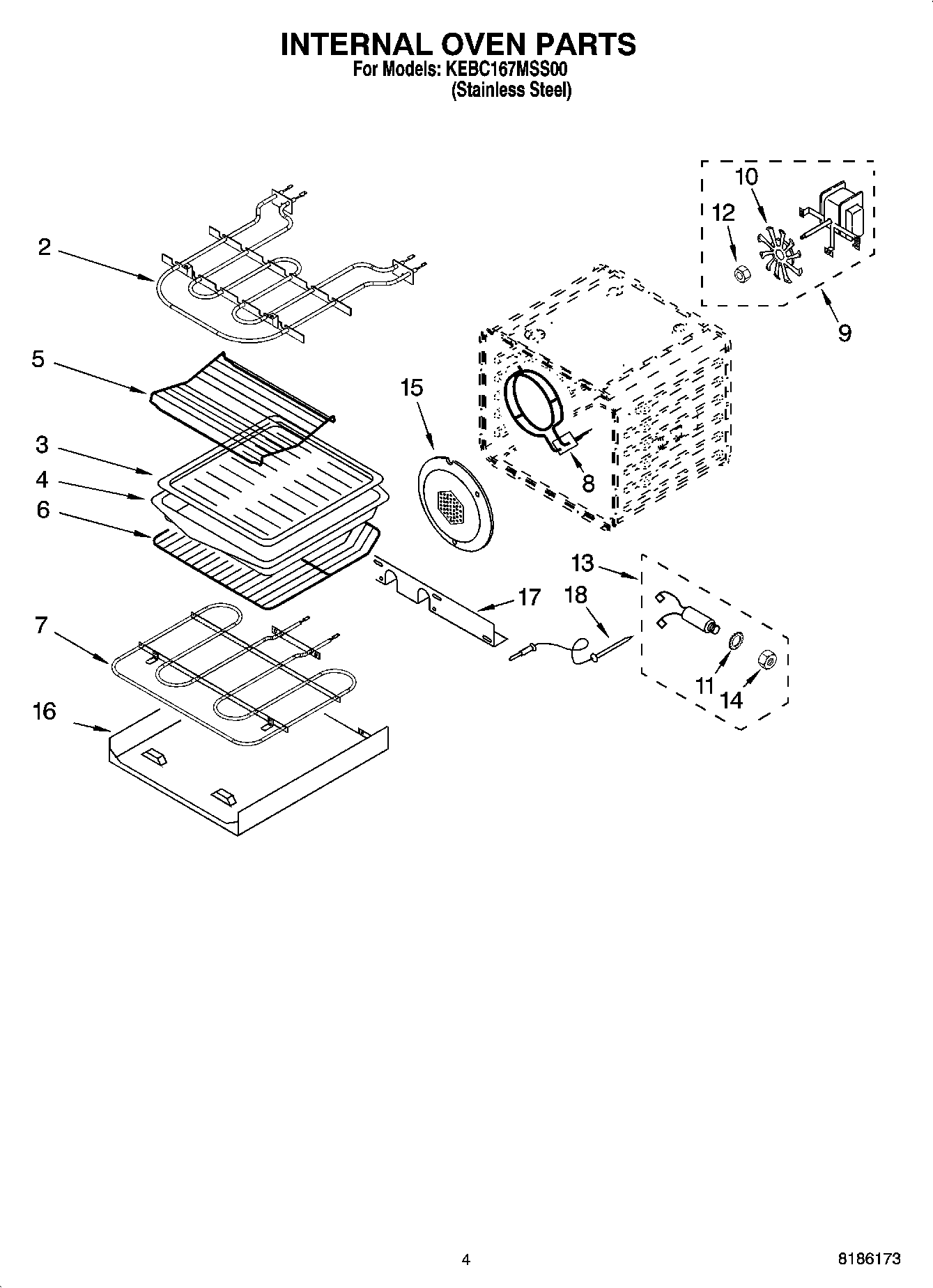

KEBC167MSS00 03 – INTERNAL OVEN PARTS

Products

Position	Product
2	ELMNT-BROL
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
5	Rack, Roasting
6	Rack, Oven
7	Element, Hidden Bake
8	WP9760769 Whirlpool Element Assembly
9	Motor Convection
10	WP4452226 Whirlpool Convection Fan
11	WP9755547 Whirlpool Lockwasher
12	Nut
13	8186589 Whirlpool Jack Probe
14	WP9755546 Whirlpool Locknut
15	WP4449154 Whirlpool Screw
15	WPW10160821 Whirlpool Fan Cover
16	Tray, Hidden Bake
17	WP4449809 Whirlpool Screw
17	Cover, Access
18	WP9755542 Whirlpool Oven Meat Probe
