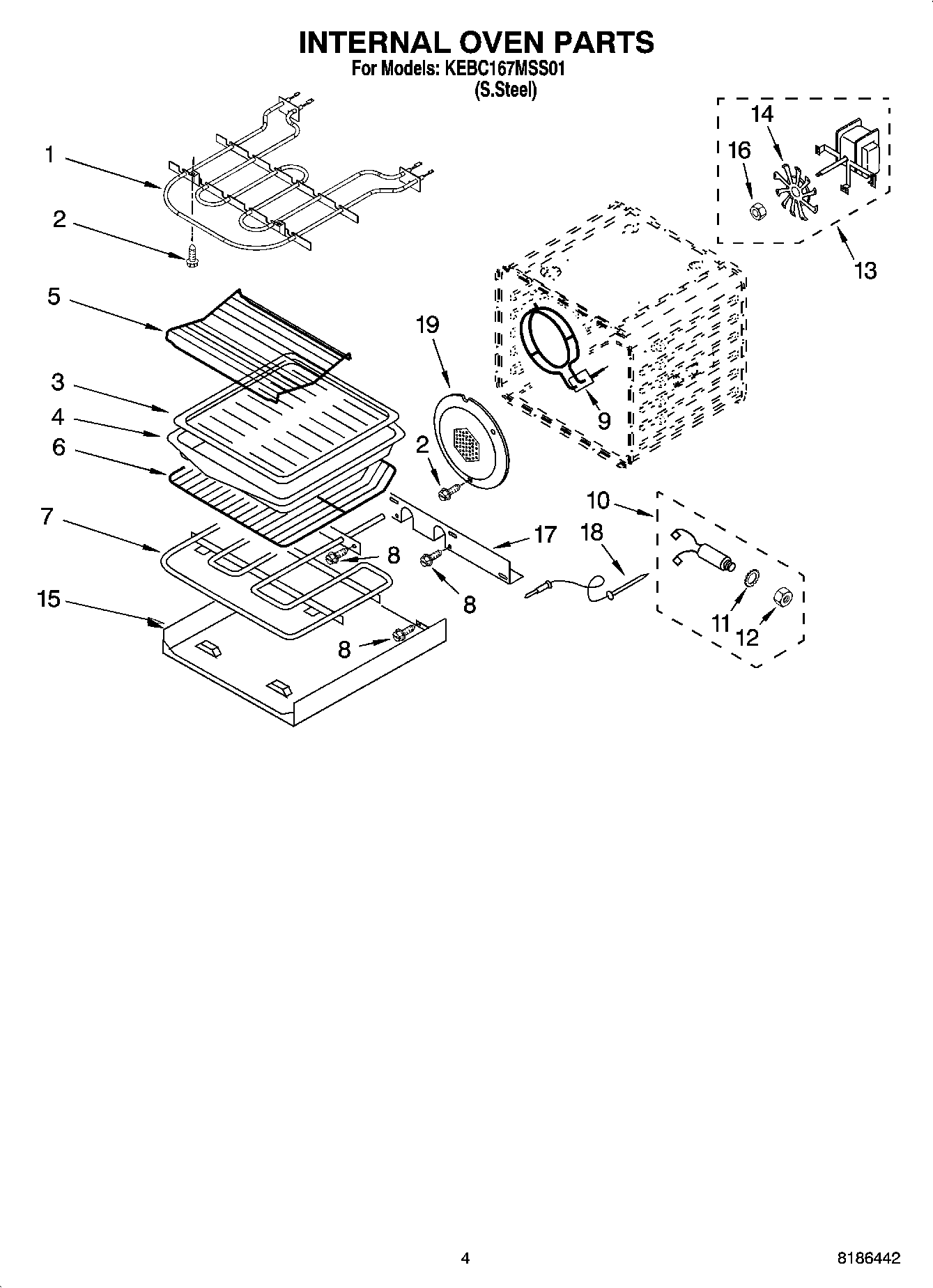

KEBC167MSS01 03 – INTERNAL OVEN PARTS

KEBC167MSS01 03 – INTERNAL OVEN PARTS

Written by

in

KEBC167MSS01 03 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELMNT-BROL
2WP4449154 Whirlpool Screw
3WP3195996 Whirlpool Pan Grid
4W10737569 Whirlpool Broil Pan
5Rack, Roasting
6Rack, Oven
7Element, Hidden Bake
8WP4449809 Whirlpool Screw
9WP9760769 Whirlpool Element Assembly
108186589 Whirlpool Jack Probe
11WP9755547 Whirlpool Lockwasher
12WP9755546 Whirlpool Locknut
13Motor Convection
14WP4452226 Whirlpool Convection Fan
15Tray, Hidden Bake
16Nut
17Cover, Access
18WP9755542 Whirlpool Oven Meat Probe
19WPW10160821 Whirlpool Fan Cover
