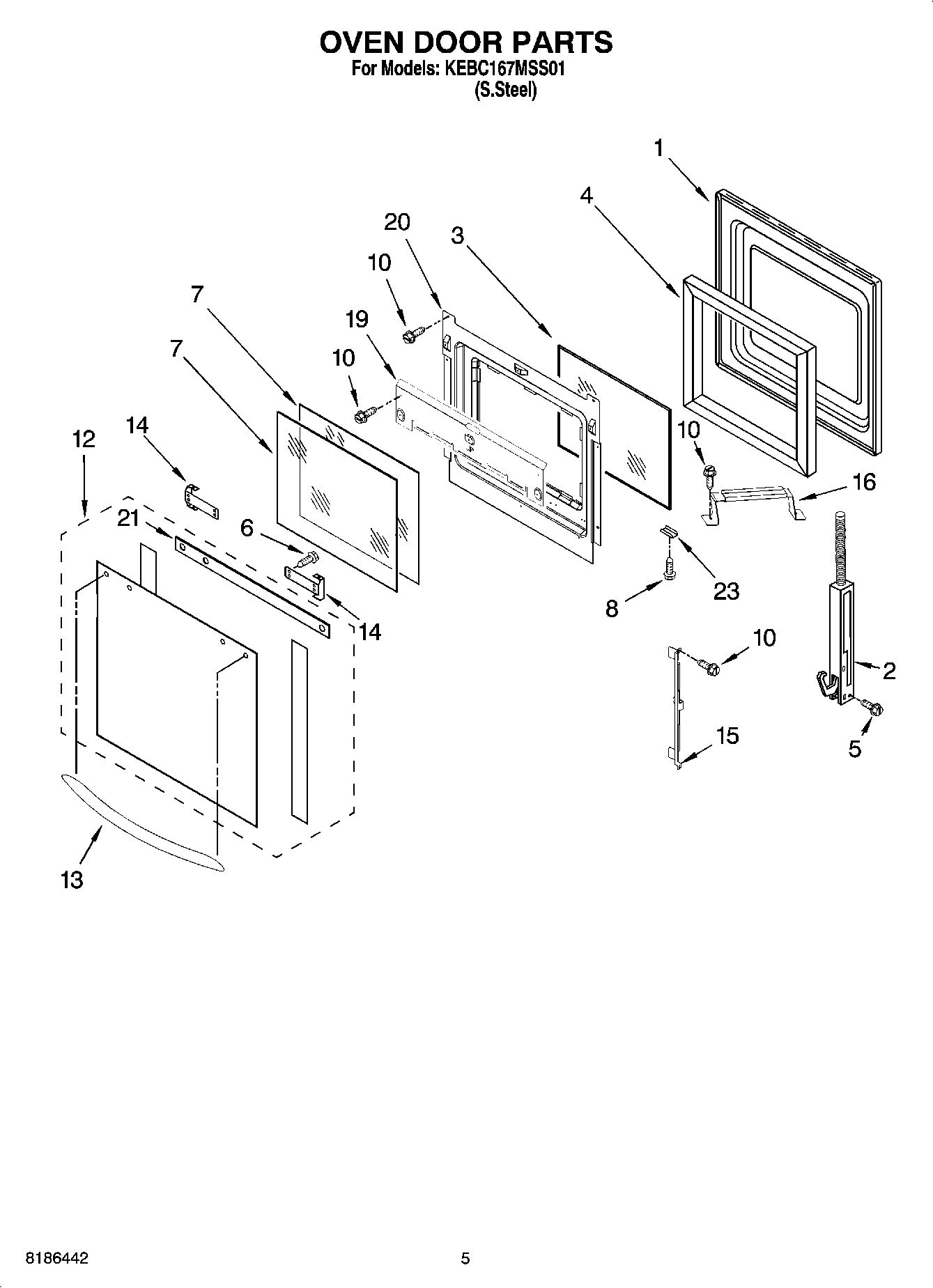

KEBC167MSS01 04 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP9760579 Whirlpool Right Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449259 Whirlpool Glass Window
4	Insulation, Door
5	WP4449743 Whirlpool Screw
6	WPW10132940 Whirlpool Dishwasher Screw
7	WP4449263 Whirlpool Inner Door Glass
8	WP3400832 Whirlpool Screw
10	WP4449809 Whirlpool Screw
12	Door Glass, Assy
13	Door Handle
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket, Central
19	Shield, Heat
20	Retainer, Glass
21	Seal, Door Top
23	Retainer, Glass-Clip (Stainless Steel)
