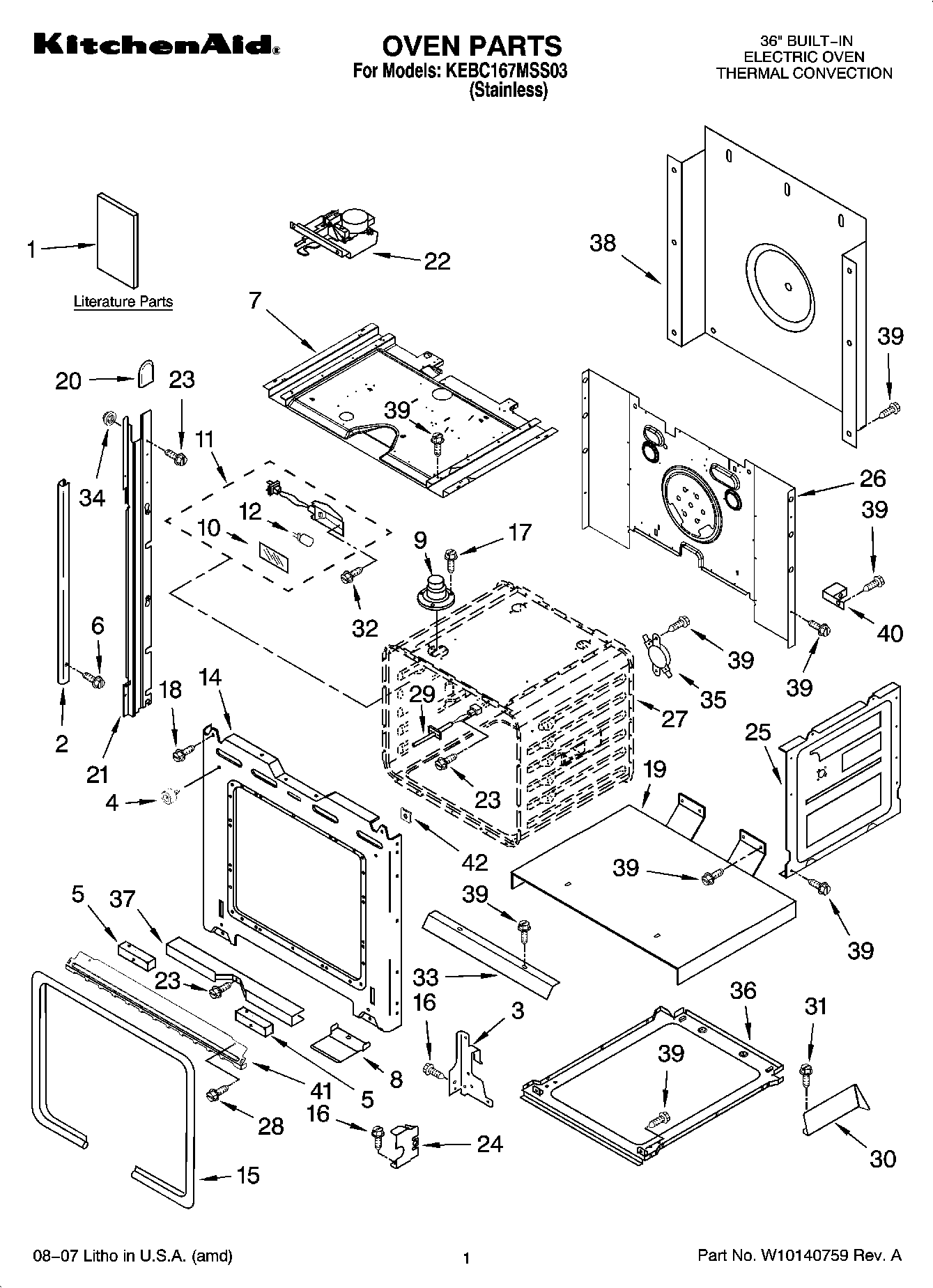

KEBC167MSS03 01 – OVEN PARTS

KEBC167MSS03 01 – OVEN PARTS

Written by

in

KEBC167MSS03 01 – OVEN PARTS

Products

PositionProduct
1Tech Sheet (Oven) (French)
1Tech Sheet (Oven) (English)
1Use & Care Guide
1Installation Instructions
1Safe Cooking Tips
1Easy Set Guide (French)
1Safe Cooking Tips (French)
1Easy Set Guide
2WPW10144983 Whirlpool Trim
2W10144984 Whirlpool Trim
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5Spacer, Foam
6WP694091 Whirlpool Screw
7Top, Chassis
8W10145009 Whirlpool Vent Deflector
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Frame, Front
15W10858111 Whirlpool Door Gasket
16WP4449743 Whirlpool Screw
17SCREW
18Screw
19Support, Insulation
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
23WP4449154 Whirlpool Screw
244452152 Whirlpool Oven Mounting Bracket
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP3400832 Whirlpool Screw
29WPW10131825 Whirlpool Oven Temperature Sensor
30Bracket, Deflector (Right)
30Bracket, Deflector (Left)
31WP3400805 Whirlpool Screw Assembly
324449748 Whirlpool Oven Screw
33Deflector, Vent
34WP4448444 Whirlpool Grommet
35WP9759243 Whirlpool Thermostat
36Base, Chassis
37WP4448933 Whirlpool Retainer
38WP4451747 Whirlpool Rear Cover
39WP4449809 Whirlpool Screw
40WPL 4449845
41Trim, Bottom
42WP4450118 Whirlpool Nut
42Insulation, Back
42Insulation, Wrap
42FOLLOWING PARTS NOT ILLUSTRATED INSULATION
