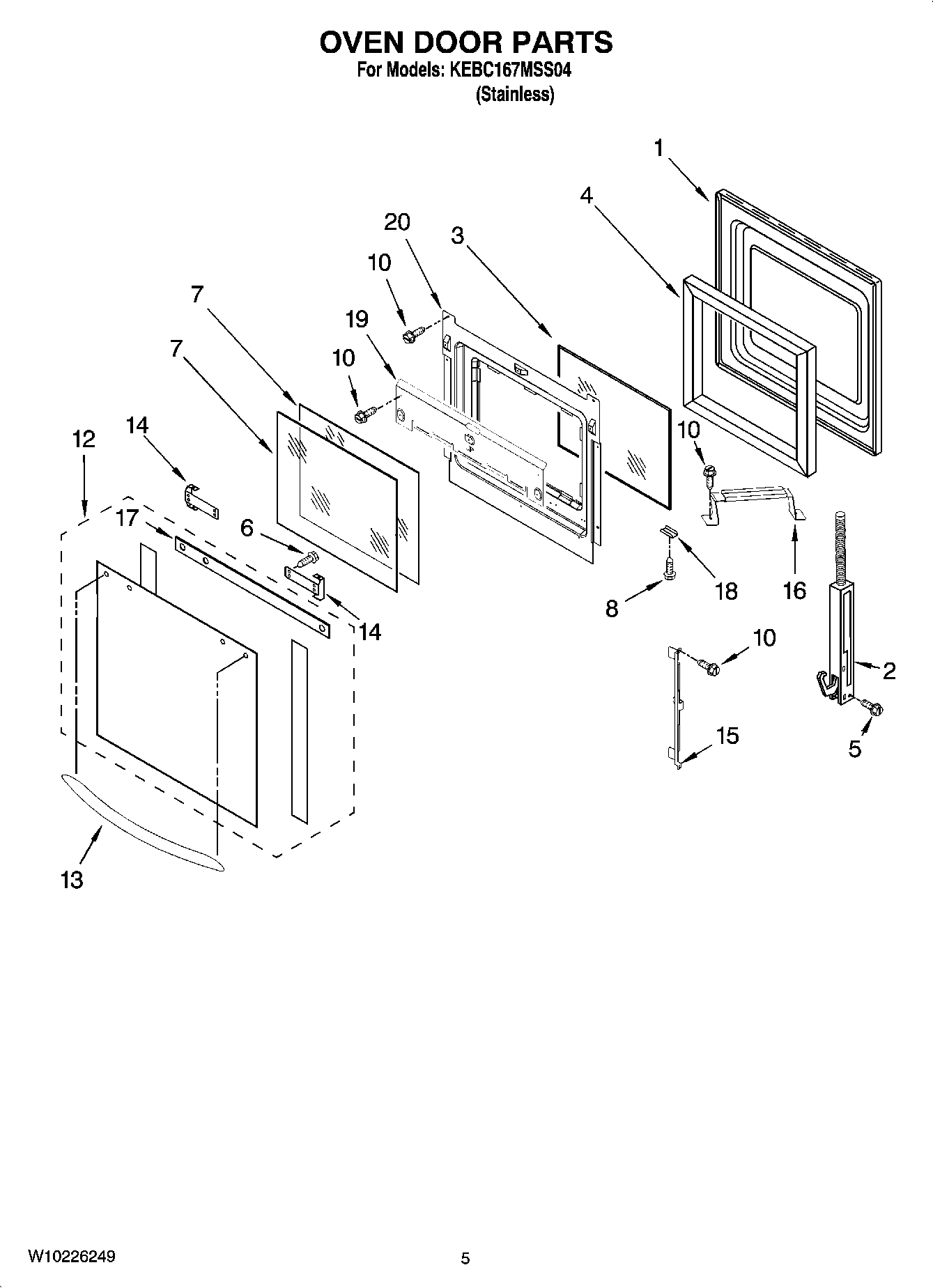

KEBC167MSS04 04 – OVEN DOOR PARTS

KEBC167MSS04 04 – OVEN DOOR PARTS

Written by

in

KEBC167MSS04 04 – OVEN DOOR PARTS

Products

PositionProduct
1Door Liner
2HINGE-DOOR LH/SS DOOR SPRING
2WP9760579 Whirlpool Right Door Hinge
3WP4449259 Whirlpool Glass Window
4Insulation, Door
5WP4449743 Whirlpool Screw
6WPW10132940 Whirlpool Dishwasher Screw
7WP4449263 Whirlpool Inner Door Glass
8WP3400832 Whirlpool Screw
10WP4449809 Whirlpool Screw
12Door Glass, Assembly
13Door Handle
14Bracket, Handle (L.Hand)
144455803 Whirlpool Oven Bracket
15WP9759229 Whirlpool Mounting Bracket
16Bracket, Central
17Shield, Heat
18Retainer, Glass
19Seal, Door Top
20Retainer, Clip (Stainless)
