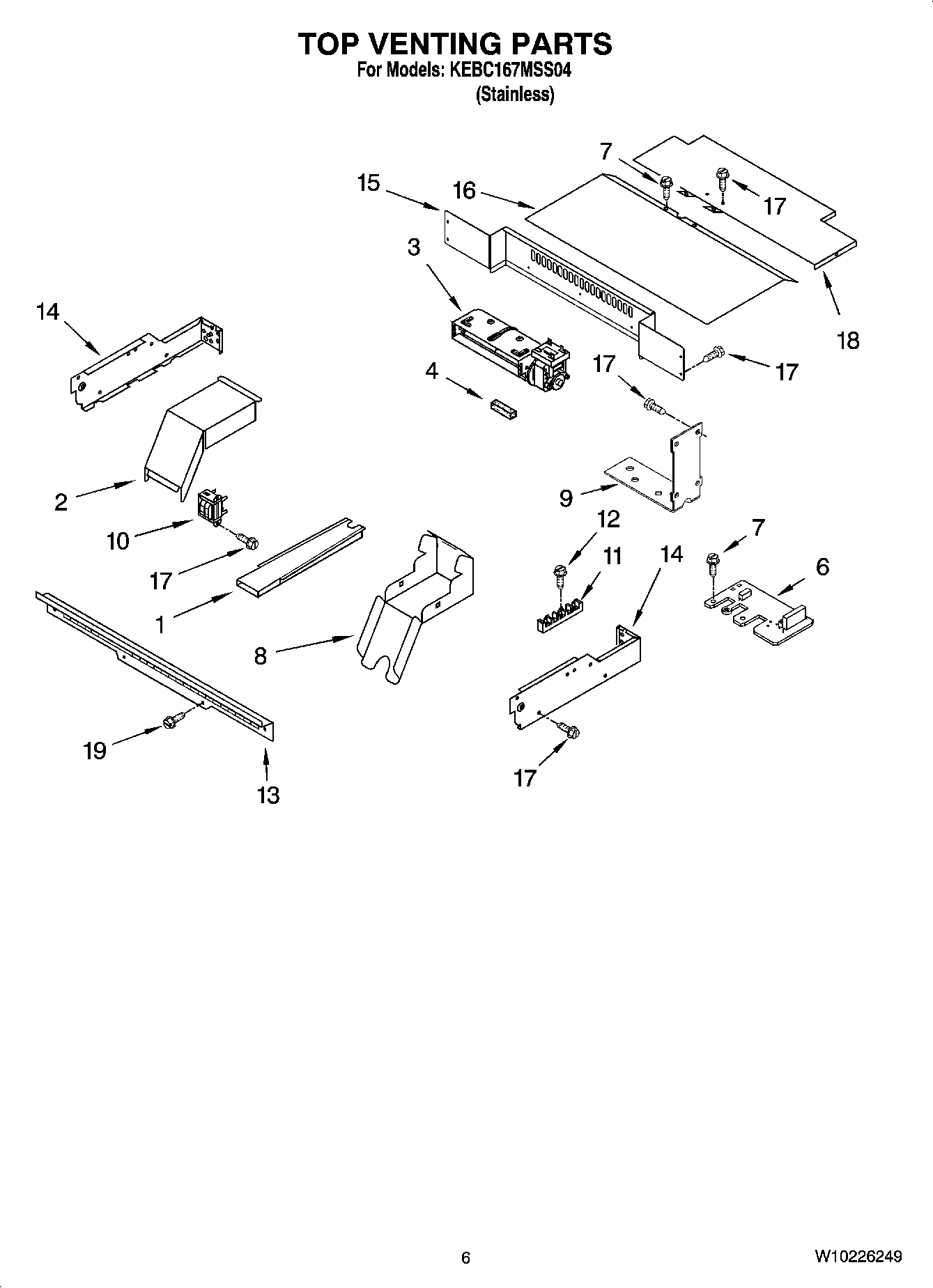

KEBC167MSS04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
72017 Whirlpool Appliance Touch-Up Paint White
WIRING HARNESS PARTS
SPLICING WIRES–25FT. LENGTH
Harness, Main
WP4450952 Whirlpool Conduit
4451761 Whirlpool Oven Support Bracket
Miscellaneous
WP261869 Whirlpool Microwave Paint
4452400 Whirlpool Microwave Wire Harness
WP4448950 Whirlpool Screw
8528351 Whirlpool Clip
Nut
4448664 Whirlpool Oven Mounting Bracket
4450800 Whirlpool Oven Screw
72032 Whirlpool Touch Up Paint Black
WP4449809 Whirlpool Screw
WP482338 Whirlpool Refrigerator Adhesive
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3W10810687 Whirlpool Blower Assembly
4W10491987 Whirlpool Foam Seal
6WP4451985 Whirlpool Noise Filter Board
84455177 Whirlpool Oven Bottom Elbow
9WP4455352 Whirlpool Mounting Bracket
10Transformer
11WP8203546 Whirlpool Terminal Block
12Screw
13Vent, (Control Panel)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
18Cover, Top Front
19WP4450038 Whirlpool Screw
