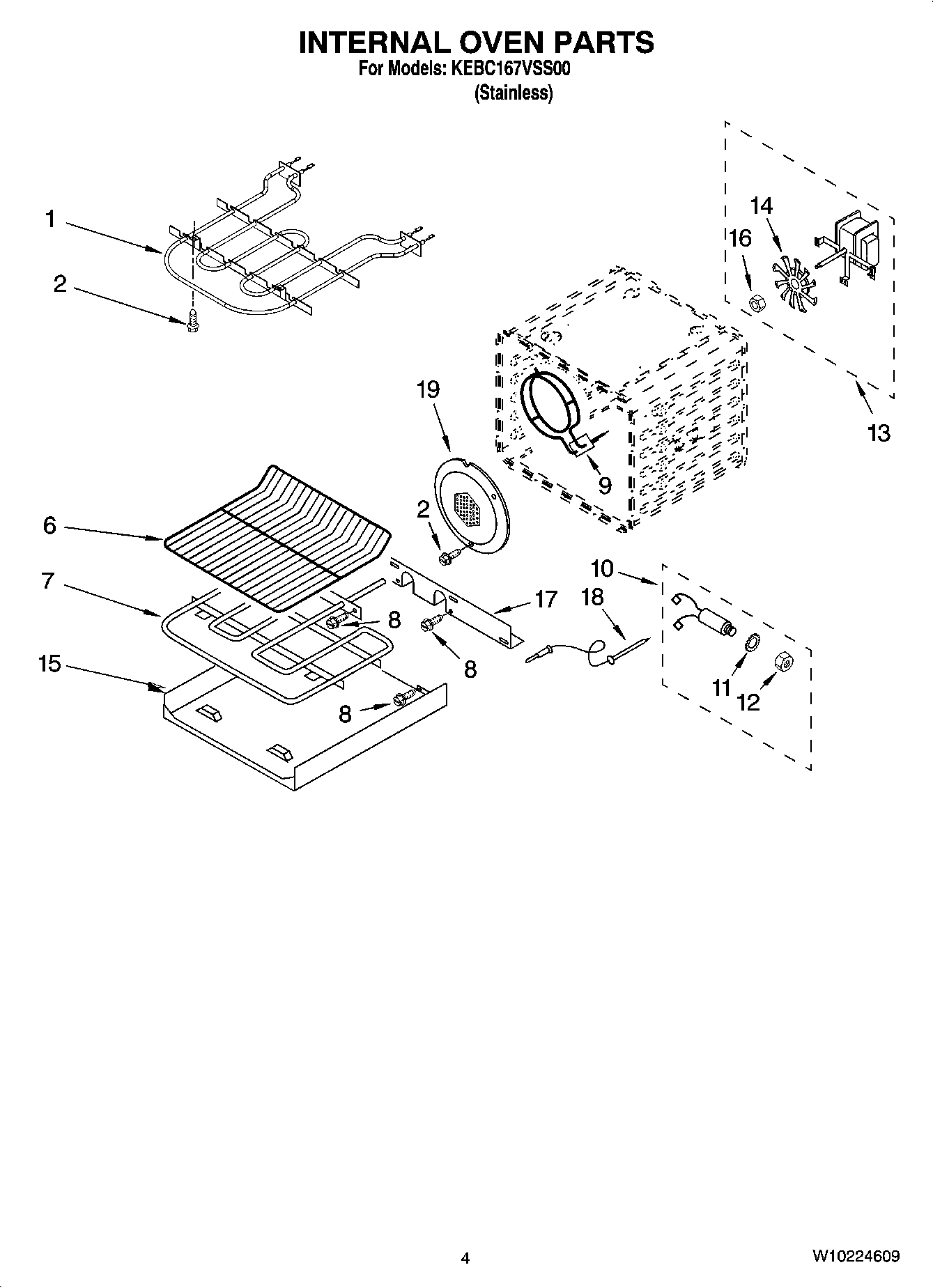

KEBC167VSS00 03 – INTERNAL OVEN PARTS

KEBC167VSS00 03 – INTERNAL OVEN PARTS

Written by

in

KEBC167VSS00 03 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELMNT-BROL
2WP4449154 Whirlpool Screw
6Rack, Oven
7Element, Bake
8WP4449809 Whirlpool Screw
9WP9760769 Whirlpool Element Assembly
108186589 Whirlpool Jack Probe
11WP9755547 Whirlpool Lockwasher
12WP9755546 Whirlpool Locknut
13W10794022 Whirlpool Oven Cooktop Fan Motor
14W10758272 Whirlpool Convection Fan
15Tray, Hidden Bake
16WPW10116349 Whirlpool Nut
17Cover, Access
18WP9755542 Whirlpool Oven Meat Probe
19WPW10160821 Whirlpool Fan Cover
