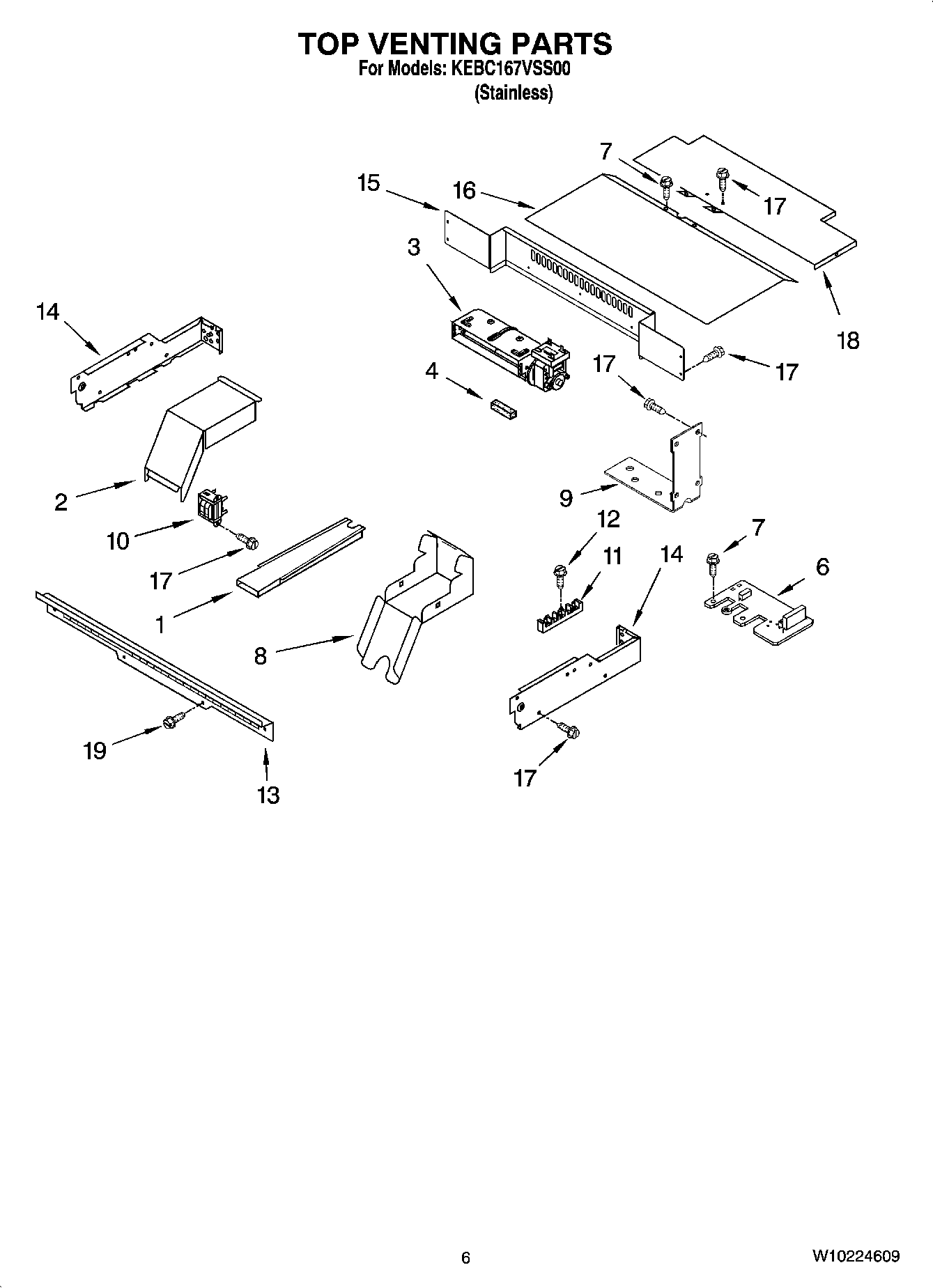

KEBC167VSS00 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL 591014
	Miscellaneous
	4451761 Whirlpool Oven Support Bracket
	WP4450952 Whirlpool Conduit
	261900 Whirlpool Microwave Spray
	Harness, Main
	Optional Parts Not Included
	ADHESIVE
	WIRING HARNESS PARTS
	WP261869 Whirlpool Microwave Paint
	4452400 Whirlpool Microwave Wire Harness
	8528351 Whirlpool Clip
	4448664 Whirlpool Oven Mounting Bracket
	Nut
	4450800 Whirlpool Oven Screw
	285006 Whirlpool Spray
	WP4449809 Whirlpool Screw
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	72017 Whirlpool Appliance Touch-Up Paint White
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
6	WP4451985 Whirlpool Noise Filter Board
8	4455177 Whirlpool Oven Bottom Elbow
9	WP4455352 Whirlpool Mounting Bracket
10	Transformer
11	WP8203546 Whirlpool Terminal Block
12	Screw
13	Vent, (Control Panel)
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	Cover, Top Rear
18	Cover, Top Front
19	WP4450038 Whirlpool Screw
