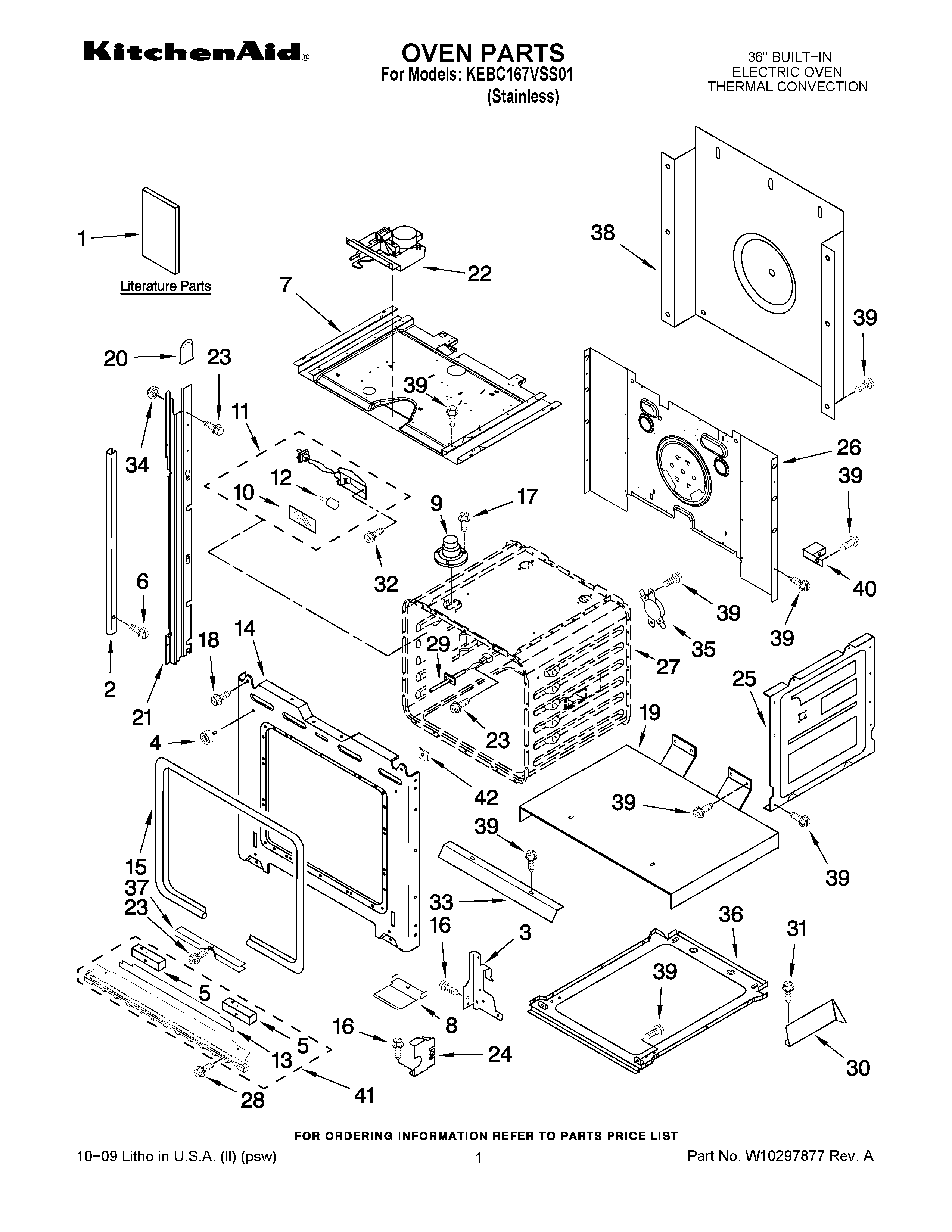

KEBC167VSS01 01 – OVEN PARTS

Products

Position	Product
NI	Insulation, Back
NI	Insulation, Wrap
1	TECH SHEET (ENGLISH)
1	TECH SHEET (FRENCH)
1	Installation Instructions (Undercounter Oven)
1	Easy Set Guide (French)
1	Use & Care Guide
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Easy Set Guide
2	W10144984 Whirlpool Trim
2	WPW10144983 Whirlpool Trim
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	W10105790 Whirlpool Bumper
5	Spacer, Foam
6	WP694091 Whirlpool Screw
7	Top, Chassis
8	W10145009 Whirlpool Vent Deflector
9	W10861715 Whirlpool Vent Tube
10	W10169756 Whirlpool Light Lens
11	WPW10307114 Whirlpool Light
12	BULB-LIGHT
13	INSULATOR BOTTOM VENT
14	Frame, Front
15	W10858111 Whirlpool Door Gasket
16	WP4449743 Whirlpool Screw
17	SCREW
18	Screw
19	Support, Insulation
20	Cap, Spacer
21	814372 Whirlpool Oven Rail Mount
21	814371 Whirlpool Oven Rail Mount
22	WPW10195934 Whirlpool Door Latch
23	WP4449154 Whirlpool Screw
24	4452152 Whirlpool Oven Mounting Bracket
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	CABINET (NOT A SERVICEABLE PART)
28	WP3400832 Whirlpool Screw
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Bracket, Deflector (Right)
30	Bracket, Deflector (Left)
31	WP3400805 Whirlpool Screw Assembly
32	4449748 Whirlpool Oven Screw
33	Deflector, Vent
34	WP4448444 Whirlpool Grommet
35	WP9759243 Whirlpool Thermostat
36	Base, Chassis
37	WP4448933 Whirlpool Retainer
38	WP4451747 Whirlpool Rear Cover
39	WP4449809 Whirlpool Screw
40	WPL 4449845
41	Trim, Bottom
42	WP4450118 Whirlpool Nut
