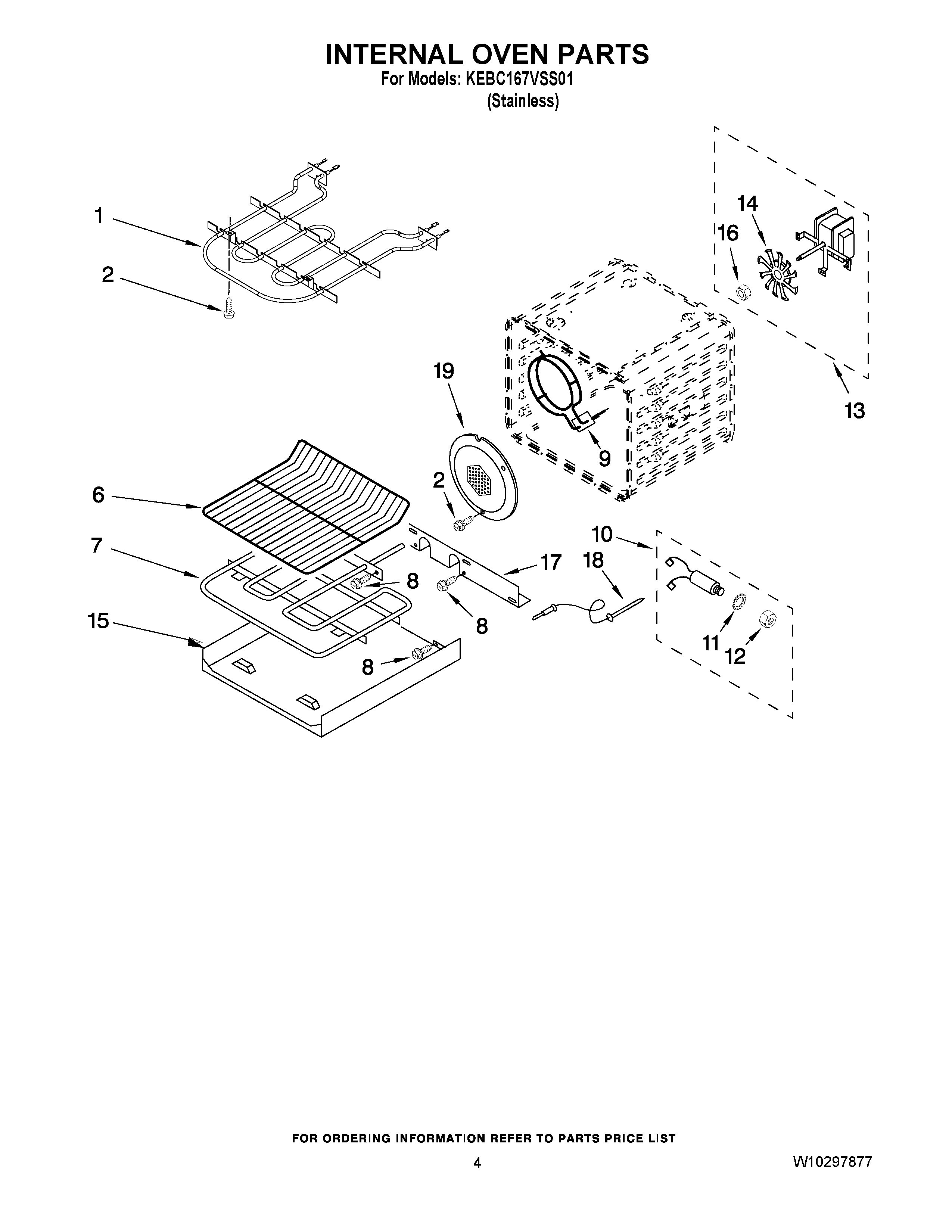

KEBC167VSS01 03 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELMNT-BROL
2	WP4449154 Whirlpool Screw
6	Rack, Oven
7	W10207399 Whirlpool Bake Element
8	WP4449809 Whirlpool Screw
9	WP9760769 Whirlpool Element Assembly
10	8186589 Whirlpool Jack Probe
11	WP9755547 Whirlpool Lockwasher
12	WP9755546 Whirlpool Locknut
13	W10794022 Whirlpool Oven Cooktop Fan Motor
14	W10758272 Whirlpool Convection Fan
15	Tray, Hidden Bake
16	WPW10116349 Whirlpool Nut
17	Cover, Access
18	WP9755542 Whirlpool Oven Meat Probe
19	WPW10160821 Whirlpool Fan Cover
