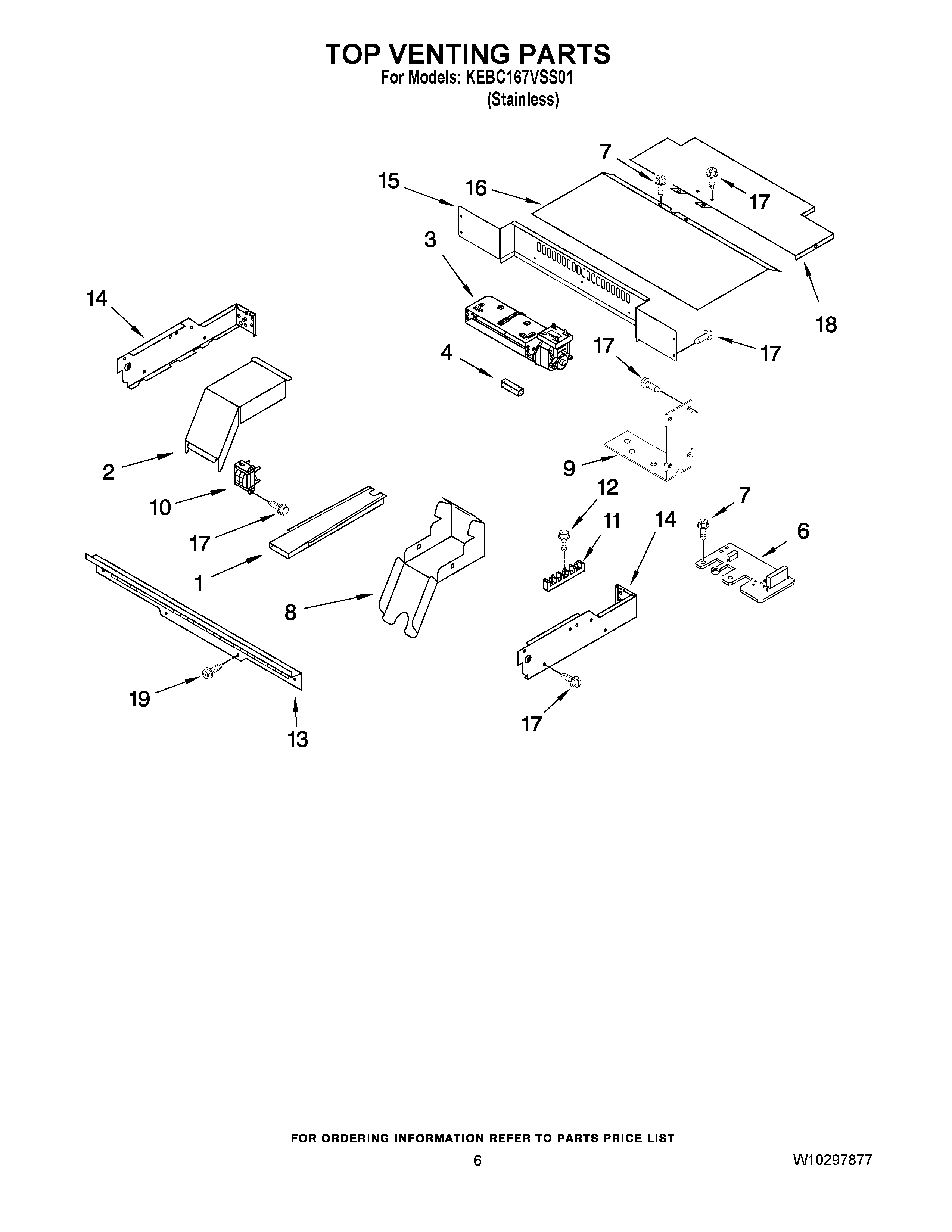

KEBC167VSS01 05 – TOP VENTING PARTS

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
6	WP4451985 Whirlpool Noise Filter Board
8	4455177 Whirlpool Oven Bottom Elbow
9	WP4455352 Whirlpool Mounting Bracket
10	Transformer
11	BLOCK, TERMINAL
12	Screw
13	Vent, (Control Panel)
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	Cover, Top Rear
17	WP4449809 Whirlpool Screw
18	Cover, Top Front
19	WP4450038 Whirlpool Screw
