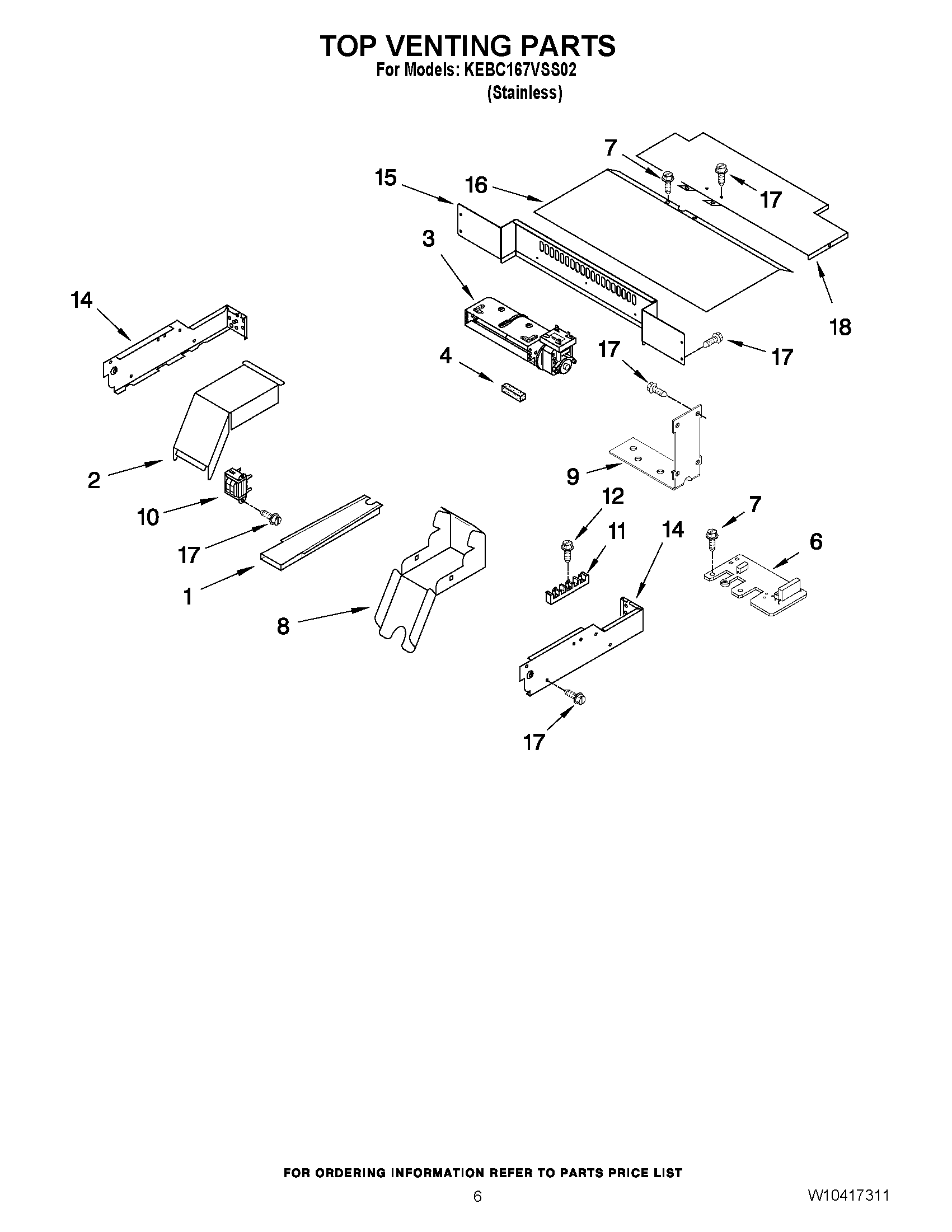

KEBC167VSS02 05 – TOP VENTING PARTS

KEBC167VSS02 05 – TOP VENTING PARTS

Written by

in

KEBC167VSS02 05 – TOP VENTING PARTS

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3W10810687 Whirlpool Blower Assembly
4W10491987 Whirlpool Foam Seal
6WP4451985 Whirlpool Noise Filter Board
84455177 Whirlpool Oven Bottom Elbow
9WP4455352 Whirlpool Mounting Bracket
10Transformer
11BLOCK, TERMINAL
12Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
17SCREW
18Cover, Top Front
