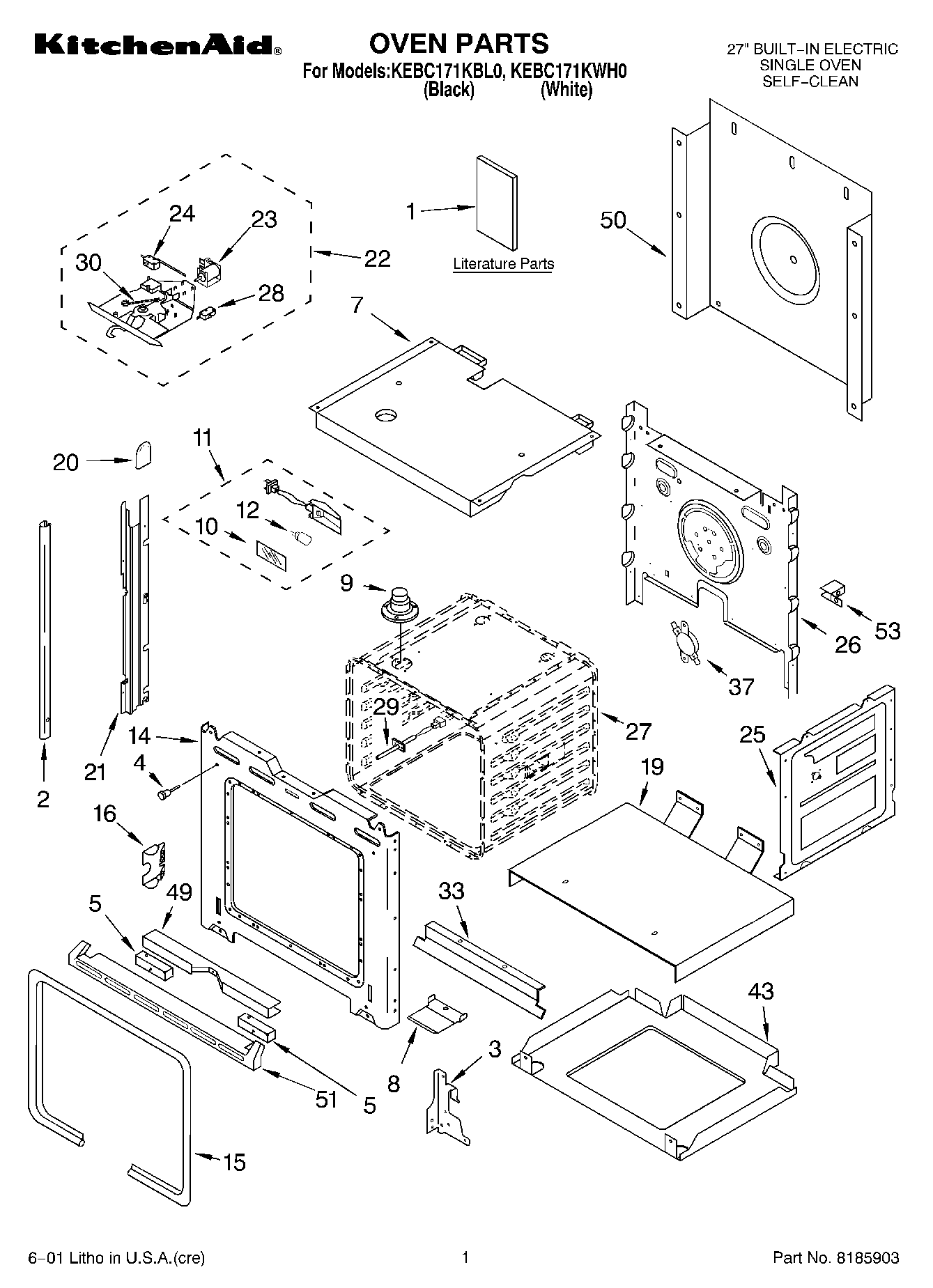

KEBC171KBL0 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation/ Undercounter)
1	Literature Parts (Easy Set Guide)
1	Literature Parts (Installation/ MWO Trim Kit)
1	Literature Parts (Tech Sheet)
2	Trim, Side Left (Black)
2	4455377 Whirlpool Oven Trim
2	Trim, Side (RH White)
2	Trim, Side (LH White)
2	Trim, Side (White)
2	WP8281236 Whirlpool Screw
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	Spacer, Foam
7	Top, Chassis
8	4455807 Whirlpool Oven Vent Deflector
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Lens, Light
11	WP4448972 Whirlpool Oven Light
11	4449748 Whirlpool Oven Screw
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14	Screw
14	Frame, Front
14	WP4450118 Whirlpool Nut
15	WP4455381 Whirlpool Door Gasket
16	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
20	Cap, Spacer
21	WP4448444 Whirlpool Grommet
21	814372 Whirlpool Oven Rail Mount
21	814371 Whirlpool Oven Rail Mount
22	Latch Assembly
23	Solenoid
24	Microswitch N.C.
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
28	Microswitch
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Spring, Latch
33	Deflector, Vent
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
50	WP4449809 Whirlpool Screw
51	Trim, Bottom (White)
51	Trim, Bottom (Black)
51	WP3400832 Whirlpool Screw
53	WPL 4449315
53	WPL 4450364
53	WPL 4449845
