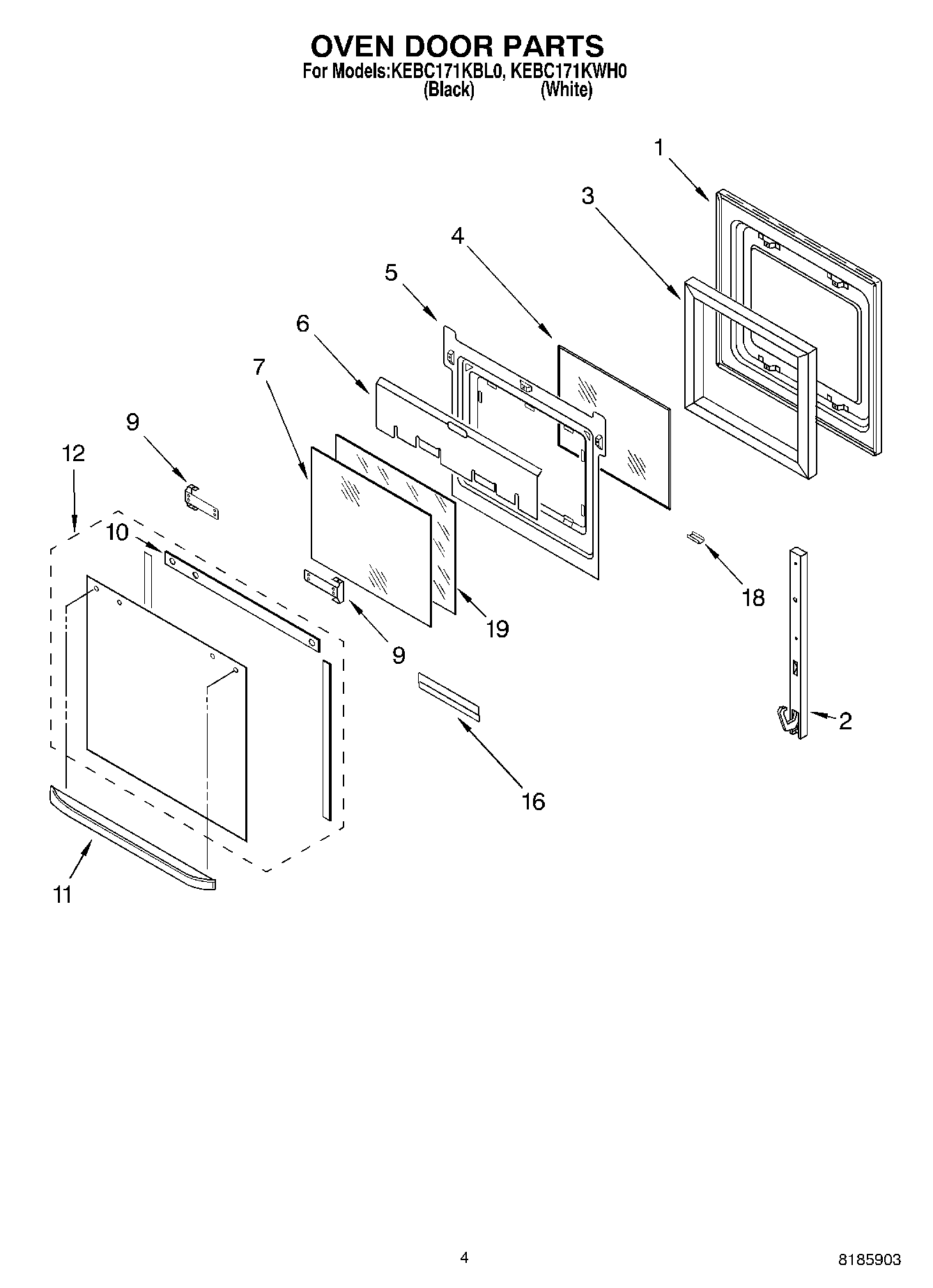

KEBC171KBL0 03 – OVEN DOORadmin2025-04-26T10:31:43+00:00KEBC171KBL0 03 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Door Liner |
| 2 | WP9760571 Whirlpool Door Hinge |
| 2 | WP9760572 Whirlpool Door Hinge |
| 3 | Insulation, Sides |
| 4 | WP4449253 Whirlpool Glass Window |
| 5 | Retainer, Glass |
| 6 | Shield, Heat |
| 7 | WP4449257 Whirlpool Door Glass |
| 9 | Bracket, Handle Stainless Steel Model (Left Hand) |
| 9 | Screw |
| 9 | 4455803 Whirlpool Oven Bracket |
| 10 | Seal, Top |
| 11 | Handle, Door (Black) |
| 11 | Handle, Door (White) |
| 12 | Glass, Outer (Black) |
| 12 | Glass, Outer (White) |
| 16 | WP3400832 Whirlpool Screw |
| 16 | Retainer, Glass |
| 18 | Clip, Retainer (White Model) |
| 18 | Clip, Retainer (Black Model) |
| 18 | WP4449743 Whirlpool Screw |
| 19 | Glass, Inner |
