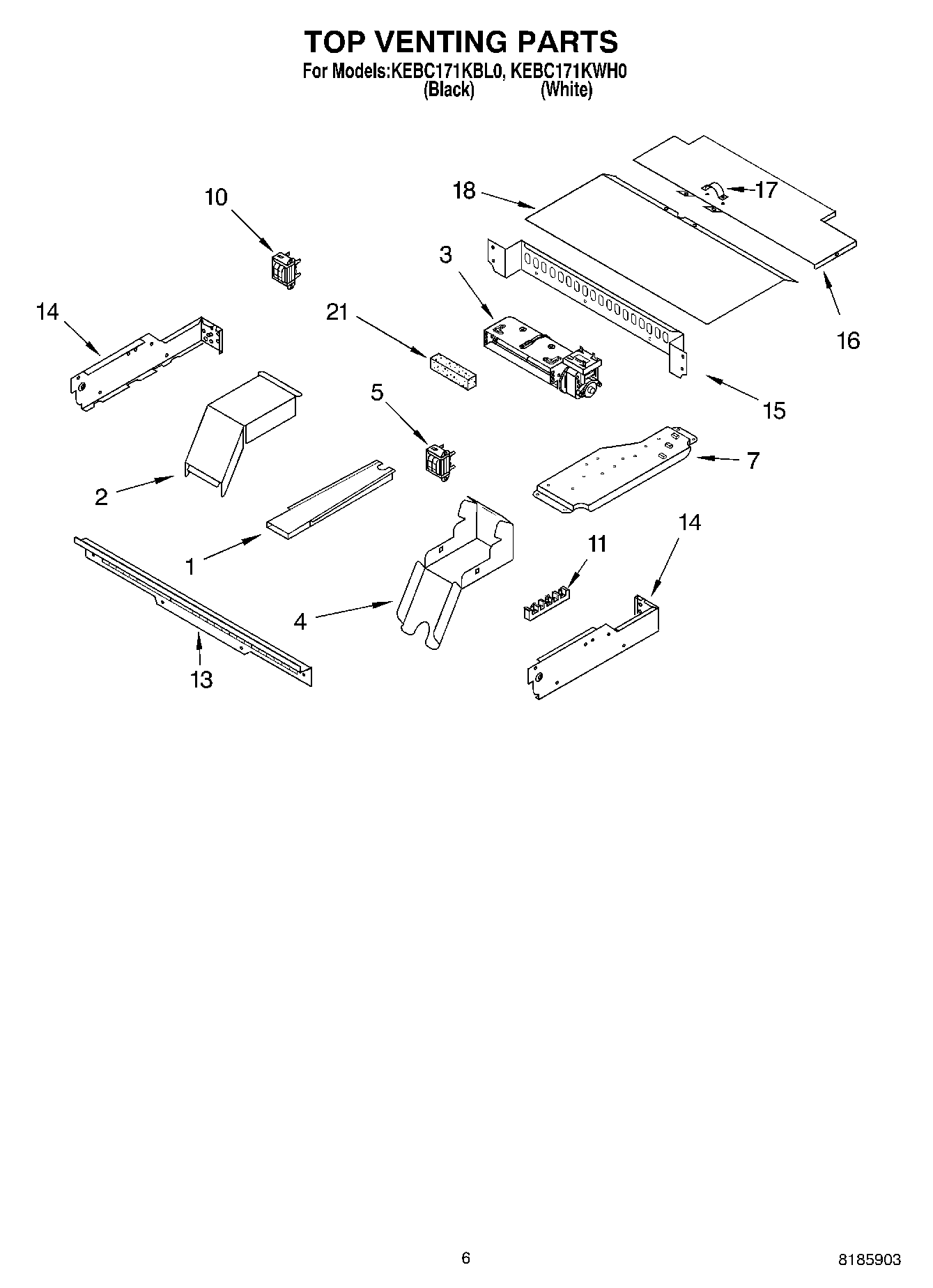

KEBC171KBL0 05 – TOP VENTING

KEBC171KBL0 05 – TOP VENTING

Written by

in

KEBC171KBL0 05 – TOP VENTING

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
1Screw
24455178 Whirlpool Oven Top Elbow
3WP4455352 Whirlpool Mounting Bracket
3Blower
44455177 Whirlpool Oven Bottom Elbow
5WP9760588 Whirlpool Transformer
7Plate, Mounting
10Transformer, Control
11Screw
11WP8203546 Whirlpool Terminal Block
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
18Cover, Top Front
21WPL 591014
21Wire, 25` Roll (Red 14 Ga.)
21Wire (14 Ga. 200 c Brown)
2118 Ga. 80~c Rating (Red)
21Wire (12 Ga. 150 c Black)
21WP4450952 Whirlpool Conduit
214451761 Whirlpool Oven Support Bracket
21261900 Whirlpool Microwave Spray
211
21Wire (14 Ga. 150 c Yellow)
21Wire (14 Ga. 150 c Orange)
21WPW10339879 Whirlpool Wire Tie
214450800 Whirlpool Oven Screw
214448664 Whirlpool Oven Mounting Bracket
21Wire, 25“ Roll (White 14 GA.)
21Wire, 25` Roll (Black 14 Ga.)
21WP112432 Whirlpool Nut Assembly
21W10491987 Whirlpool Foam Seal
21WP4449809 Whirlpool Screw
2172017 Whirlpool Appliance Touch-Up Paint White
21285006 Whirlpool Spray
2172032 Whirlpool Touch Up Paint Black
21WP482338 Whirlpool Refrigerator Adhesive
21Wire (14 Ga. 150 c Green)
21Wire (14 Ga. 150 c Brown)
21Wire (14 Ga. 150 c Blue)
21WP261869 Whirlpool Microwave Paint
21242831 Whirlpool Oven Wire
21Spacer, Harness
21WP4448950 Whirlpool Screw
21Harness, Wire (Main)
21814381 Whirlpool Pin
21350930 Whirlpool White Spray Paint
