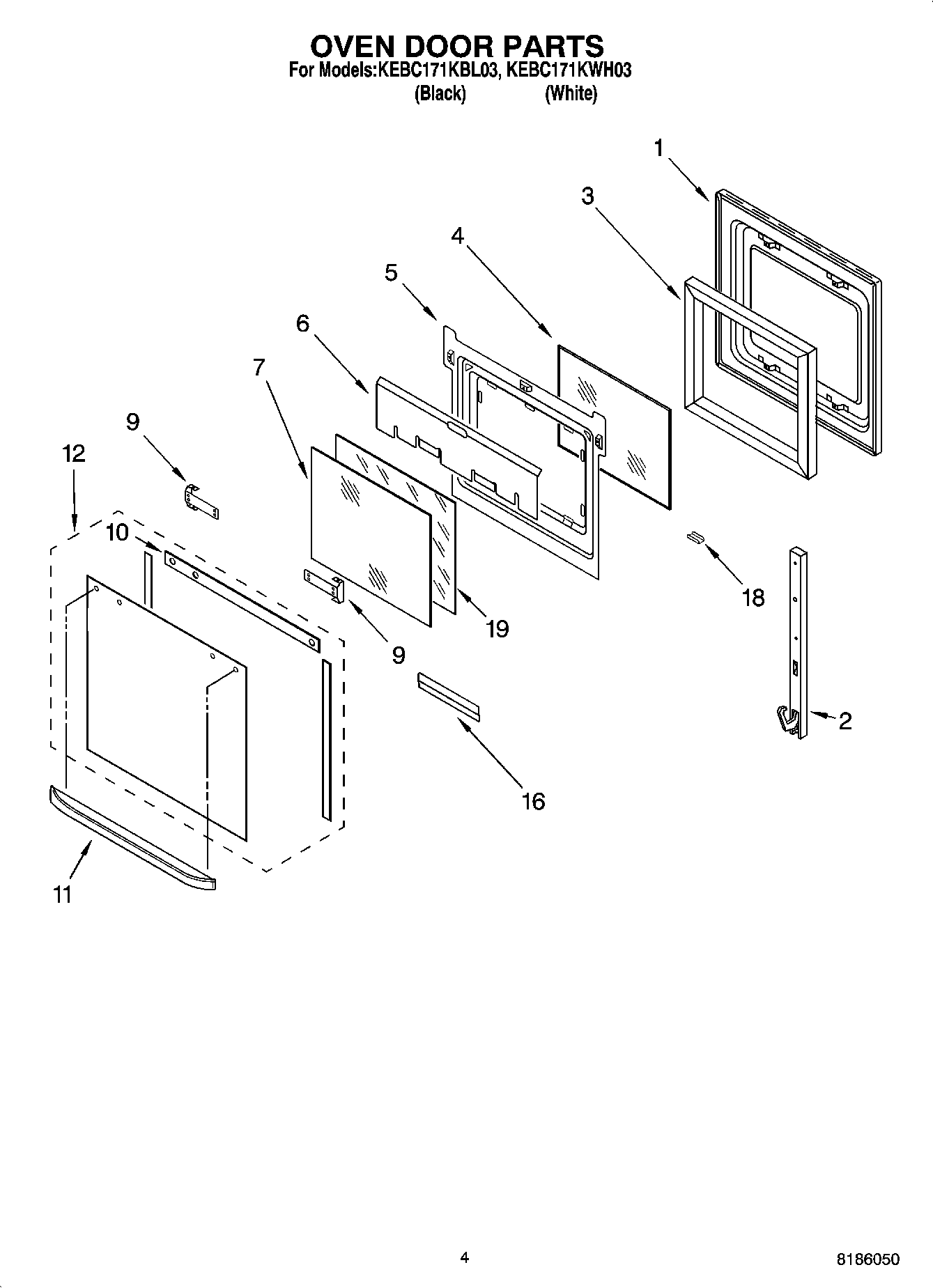

KEBC171KBL03 03 – OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Door Liner
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
3	Insulation, Sides
4	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Shield, Heat
7	WP4449257 Whirlpool Door Glass
9	4455803 Whirlpool Oven Bracket
9	Bracket, Handle (L.Hand)
9	WPW10132940 Whirlpool Dishwasher Screw
10	Seal, Top
11	Handle, Door (White)
11	Handle, Door (Black)
12	Glass, Outer (Black)
12	Glass, Outer (White)
16	Retainer, Glass
16	WP3400832 Whirlpool Screw
18	Clip, Retainer (Black Model)
18	Clip, Retainer (White Model)
18	WP4449743 Whirlpool Screw
19	Glass. Inner
