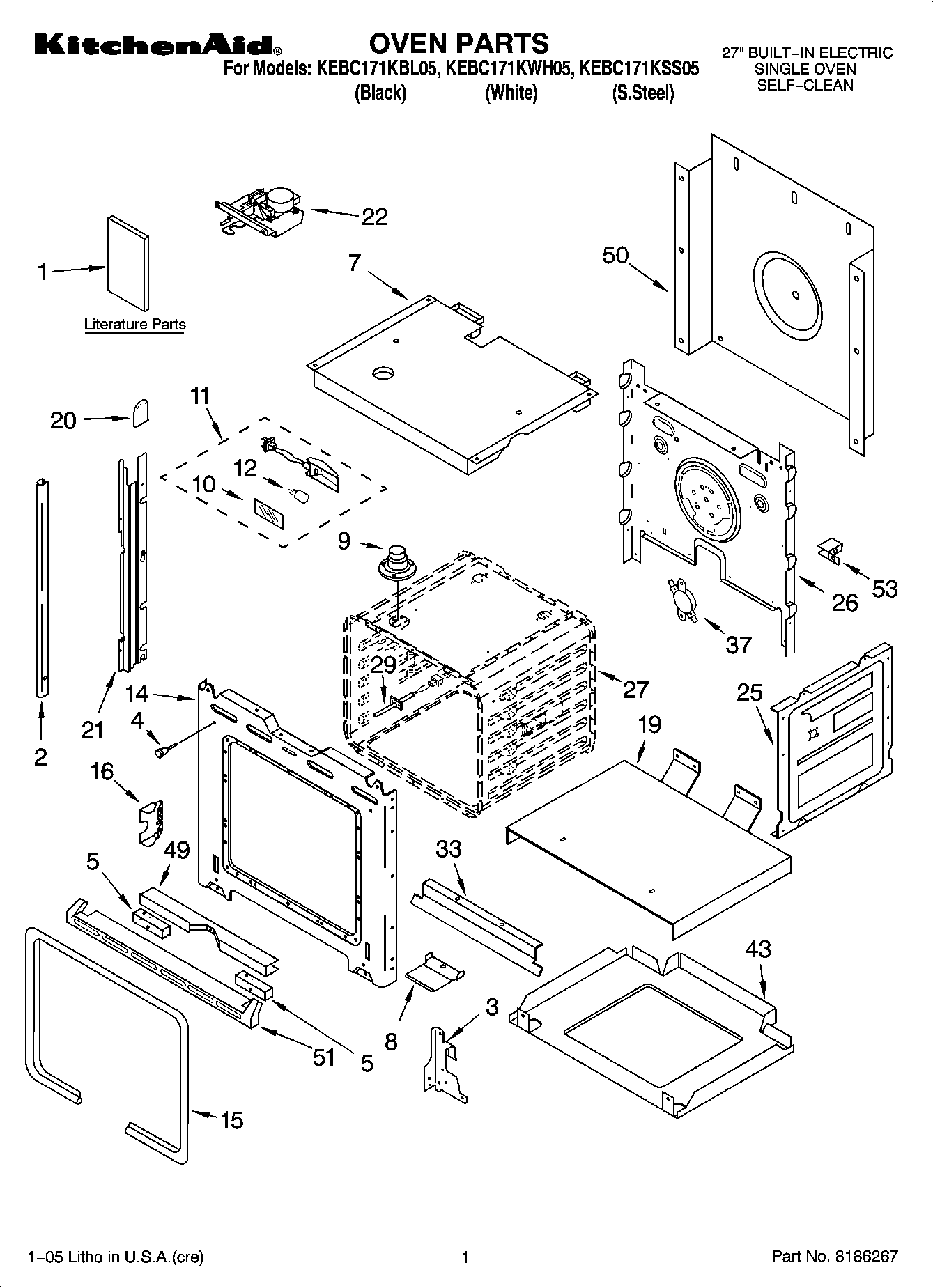

KEBC171KBL05 01 – OVEN PARTS

KEBC171KBL05 01 – OVEN PARTS

Written by

in

KEBC171KBL05 01 – OVEN PARTS

Products

PositionProduct
1Installation, MWO Trim Kit
1Easy Set Guide
1Safe Cooking Tips
1Installation Instructions
1Use & Care Guide
1Tech Sheet
1Installation/ Undercounter
2W10144984 Whirlpool Trim
24455377 Whirlpool Oven Trim
2WPW10144983 Whirlpool Trim
2Trim, Side (RH White)
2Trim, Side (LH White)
2WP8281236 Whirlpool Screw
2Trim, Side Left (Black)
2Trim, Side (White)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
7Top, Chassis
84455807 Whirlpool Oven Vent Deflector
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15WP4455381 Whirlpool Door Gasket
164452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21814372 Whirlpool Oven Rail Mount
21814371 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51WPL 4455146
51Trim, Bottom (White)
51Trim, Bottom (Black)
51WP3400832 Whirlpool Screw
53WPL 4449315
53WPL 4450364
53WPL 4449845
53WPL ARI81678A5
