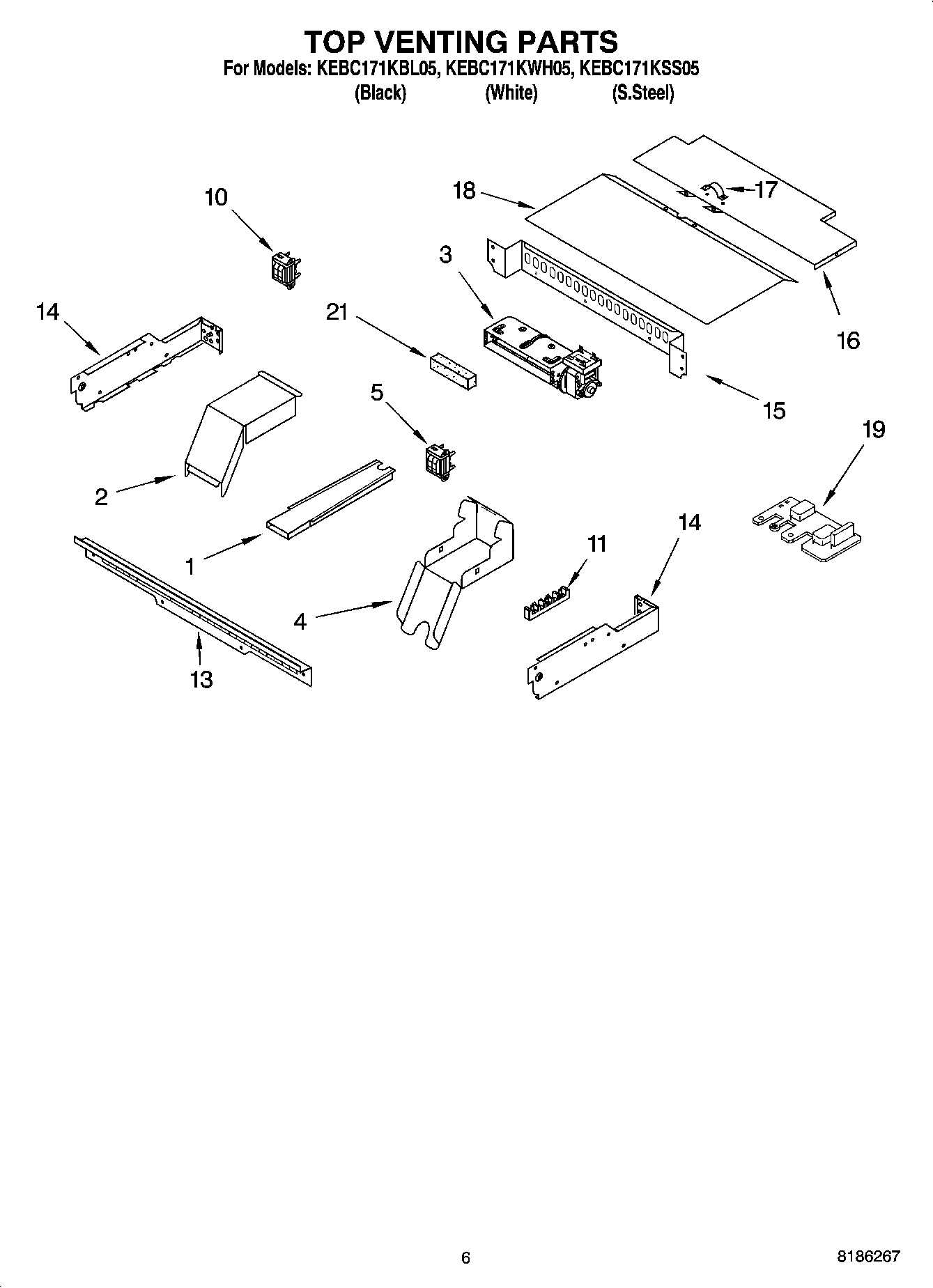

KEBC171KBL05 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI81681A6
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	WPL 591014
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	4451761 Whirlpool Oven Support Bracket
	WPL ARI81682A1
	WP4450952 Whirlpool Conduit
	261900 Whirlpool Microwave Spray
	Harness, Wire (Main)
	WPL ARI81679A2
	WPL ARI81680A4
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	4448664 Whirlpool Oven Mounting Bracket
	4450800 Whirlpool Oven Screw
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	Spacer, Harness
	WP4448950 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
1	4451759 Whirlpool Oven Exhaust Vent
1	Screw
2	4455178 Whirlpool Oven Top Elbow
3	WPW10176670 Whirlpool Blower
4	4455177 Whirlpool Oven Bottom Elbow
5	WP9760588 Whirlpool Transformer
10	Transformer, Control
11	Screw
11	WP8203546 Whirlpool Terminal Block
13	Vent, (Control Panel)
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	Cover, Top Rear
18	Cover, Top Front
19	WP4451985 Whirlpool Noise Filter Board
21	W10491987 Whirlpool Foam Seal
