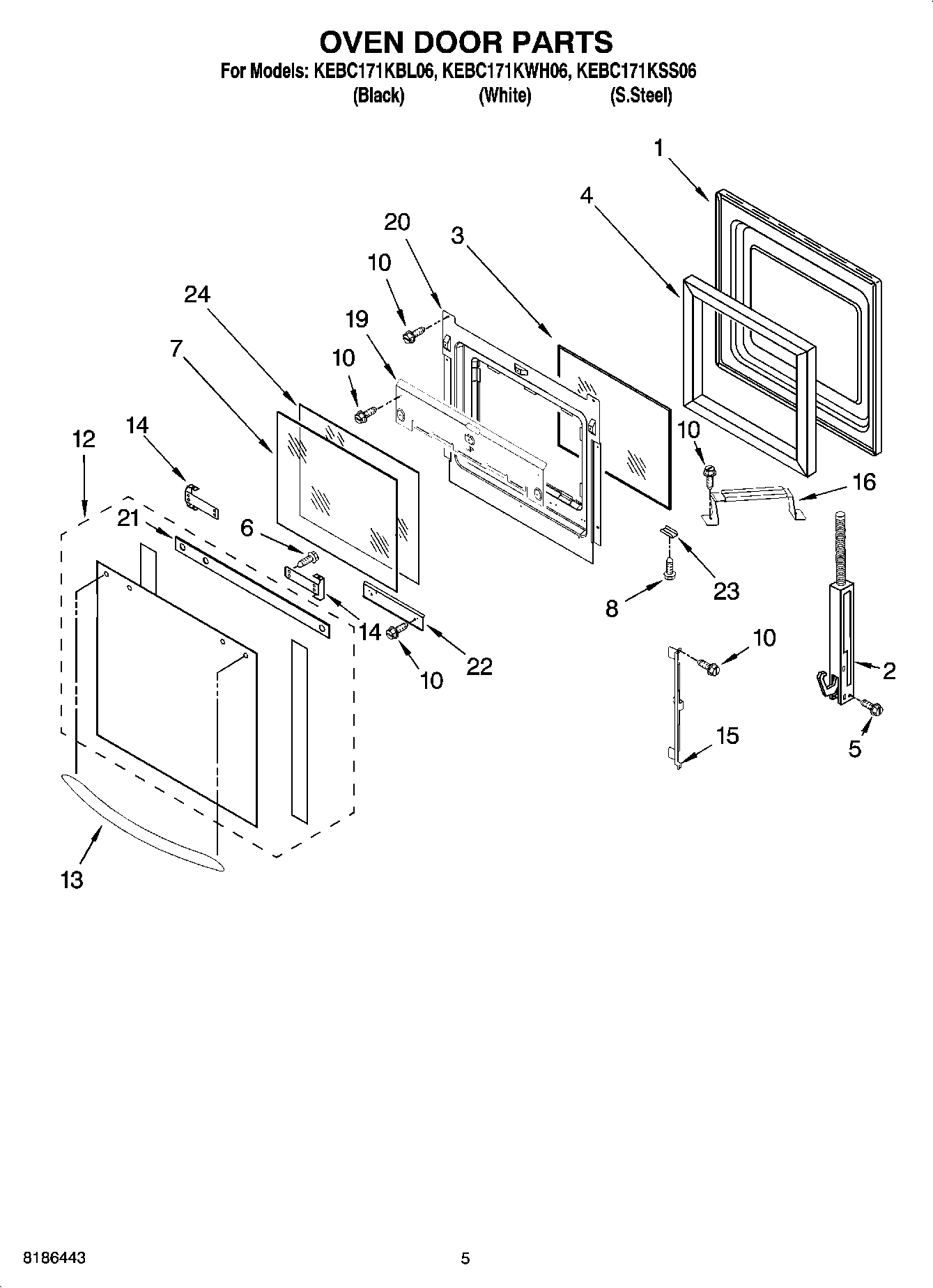

KEBC171KBL06 04 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760576 Whirlpool Door Hinge (Left)
2	WP9760571 Whirlpool Door Hinge
2	HINGE-DOOR
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	WP4449743 Whirlpool Screw
6	WPW10132940 Whirlpool Dishwasher Screw
7	WP9759227 Whirlpool Glass Door
8	WP3400832 Whirlpool Screw
10	WP4449809 Whirlpool Screw
12	WP4452315 Whirlpool Door Glass
12	Glass, Outer (Black)
12	Glass, Outer (White)
13	Handle, Door (Black)
13	Handle (S.Steel)
13	Handle, Door (White)
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
20	Retainer, Glass
21	Seal, Top
22	Shield, Heat (Bottom)
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	Glass, Inner
