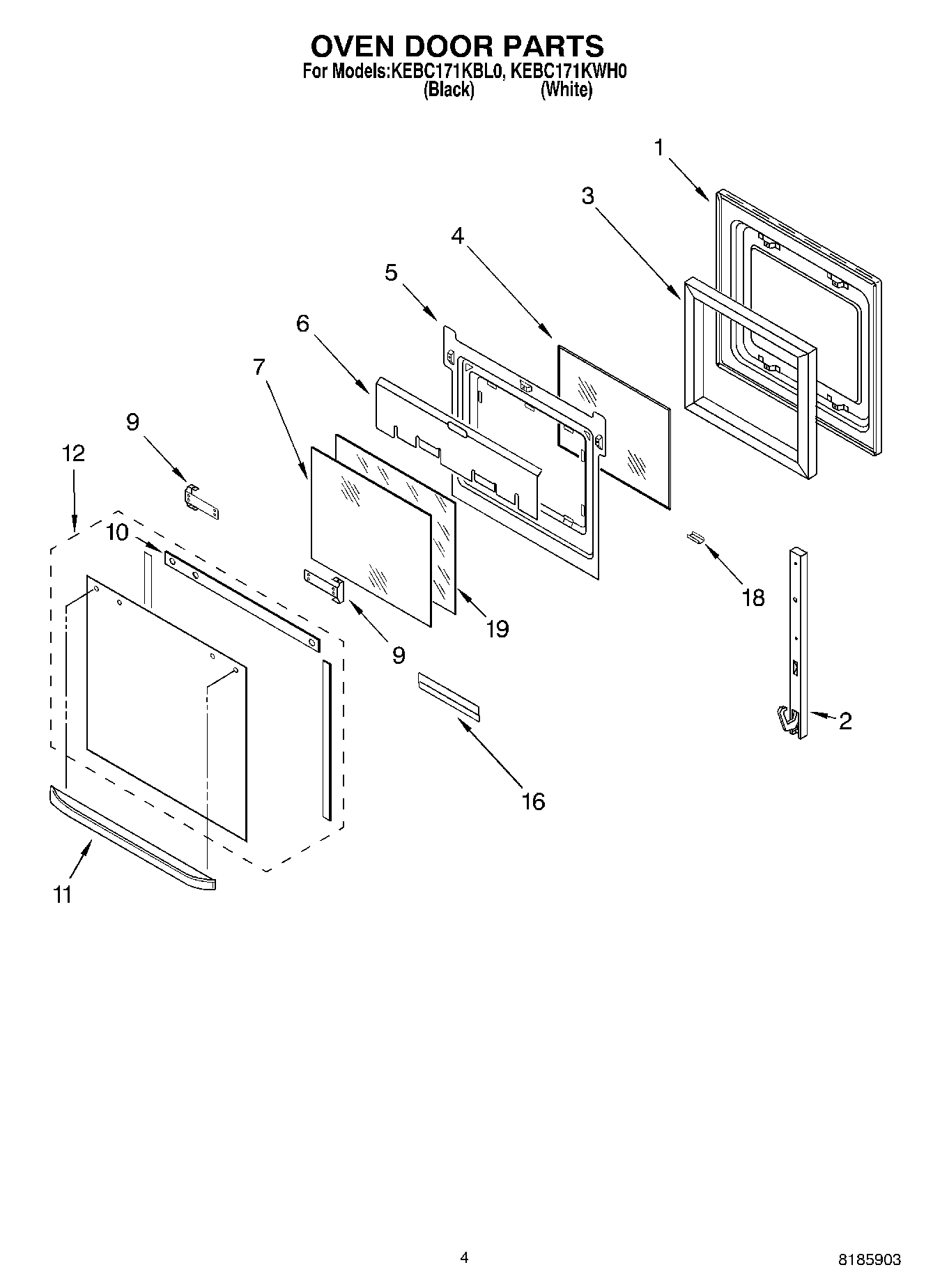

KEBC171KWH0 03 – OVEN DOOR

Products

PositionProduct
1Door Liner
2WP9760571 Whirlpool Door Hinge
2WP9760572 Whirlpool Door Hinge
3Insulation, Sides
4WP4449253 Whirlpool Glass Window
5Retainer, Glass
6Shield, Heat
7WP4449257 Whirlpool Door Glass
9Bracket, Handle Stainless Steel Model (Left Hand)
9Screw
94455803 Whirlpool Oven Bracket
10Seal, Top
11Handle, Door (Black)
11Handle, Door (White)
12Glass, Outer (Black)
12Glass, Outer (White)
16WP3400832 Whirlpool Screw
16Retainer, Glass
18Clip, Retainer (White Model)
18Clip, Retainer (Black Model)
18WP4449743 Whirlpool Screw
19Glass, Inner
