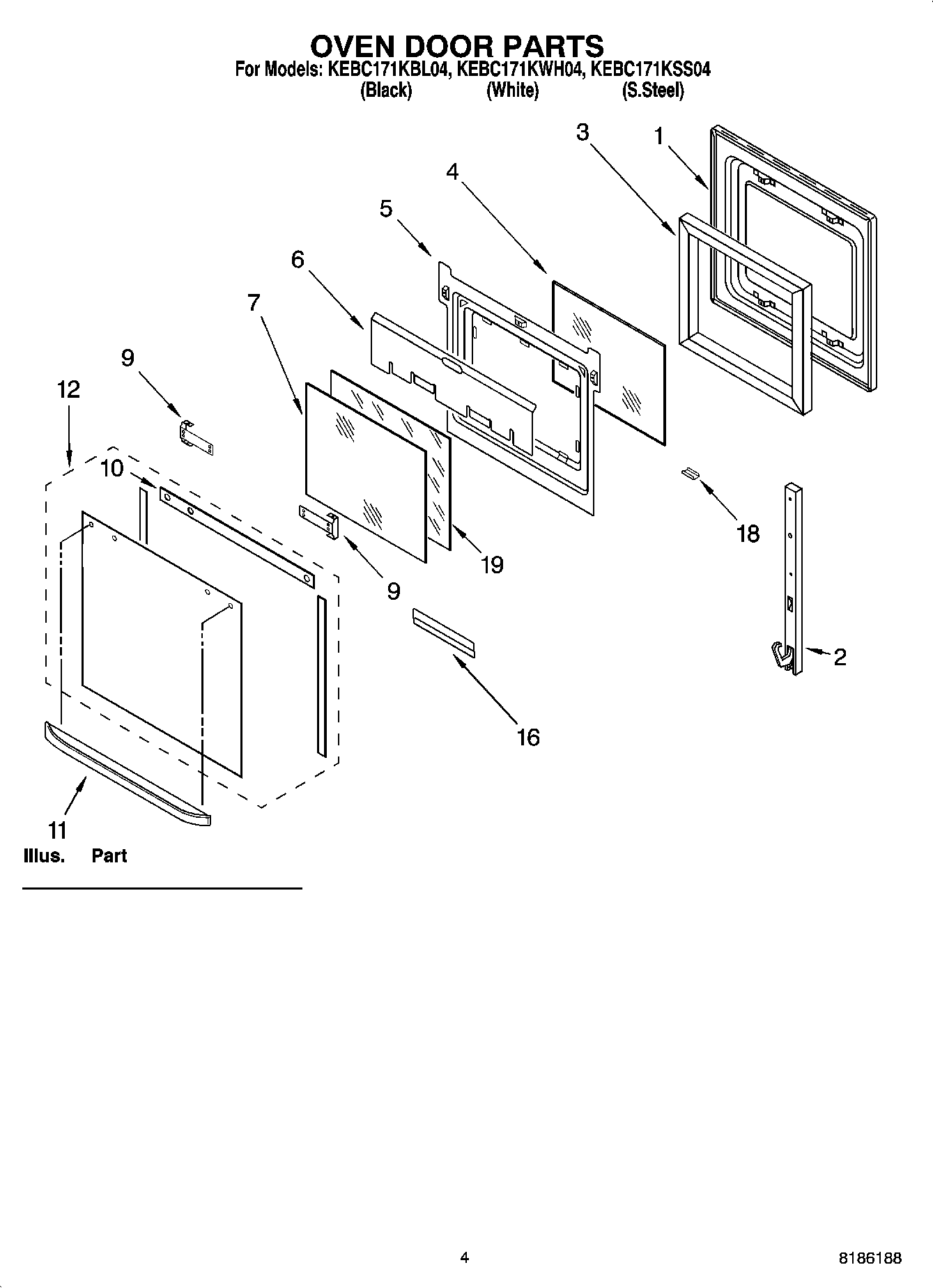

KEBC171KWH04 03 – OVEN DOOR PARTSadmin2025-04-26T10:34:03+00:00KEBC171KWH04 03 – OVEN DOOR PARTS
Products
| Position | Product |
|---|
| NOTE: The screws and nuts required to attach a part are listed immediately following that part. |
| 1 | Door Liner |
| 2 | WP9760572 Whirlpool Door Hinge |
| 2 | HINGE-DOOR |
| 2 | HINGE-DOOR LH/SS DOOR SPRING |
| 2 | WP9760571 Whirlpool Door Hinge |
| 3 | Insulation, Sides |
| 4 | WP4449253 Whirlpool Glass Window |
| 5 | Retainer, Glass |
| 6 | Shield, Heat |
| 7 | WP4449257 Whirlpool Door Glass |
| 9 | Bracket, Handle (L.Hand) |
| 9 | WPW10132940 Whirlpool Dishwasher Screw |
| 9 | 4455803 Whirlpool Oven Bracket |
| 10 | Seal, Top |
| 11 | Handle (S.Steel) |
| 11 | Handle, Door (White) |
| 11 | Handle, Door (Black) |
| 12 | Glass, Outer (Black) |
| 12 | Glass, Outer (White) |
| 12 | WP4452315 Whirlpool Door Glass |
| 16 | Retainer, Glass |
| 16 | WP3400832 Whirlpool Screw |
| 18 | Clip, Retainer (Black Model) |
| 18 | Clip, Retainer (White Model) |
| 18 | WP4449743 Whirlpool Screw |
| 19 | Glass. Inner |
