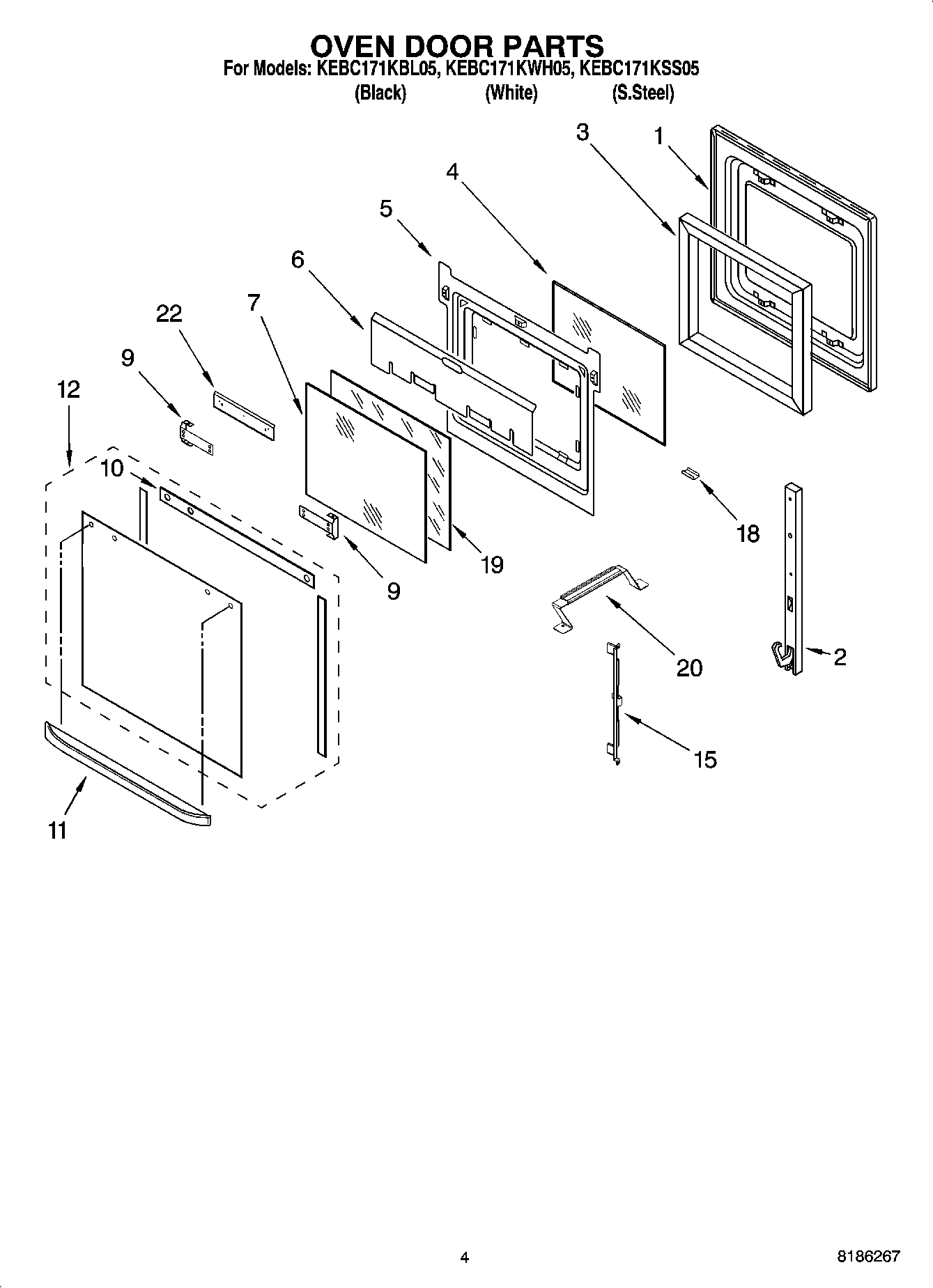

KEBC171KWH05 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	HINGE-DOOR
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
3	Insulation, Sides
4	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Shield, Heat
6	WP3400832 Whirlpool Screw
7	Glass, Inner
9	4455803 Whirlpool Oven Bracket
9	Bracket, Handle (L.Hand)
9	WPW10132940 Whirlpool Dishwasher Screw
10	Seal, Top
11	Handle, Door (Black)
11	Handle (S.Steel)
11	Handle, Door (White)
12	Glass, Outer (Black)
12	WP4452315 Whirlpool Door Glass
12	Glass, Outer (White)
15	WP9759229 Whirlpool Mounting Bracket
18	Clip, Retainer (White Model)
18	Clip, Retainer (Black Model)
18	WP4449743 Whirlpool Screw
19	WP9759227 Whirlpool Glass Door
20	Bracket (3rd Glsss)
22	Shield, Heat (Bottom)
