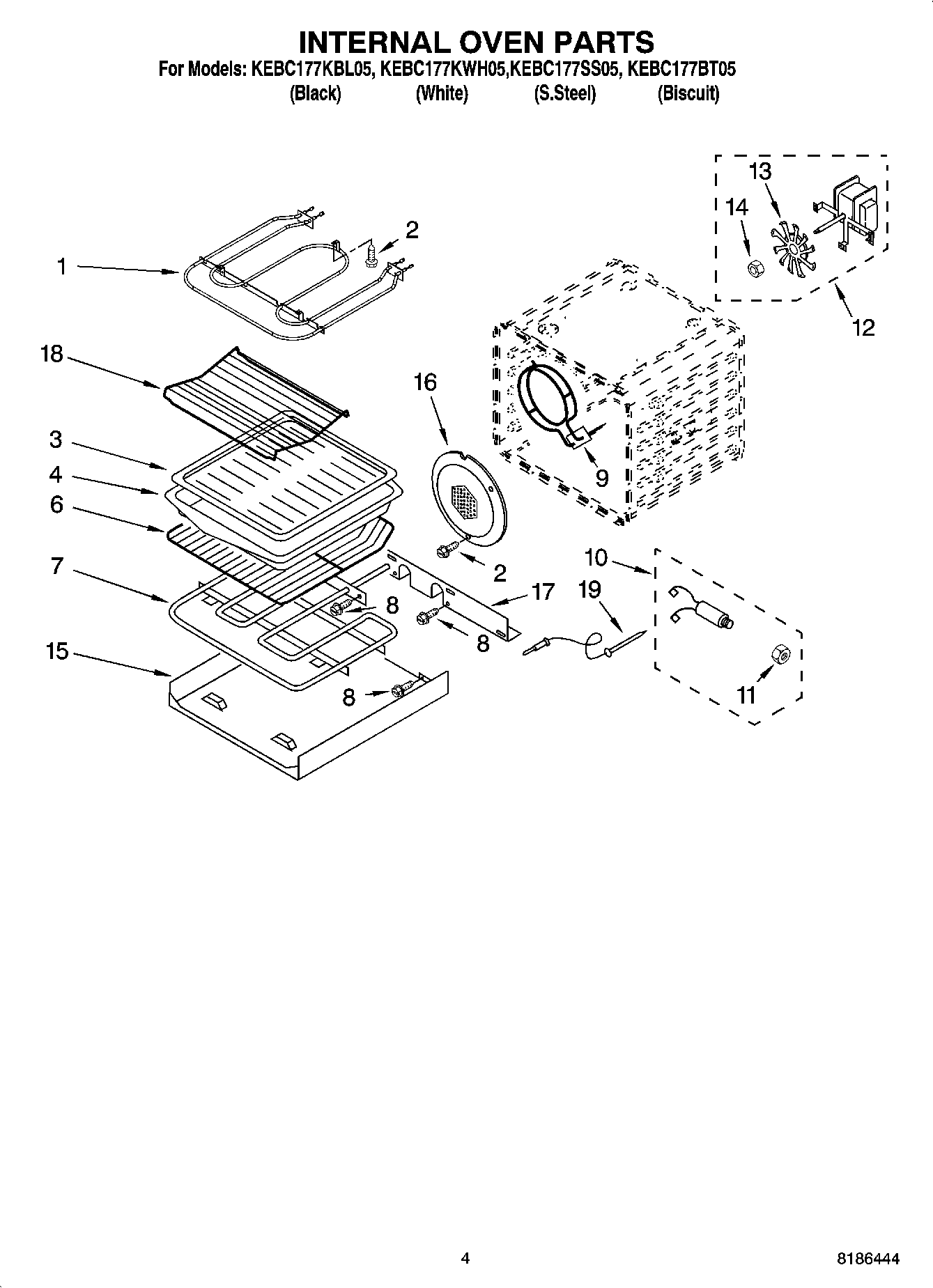

KEBC177BT05 03 – INTERNAL OVEN PARTS

Products

Position	Product
1	WPW10207400 Whirlpool Broil Element
2	WP4449154 Whirlpool Screw
3	WP3195996 Whirlpool Pan Grid
4	W10737569 Whirlpool Broil Pan
6	Rack, Oven
7	4451175 Whirlpool Bake Element
8	WP4449809 Whirlpool Screw
9	WP9760769 Whirlpool Element Assembly
10	8186589 Whirlpool Jack Probe
11	WP9755546 Whirlpool Locknut
12	Motor Convection
13	WP4452226 Whirlpool Convection Fan
14	Nut
15	Tray, Hidden Bake
16	WPW10160821 Whirlpool Fan Cover
17	4450039 Whirlpool Oven Access Cover
18	Rack, Roasting
19	WP9755542 Whirlpool Oven Meat Probe
