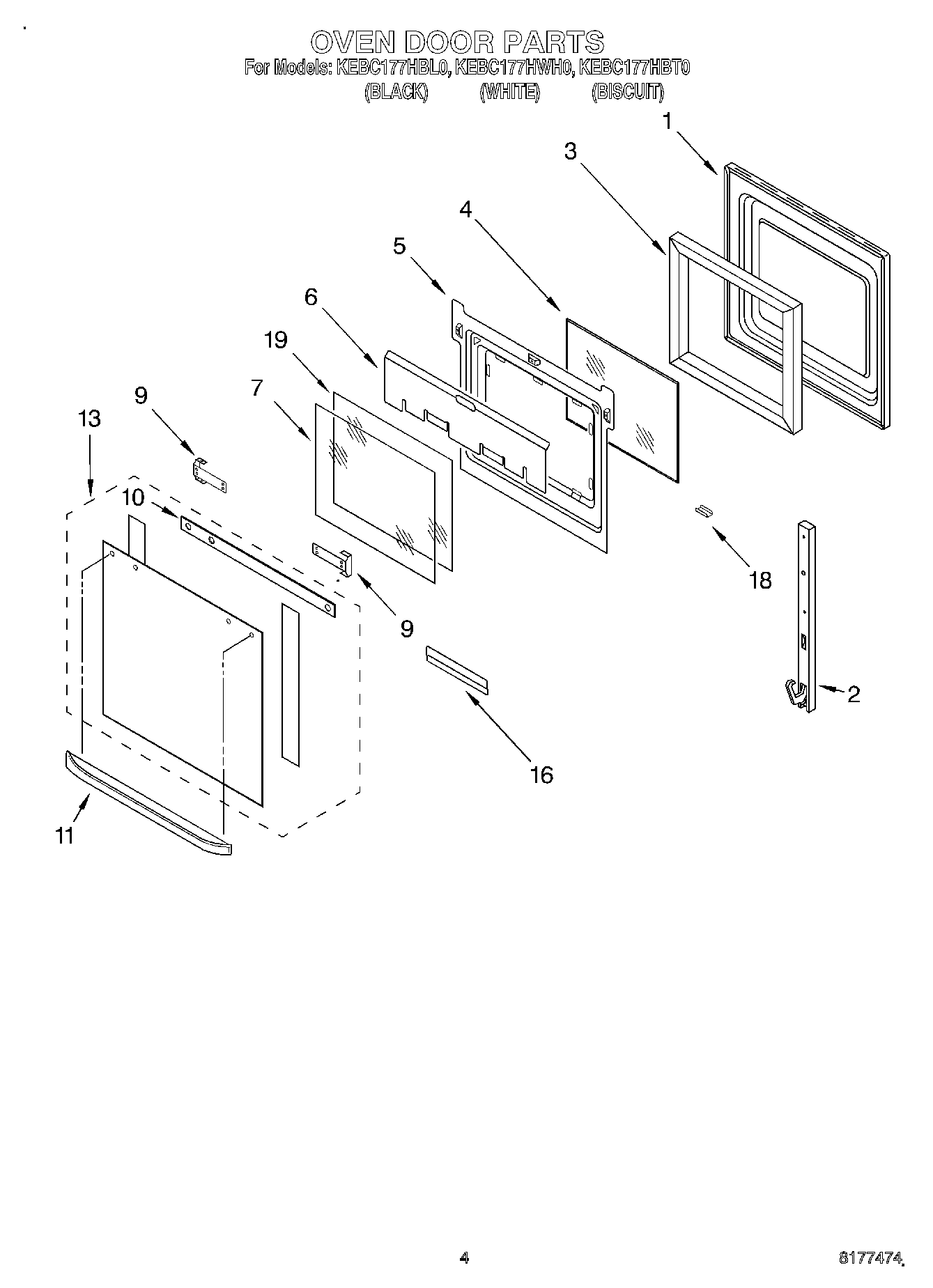

KEBC177HBL0 03 – OVEN DOOR

Products

PositionProduct
1Door Liner
2WP4455525 Whirlpool Oven Door Hinge
2WP4449743 Whirlpool Screw
3Insulation, Sides
4WP4449253 Whirlpool Glass Window
5Retainer, Glass
6Shield, Heat
7WP4449257 Whirlpool Door Glass
94455803 Whirlpool Oven Bracket
9Screw
9Bracket, Handle (Left Hand)
10Seal, Top
11Handle, Door (Black)
11Handle, Door (Biscuit)
11Handle, Door (White)
13Glass, Outer (White)
13Glass, Outer (Black)
13Door Glass, Assy (Biscuit)
16WP4449809 Whirlpool Screw
16Retainer, Glass
18RETAINER,GLASS CLIP (BISCUIT)
18Clip, Retainer (White Model)
18Clip, Retainer (Black Model)
19Glass, Inner
