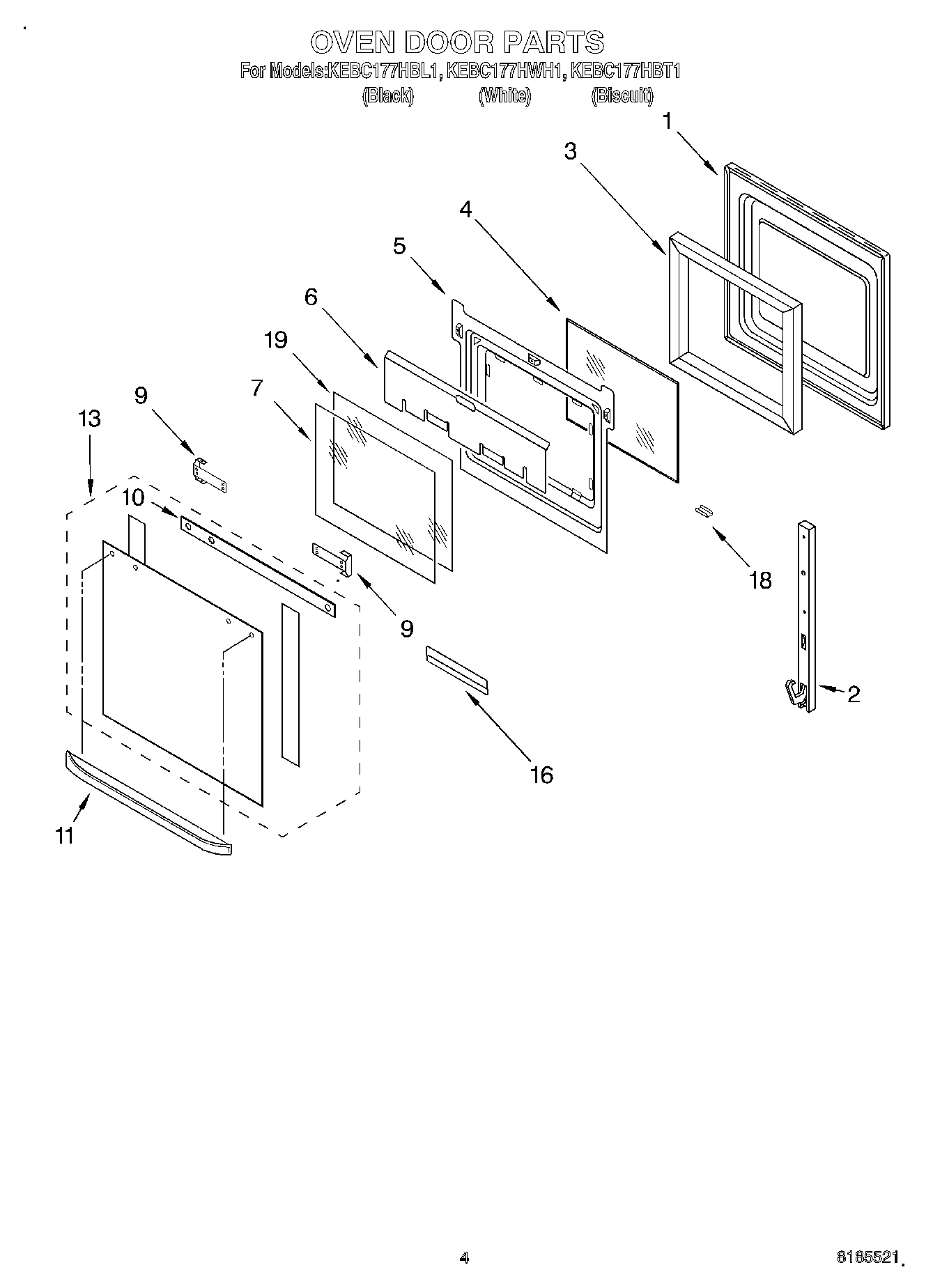

KEBC177HBL1 03 – OVEN DOORadmin2025-04-26T10:31:04+00:00KEBC177HBL1 03 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Door Liner |
| 2 | WP4455525 Whirlpool Oven Door Hinge |
| 2 | WP4449743 Whirlpool Screw |
| 3 | Insulation, Sides |
| 4 | WP4449253 Whirlpool Glass Window |
| 5 | Retainer, Glass |
| 6 | Shield, Heat |
| 7 | WP4449257 Whirlpool Door Glass |
| 9 | Bracket, Handle Stainless Steel Model (Left Hand) |
| 9 | 4455803 Whirlpool Oven Bracket |
| 9 | Screw |
| 10 | Seal, Top |
| 11 | Handle, Door (White) |
| 11 | Handle, Door (Biscuit) |
| 11 | Handle, Door (Black) |
| 13 | Glass, Outer (White) |
| 13 | Glass, Outer (Black) |
| 13 | Door Glass, Assy (Biscuit) |
| 16 | Retainer, Glass |
| 16 | WP4449809 Whirlpool Screw |
| 18 | RETAINER,GLASS CLIP (BISCUIT) |
| 18 | Clip, Retainer (White Model) |
| 18 | Clip, Retainer (Black Model) |
| 19 | Glass, Inner |
