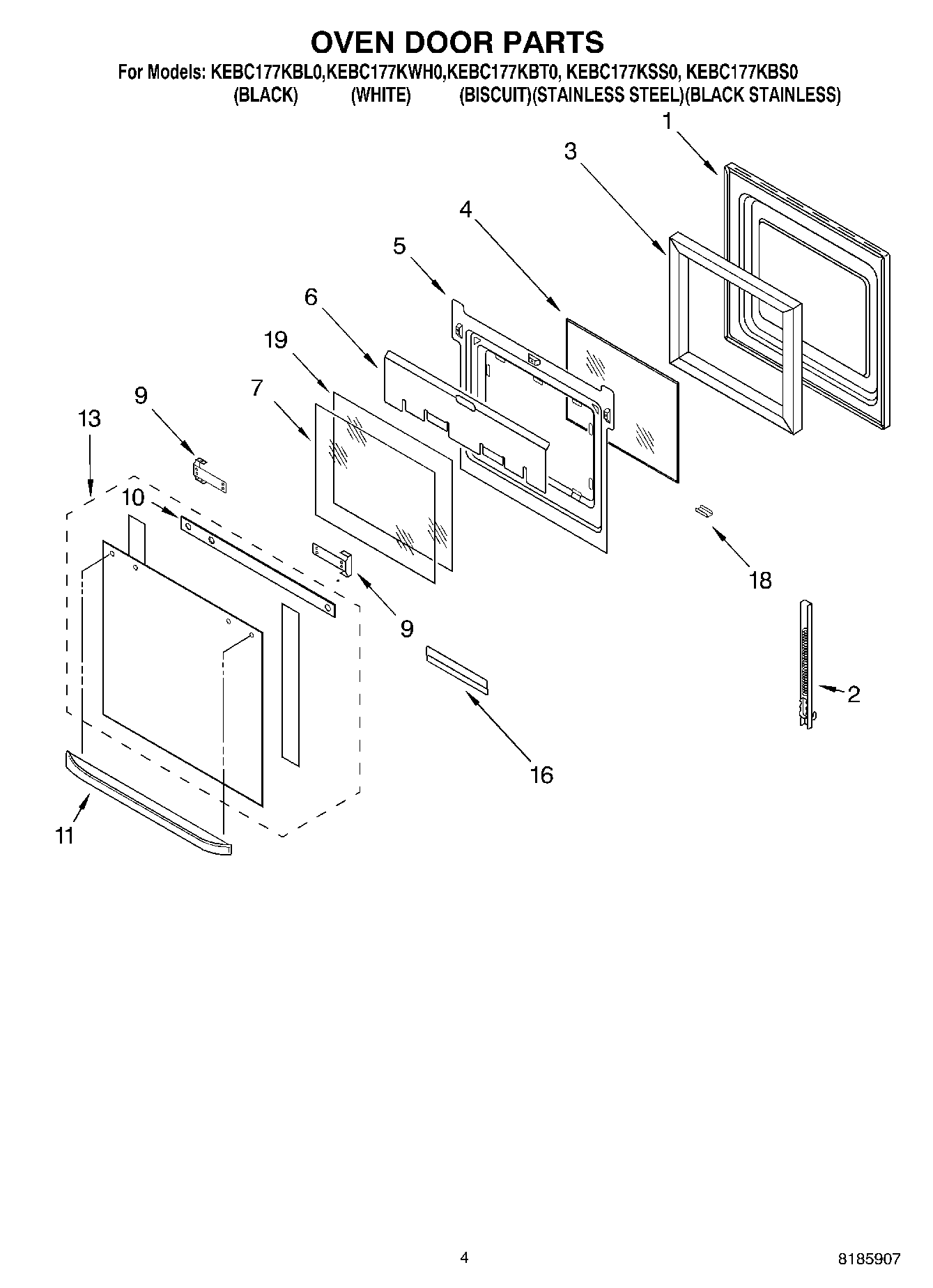

KEBC177KBL0 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	HINGE-DOOR
2	WP4449743 Whirlpool Screw
2	HINGE-DOOR LH/SS DOOR SPRING
3	Insulation, Sides
4	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Shield, Heat
7	WP4449257 Whirlpool Door Glass
9	Screw
9	4455803 Whirlpool Oven Bracket
9	Bracket, Handle (L.Hand)
9	Bracket, Handle Stainless Steel Model (Left Hand)
10	Seal, Top
11	Handle, Door (Black)
11	Door Handle (Stainless Steel)
11	Handle, Door (Biscuit)
11	Handle, Door (White)
13	WP4452315 Whirlpool Door Glass
13	Glass, Outer (White)
13	Glass, Outer (Black)
13	Door Glass, Assy (Biscuit)
16	WP4449809 Whirlpool Screw
16	Retainer, Glass
18	RETAINER,GLASS CLIP (BISCUIT)
18	Clip, Retainer (White Model)
18	Clip, Retainer (Black Model)
18	WP3400832 Whirlpool Screw
18	Retainer, Glass-Clip (Stainless Steel)
19	Glass, Inner
