KEBC177KBL1 01 – OVEN, LITERATURE

KEBC177KBL1 01 – OVEN, LITERATURE

Written by

in

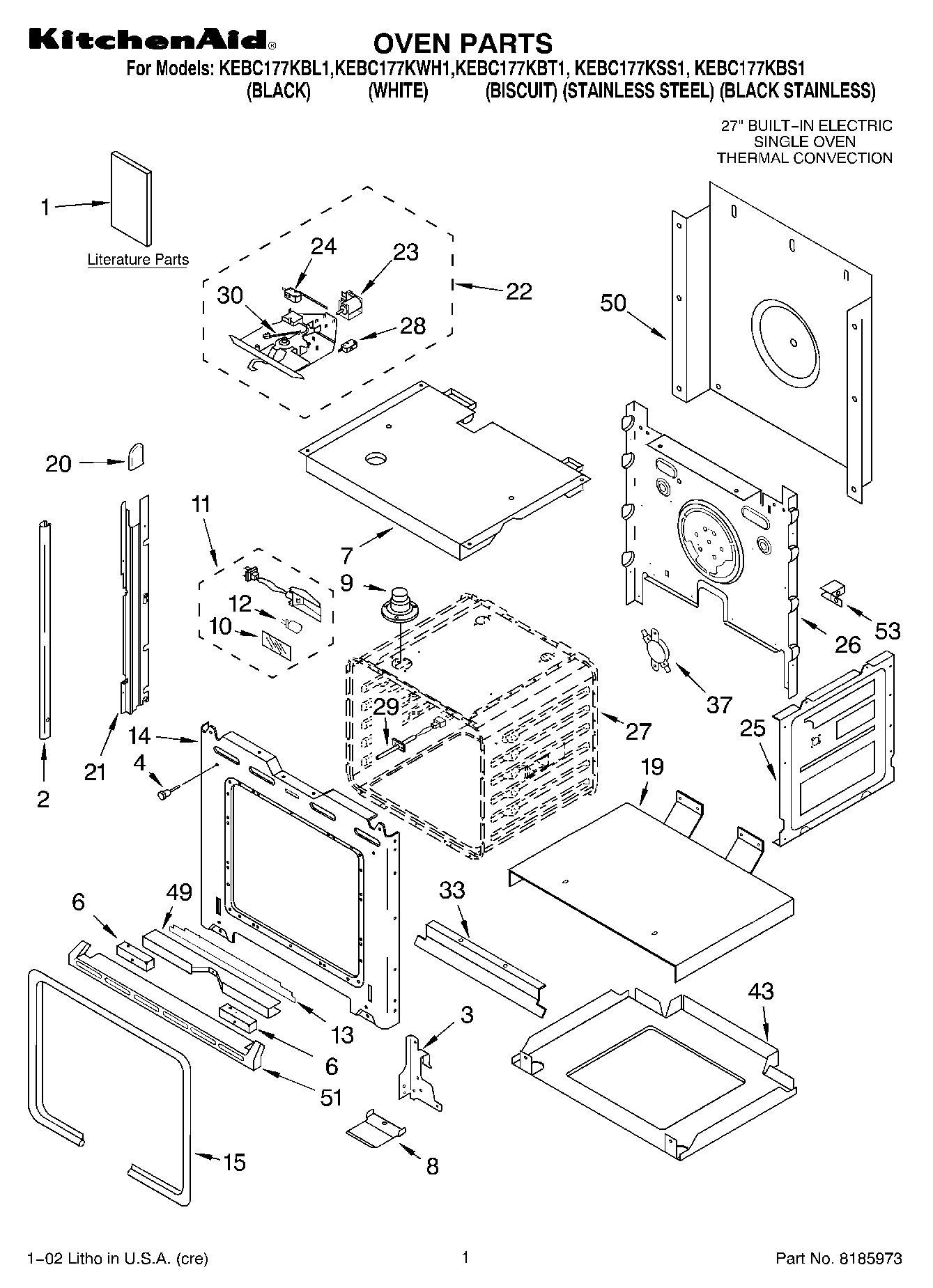

KEBC177KBL1 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Tech Sheet)
1Literature Parts (Installation/ MWO Trim Kit)
1Literature Parts (Easy Set Guide)
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation/ Undercounter)
1Literature Parts (Installation Instructions)
2Trim, Side (RH White)
2Trim, Side Left (Black)
2WP3400832 Whirlpool Screw
2WPW10144983 Whirlpool Trim
2W10144984 Whirlpool Trim
24455377 Whirlpool Oven Trim
2Trim, Side (LH White)
2Trim, Side (Right Hand) (Biscuit)
2Trim, Side (Left Hand) (Biscuit)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
6Spacer, Foam
7Top, Chassis
84455807 Whirlpool Oven Vent Deflector
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation, Bottom Vent
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22Latch Assembly
23Solenoid
24Microswitch N.C.
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (N
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
33Deflector, Vent
33W10145009 Whirlpool Vent Deflector
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WP8281236 Whirlpool Screw
51WPL 4455146
514452152 Whirlpool Oven Mounting Bracket
51Trim, Bottom (Black)
51Trim, Bottom (White)
51WPL 4455446
53WPL 4449315
53WPL 4449845
53WPL 4450364
