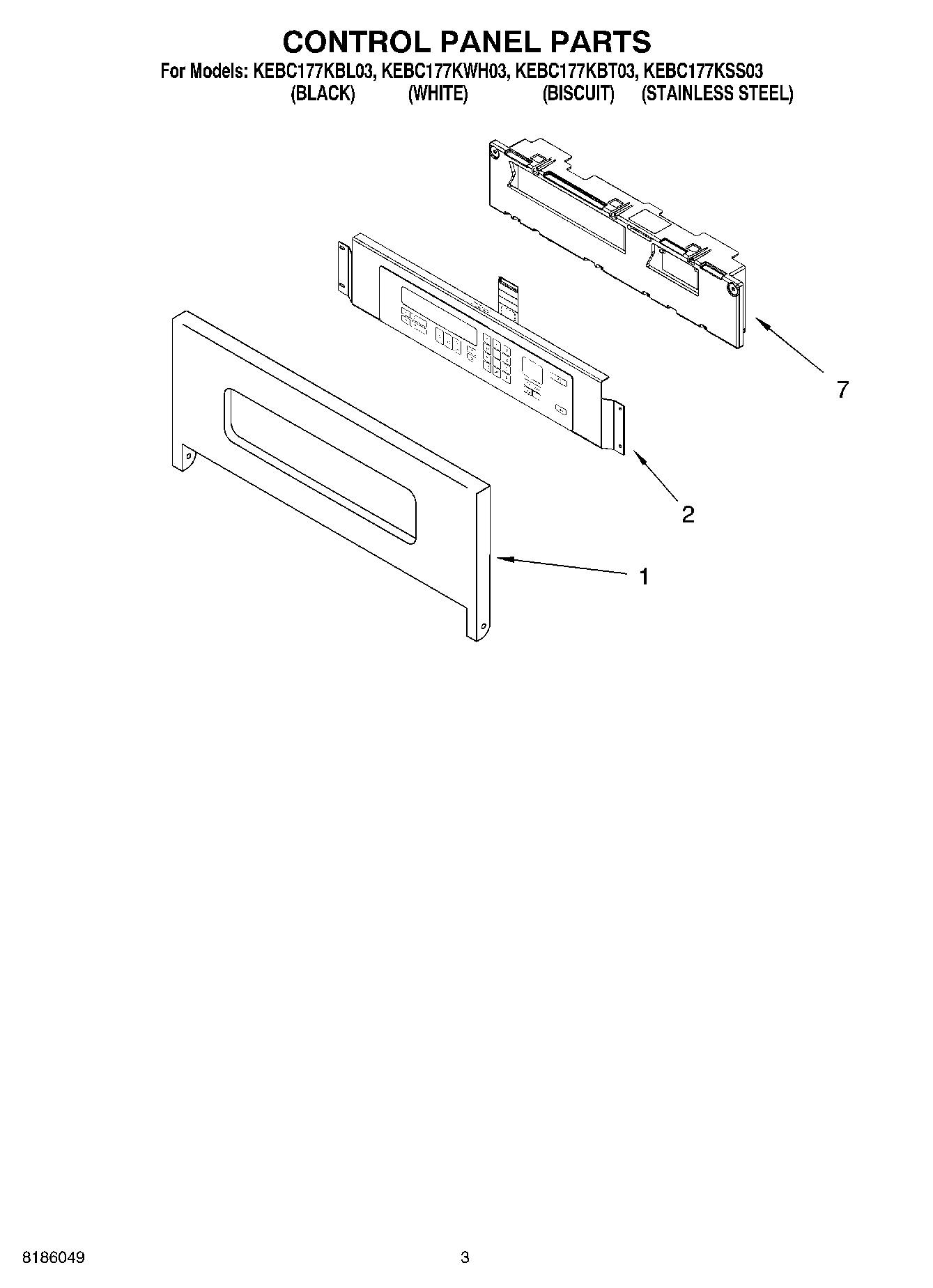

KEBC177KBT03 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Panel, Control
1	Panel, Control (Black)
1	Panel, Control (White)
1	Panel, Control (Biscuit)
2	Switch, Membrane (Stainless Steel)
2	Switch, Membrane (Biscuit)
2	Switch, Membrane (White)
2	Switch, Membrane (Black)
7	WP4449745 Whirlpool Screw
7	Assy, Control
