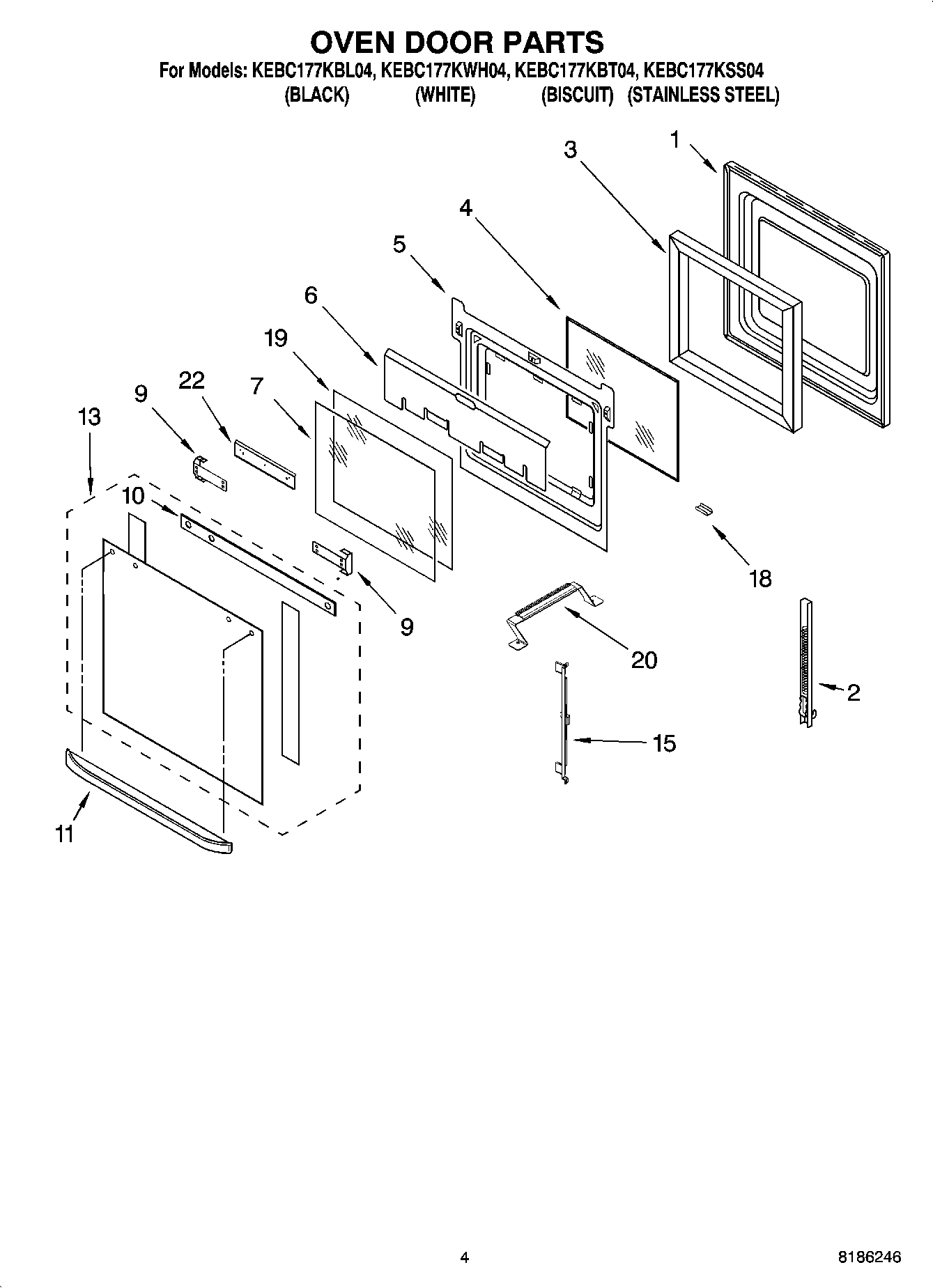

KEBC177KBT04 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP9760571 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
2	HINGE-DOOR
2	WP9760572 Whirlpool Door Hinge
3	Insulation, Sides
4	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Shield, Heat
6	WP4449809 Whirlpool Screw
7	Glass, Inner
9	4455803 Whirlpool Oven Bracket
9	Bracket, Handle (L.Hand)
9	WPW10132940 Whirlpool Dishwasher Screw
10	Seal, Top
11	Handle, Door (Biscuit)
11	Handle, Door (White)
11	Handle, Door (Black)
11	Door Handle (Stainless Steel)
13	Door Glass, Assy (Biscuit)
13	Glass, Outer (Black)
13	Glass, Outer (White)
13	WP4452315 Whirlpool Door Glass
15	WP9759229 Whirlpool Mounting Bracket
18	Retainer, Glass-Clip (Stainless Steel)
18	WP3400832 Whirlpool Screw
18	Clip, Retainer (Black Model)
18	Clip, Retainer (White Model)
18	RETAINER,GLASS CLIP (BISCUIT)
19	Glass, Inner
20	Bracket (3rd Glsss)
22	Shield, Heat (Bottom)
