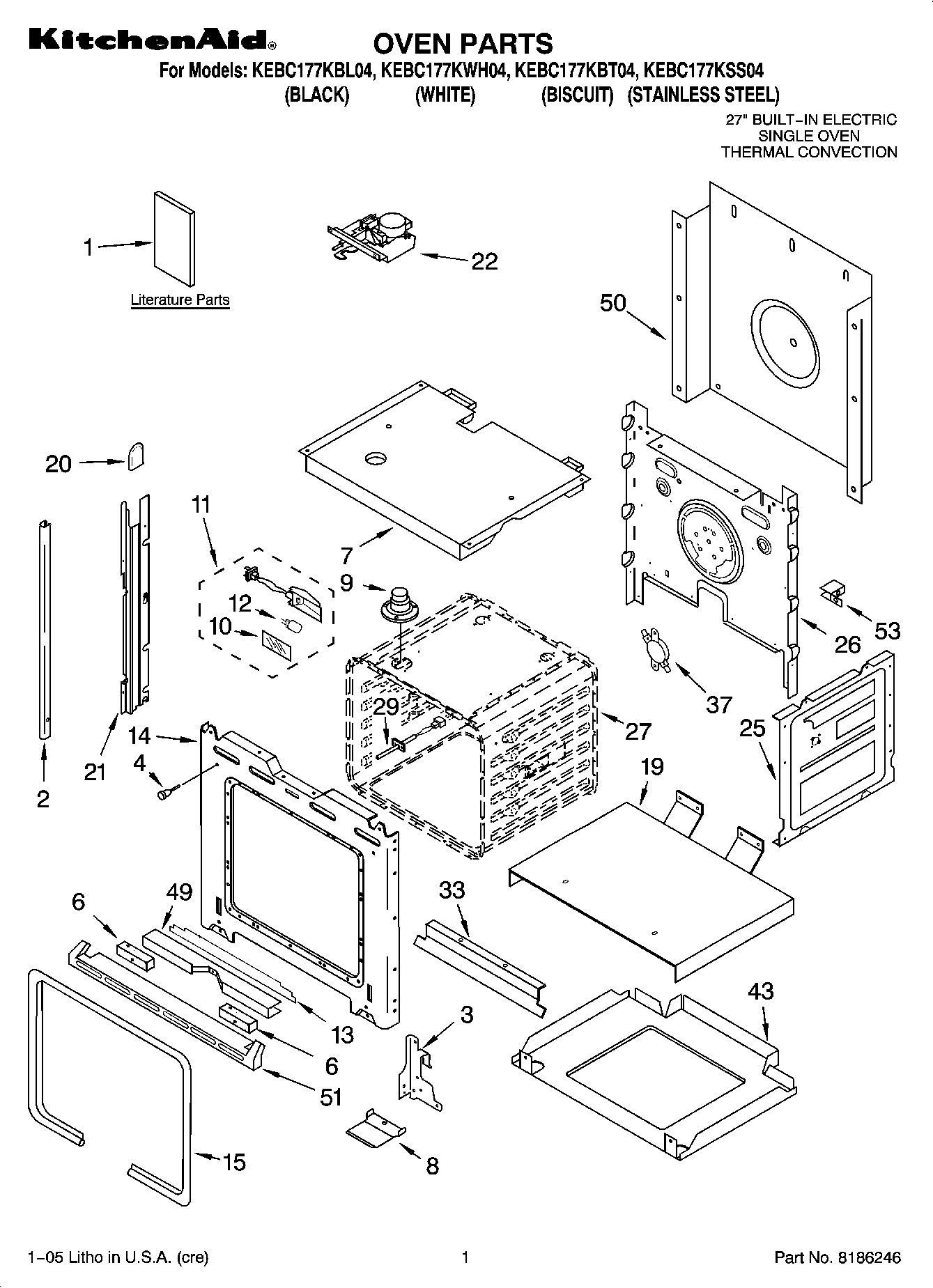

KEBC177KWH04 01 – OVEN PARTS

KEBC177KWH04 01 – OVEN PARTS

Written by

in

KEBC177KWH04 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips
1Installation/ Undercounter
1Tech Sheet
1Installation, MWO Trim Kit
1Easy Set Guide
1Use & Care Guide (Oven)
1Installation Instructions
2WP3400832 Whirlpool Screw
24455377 Whirlpool Oven Trim
2W10144984 Whirlpool Trim
2WPW10144983 Whirlpool Trim
2Trim, Side Left (Black)
2Trim, Side (RH White)
2Trim, Side (LH White)
2Trim, Side (Left Hand) (Biscuit)
2Trim, Side (Right Hand) (Biscuit)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
6Spacer, Foam
7Top, Chassis
84455807 Whirlpool Oven Vent Deflector
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation, Bottom Vent
14WP4450118 Whirlpool Nut
14Screw
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
33W10145009 Whirlpool Vent Deflector
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51Trim, Bottom (Black)
51WPL 4455446
51Trim, Bottom (White)
514452152 Whirlpool Oven Mounting Bracket
51WPL 4455146
51WP8281236 Whirlpool Screw
53WPL 4450364
53WPL 4449845
53WPL 4449315
53WPL ARI81833A2
