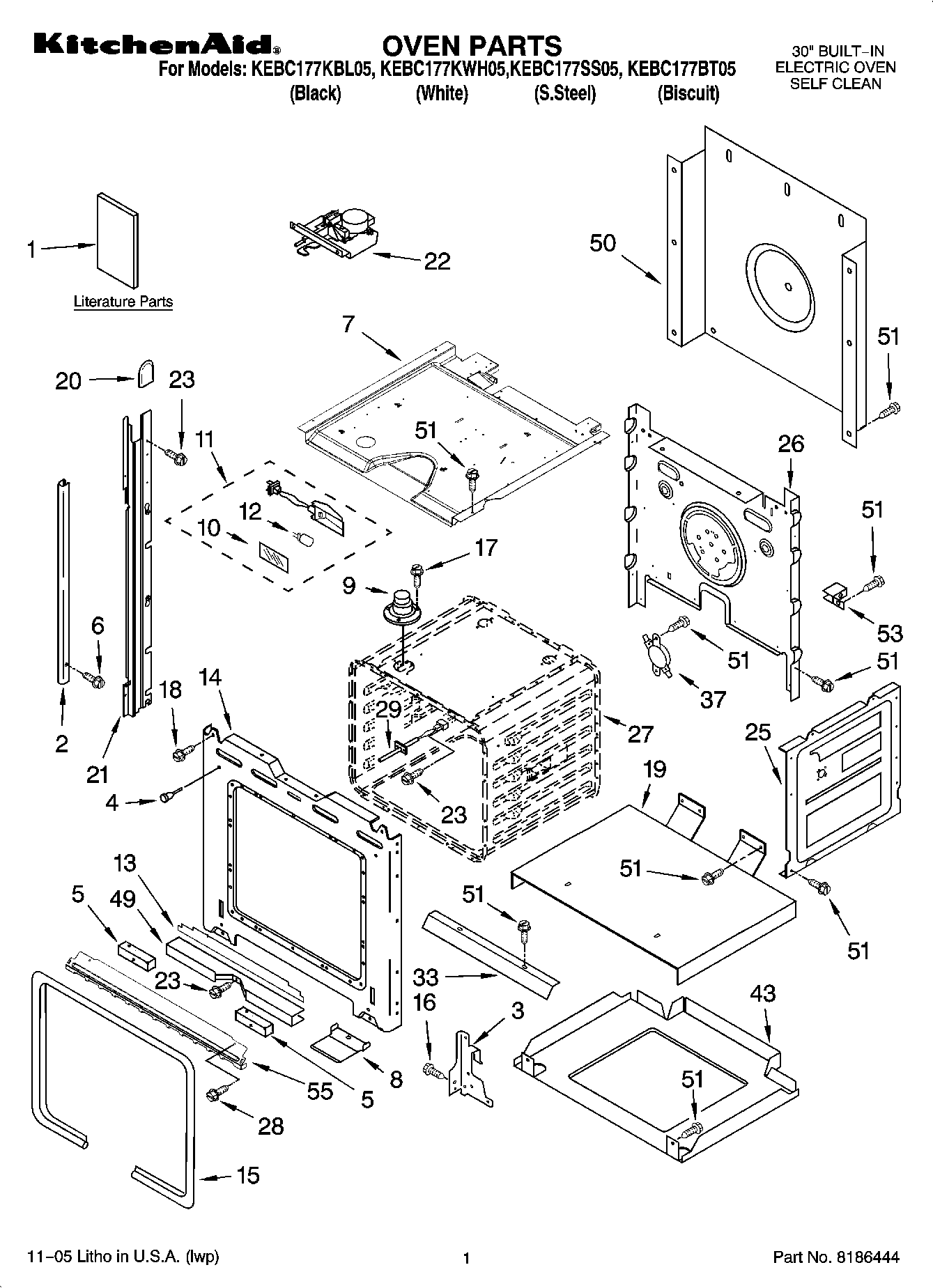

KEBC177SS05 01 – OVEN PARTSadmin2025-04-26T10:33:34+00:00KEBC177SS05 01 – OVEN PARTS
Products
| Position | Product |
|---|
| 1 | Safe Cooking Tips (French) |
| 1 | Tech Sheet |
| 1 | Easy Set Guide |
| 1 | Easy Set Guide (French) |
| 1 | Installation, MWO Trim Kit |
| 1 | Owners Manual |
| 1 | French |
| 1 | Installation Instructions |
| 1 | Safe Cooking Tips |
| 1 | Tech Sheet (Oven) (French) |
| 1 | Installation Instructions (Undercounter, Oven) |
| 2 | Trim, Side (Right Hand) (Biscuit) |
| 2 | W10144984 Whirlpool Trim |
| 2 | WPW10144983 Whirlpool Trim |
| 2 | Trim, Side Left (Black) |
| 2 | Trim, Side (RH White) |
| 2 | Trim, Side (LH White) |
| 2 | 4455377 Whirlpool Oven Trim |
| 2 | Trim, Side (Left Hand) (Biscuit) |
| 3 | WP4455606 Whirlpool Right Hand Hinge |
| 3 | WP4455605 Whirlpool Left Hand Hinge |
| 4 | 4448520 Whirlpool Oven Bumper |
| 5 | Spacer, Foam |
| 6 | WP8281236 Whirlpool Screw |
| 7 | Top, Chassis |
| 8 | W10145009 Whirlpool Vent Deflector |
| 8 | Deflector, Vent (White) |
| 8 | 4455807 Whirlpool Oven Vent Deflector |
| 8 | Deflector, Vent (Biscuit) |
| 9 | W10861715 Whirlpool Vent Tube |
| 10 | Lens, Light |
| 11 | WP4448972 Whirlpool Oven Light |
| 12 | WP4452164 Whirlpool 12V 5W Halogen Light Bulb |
| 13 | Insulation, Bottom Vent |
| 14 | Frame, Front |
| 15 | WP4455381 Whirlpool Door Gasket |
| 16 | WP4449743 Whirlpool Screw |
| 17 | SCREW |
| 18 | Screw |
| 19 | Support, Insulation |
| 20 | Cap, Spacer |
| 21 | 814372 Whirlpool Oven Rail Mount |
| 21 | 814371 Whirlpool Oven Rail Mount |
| 22 | WP9760889 Whirlpool Door Latch |
| 23 | WP4449154 Whirlpool Screw |
| 25 | W10782197 Whirlpool Side Panel |
| 26 | Back, Chassis |
| 27 | Liner, |
| 28 | WP3400832 Whirlpool Screw |
| 29 | WPW10131825 Whirlpool Oven Temperature Sensor |
| 33 | Deflector, Vent |
| 37 | WP9759242 Whirlpool Thermostat |
| 43 | Base, Chassis |
| 49 | WP4448933 Whirlpool Retainer |
| 50 | WP4451747 Whirlpool Rear Cover |
| 51 | WP4449809 Whirlpool Screw |
| 53 | WPL 4449845 |
| 55 | WPL 4450364 |
| 55 | WPL 4449315 |
| 55 | WPL 4455146 |
| 55 | 4452152 Whirlpool Oven Mounting Bracket |
| 55 | Trim, Bottom (Black) |
| 55 | Trim, Bottom (White) |
| 55 | WPL 4455446 |
| 55 | WPL ARI81846A7 |
