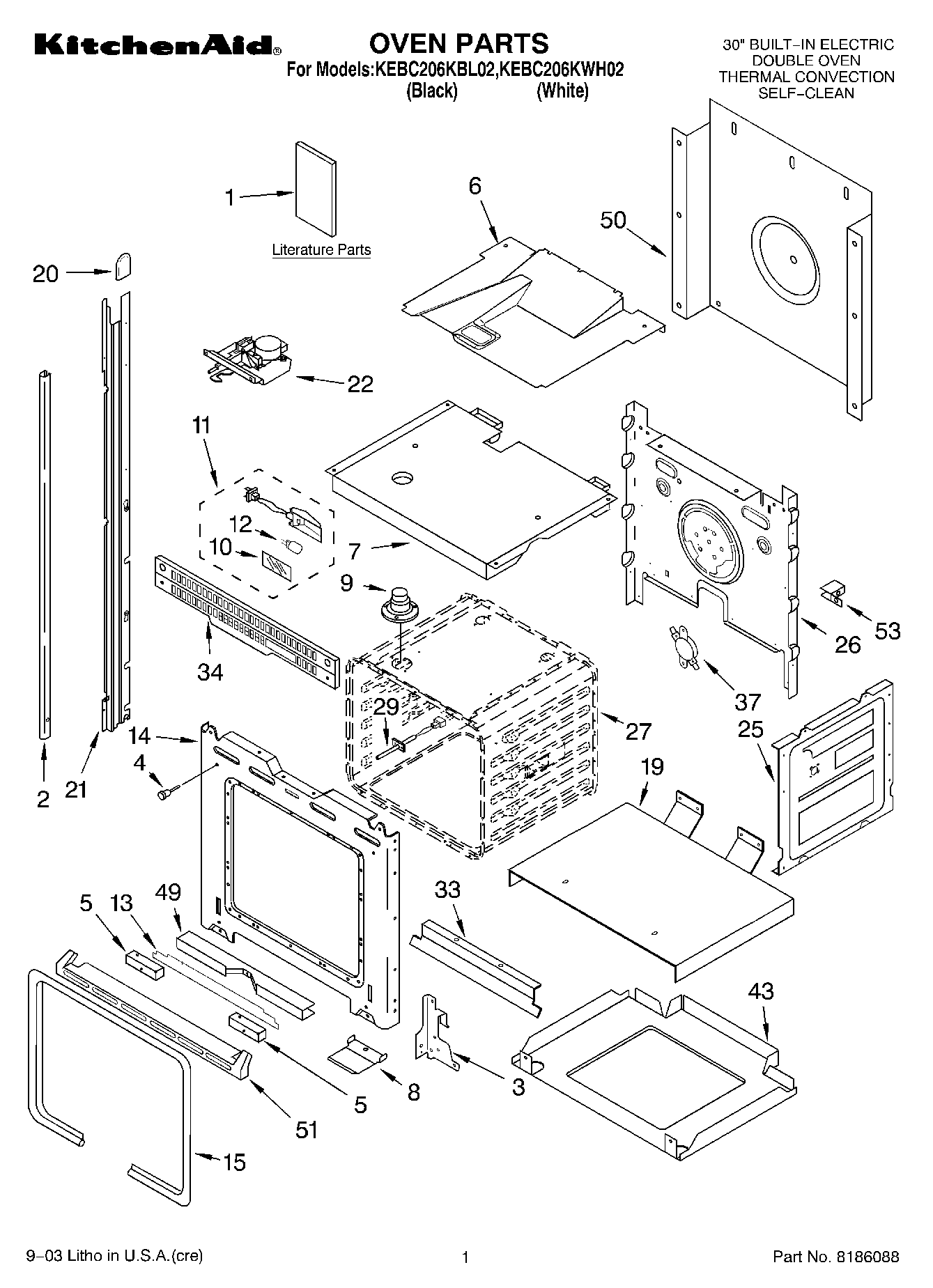

KEBC206KBL02 01 – OVEN PARTSadmin2025-04-26T10:32:50+00:00KEBC206KBL02 01 – OVEN PARTS
Products
| Position | Product |
|---|
| 1 | Safer Cooking Tips |
| 1 | Literature Parts (Use & Care Guide) |
| 1 | Literature Parts (Tech Sheet) |
| 1 | Literature Parts (Installation Instructions) |
| 1 | Literature Parts (Easy Set Guide) |
| 2 | WP8281236 Whirlpool Screw |
| 2 | Trim, Side Left (White) |
| 2 | WP4455426 Whirlpool Trim |
| 2 | Trim, Side Right (White) |
| 2 | Trim, Side (LH Black) |
| 3 | WP4455605 Whirlpool Left Hand Hinge |
| 3 | WP4455606 Whirlpool Right Hand Hinge |
| 4 | 4448520 Whirlpool Oven Bumper |
| 5 | Spacer, Foam |
| 6 | Divider, Vent |
| 7 | Top, Chassis |
| 8 | 4455807 Whirlpool Oven Vent Deflector |
| 9 | SCREW |
| 9 | W10861715 Whirlpool Vent Tube |
| 10 | Lens, Light |
| 11 | 4449748 Whirlpool Oven Screw |
| 11 | WP4448972 Whirlpool Oven Light |
| 12 | WP4452164 Whirlpool 12V 5W Halogen Light Bulb |
| 13 | Insulation Bottom Vent |
| 14 | Frame, Front |
| 14 | Screw |
| 14 | WP4450118 Whirlpool Nut |
| 15 | W11675844 Whirlpool Oven Gasket |
| 19 | Support, Insulation |
| 20 | Cap, Spacer |
| 21 | 814373 Whirlpool Oven Rail Mount |
| 21 | 814374 Whirlpool Oven Rail Mount |
| 21 | WP4448444 Whirlpool Grommet |
| 22 | WP9760889 Whirlpool Door Latch |
| 25 | W10782197 Whirlpool Side Panel |
| 26 | Back, Chassis |
| 27 | Liner, Oven (Not serviceable) |
| 29 | WPW10131825 Whirlpool Oven Temperature Sensor |
| 33 | 9760677 Whirlpool Oven Vent Deflector |
| 34 | Vent, Center |
| 37 | WP9759242 Whirlpool Thermostat |
| 43 | WPL 4455530 |
| 49 | WP4449154 Whirlpool Screw |
| 49 | WP4448933 Whirlpool Retainer |
| 50 | WP4451747 Whirlpool Rear Cover |
| 51 | 4452152 Whirlpool Oven Mounting Bracket |
| 51 | WPL 4455443 |
| 51 | WPL 4455445 |
| 53 | WPL 4449845 |
| 53 | W11684730 Whirlpool Insulation |
| 53 | WPL 4450365 |
| 53 | WP4449809 Whirlpool Screw |
| 53 | F |
