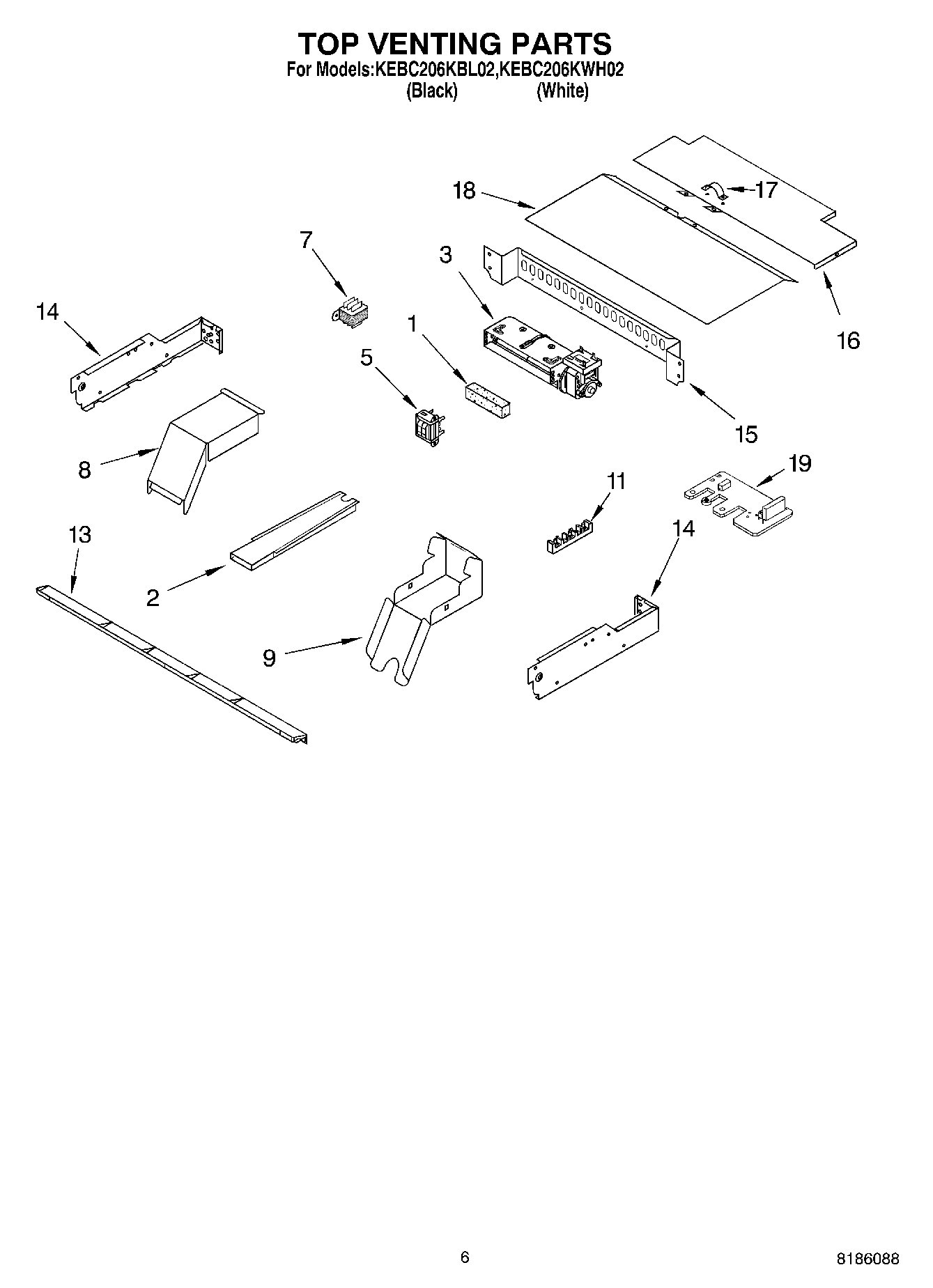

KEBC206KBL02 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI81859A8
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire (14 Ga. 200 c Brown)
1
WPL ARI81858A3
WPL ARI81857A5
WPL ARI81856A5
WPL 8301873
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI81860A2
4451761 Whirlpool Oven Support Bracket
WPL 591014
Spacer, Harness
16515 Whirlpool Clip
4452400 Whirlpool Microwave Wire Harness
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
72017 Whirlpool Appliance Touch-Up Paint White
4450800 Whirlpool Oven Screw
WP4449809 Whirlpool Screw
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
Conduit, Double
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
34455191 Whirlpool Oven Mounting Plate
3Blower
3WPW10016550 Whirlpool Blower Cooling Fan
3WP4455352 Whirlpool Mounting Bracket
5WP9760588 Whirlpool Transformer
7Transformer, Control
84455178 Whirlpool Oven Top Elbow
94455177 Whirlpool Oven Bottom Elbow
11Screw
11WP8203546 Whirlpool Terminal Block
13Vent, Control Panel
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
18Spacer, Foam
19WP4451985 Whirlpool Noise Filter Board
