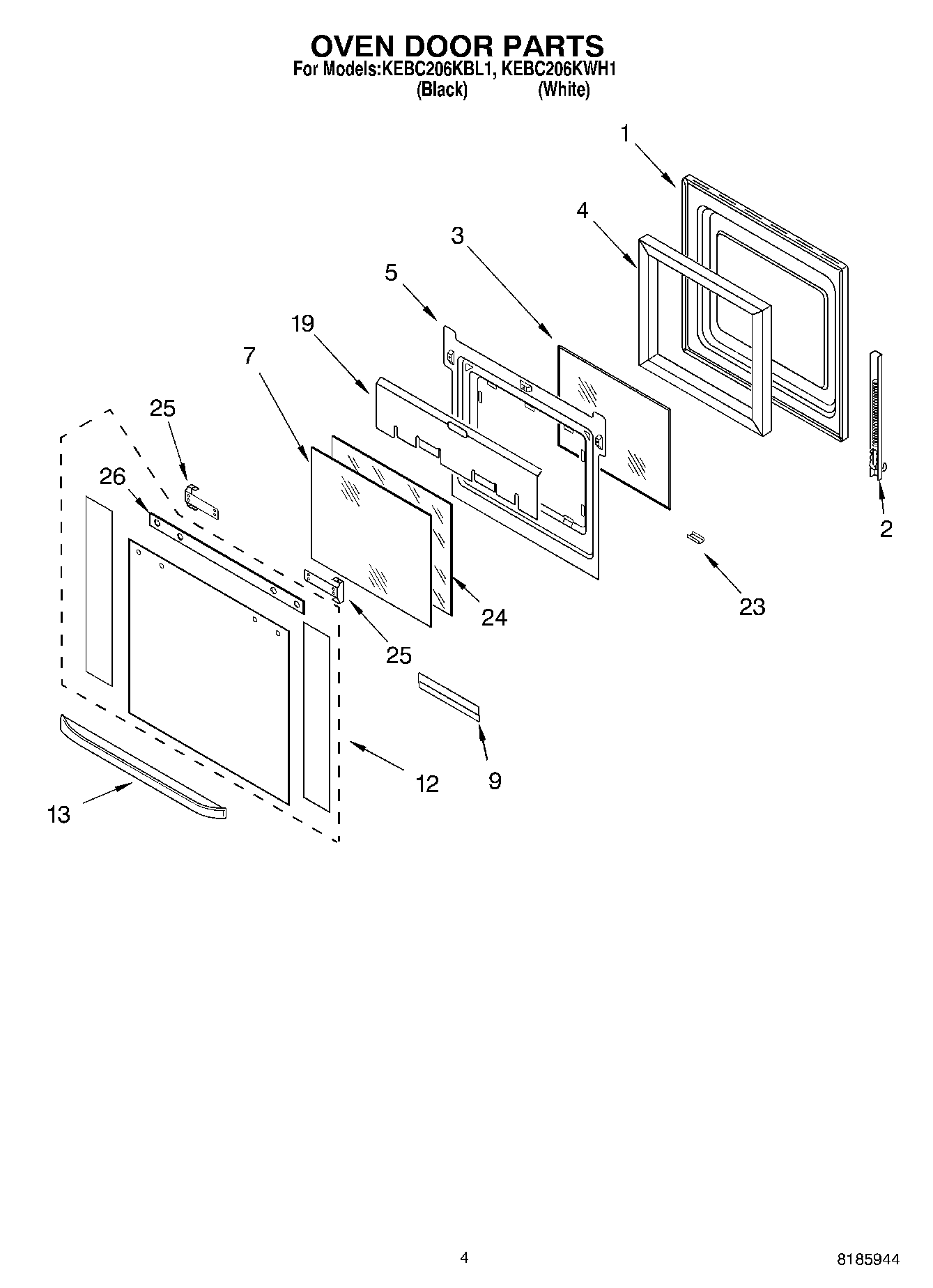

KEBC206KBL1 03 – OVEN DOORadmin2025-04-26T10:33:23+00:00KEBC206KBL1 03 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | WP9759413 Whirlpool Door Liner |
| 2 | HINGE-DOOR |
| 2 | HINGE-DOOR LH/SS DOOR SPRING |
| 2 | WP4449743 Whirlpool Screw |
| 3 | WP4449259 Whirlpool Glass Window |
| 4 | WP4451722 Whirlpool Door Insulation Assembly |
| 5 | Retainer, Glass |
| 7 | WP4449263 Whirlpool Inner Door Glass |
| 9 | Retainer, Glass |
| 12 | Door Glass, Assy (Black) |
| 12 | Door Glass, Assy (White) |
| 13 | Handle, Door (Black) |
| 13 | Handle, Door (White) |
| 19 | Shield, Heat |
| 19 | WP4449809 Whirlpool Screw |
| 23 | Clip, Retainer (White Model) |
| 23 | Clip, Retainer (Black Model) |
| 24 | Glass, Inner |
| 25 | 4455803 Whirlpool Oven Bracket |
| 25 | Screw |
| 25 | Bracket, Handle Stainless Steel Model (Left Hand) |
| 26 | Seal, Door Top |
