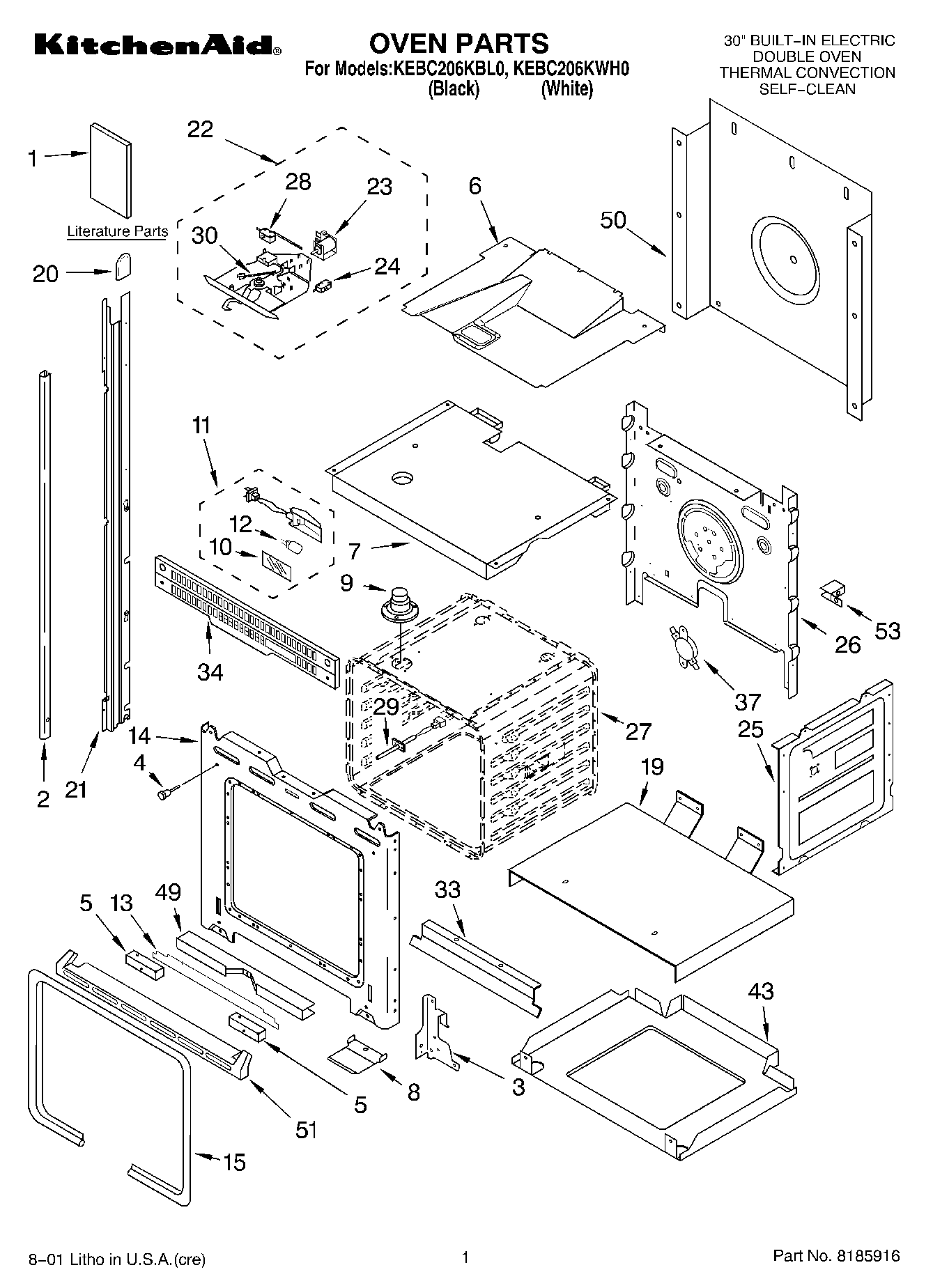

KEBC206KWH0 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Tech Sheet (Oven))
1	Literature Parts (Easy Set Guide)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
2	WP8281236 Whirlpool Screw
2	WP4455426 Whirlpool Trim
2	Trim, Side Left (White)
2	Trim, Side Right (White)
2	Trim, Side (LH Black)
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	Spacer, Foam
6	Divider, Vent
7	Top, Chassis
8	4455807 Whirlpool Oven Vent Deflector
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Lens, Light
11	WP4448972 Whirlpool Oven Light
11	4449748 Whirlpool Oven Screw
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13	Insulation Bottom Vent
14	Screw
14	WP4450118 Whirlpool Nut
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
20	Cap, Spacer
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
22	Latch Assembly
23	Solenoid
24	Microswitch N.C.
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
28	Microswitch
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Spring, Latch
33	9760677 Whirlpool Oven Vent Deflector
34	Vent, Center
37	WP9759242 Whirlpool Thermostat
43	WPL 4455530
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4455445
51	WPL 4455443
51	4452152 Whirlpool Oven Mounting Bracket
53	W11684730 Whirlpool Insulation
53	WPL 4449845
53	WP4449809 Whirlpool Screw
53	WPL 4450365
