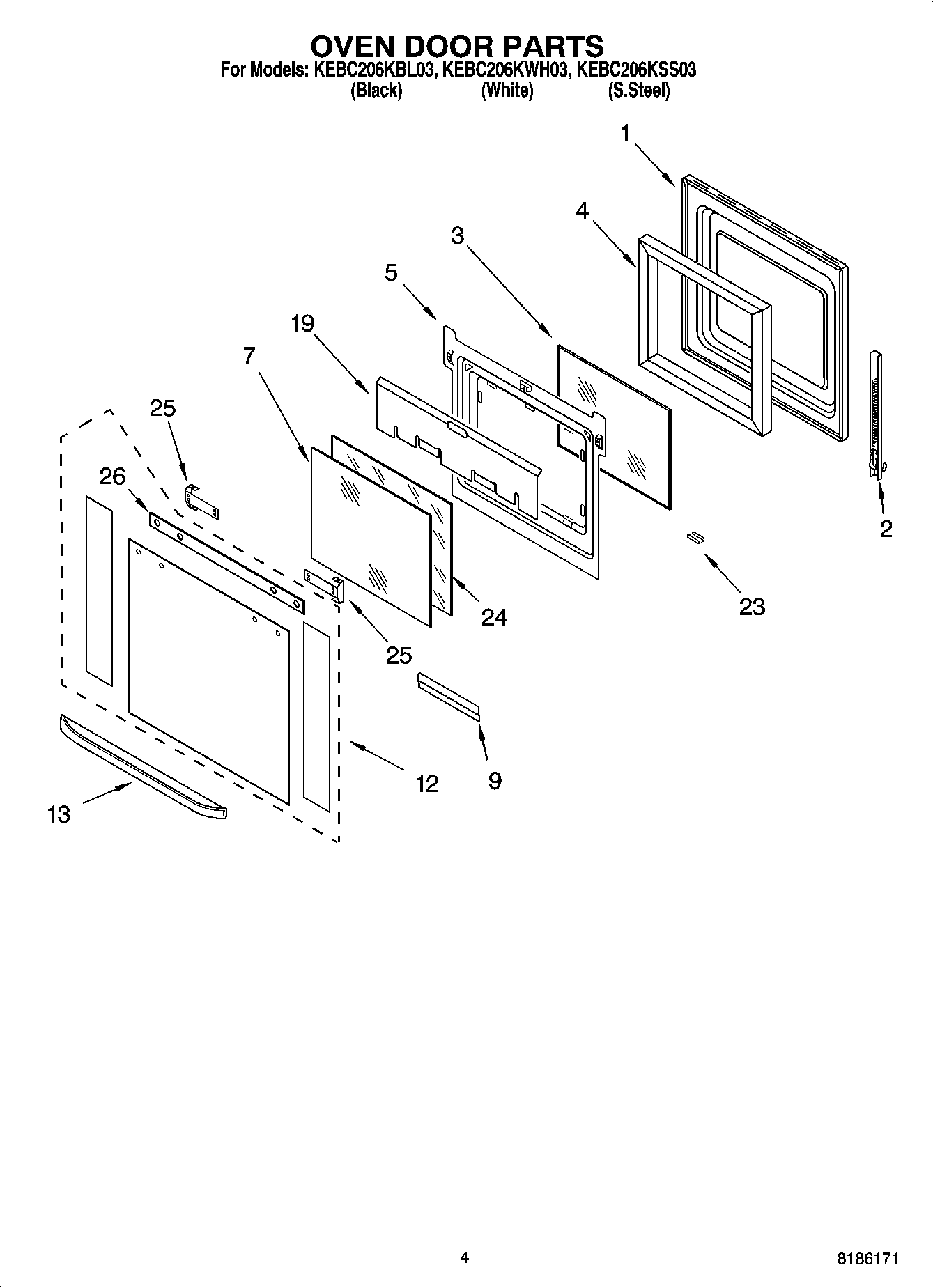

KEBC206KWH03 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	HINGE-DOOR
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP4449743 Whirlpool Screw
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	Door Glass, Assy (Black)
12	Door Glass, Assy (White)
12	W10401225 Whirlpool Oven Outer Door Glass
13	Handle, Door (White)
13	Door Handle (Stainless Steel)
13	Handle, Door (Black)
19	WP4449809 Whirlpool Screw
19	Shield, Heat
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
25	WPW10132940 Whirlpool Dishwasher Screw
25	Bracket, Handle (L.Hand)
25	4455803 Whirlpool Oven Bracket
26	Seal, Door Top
