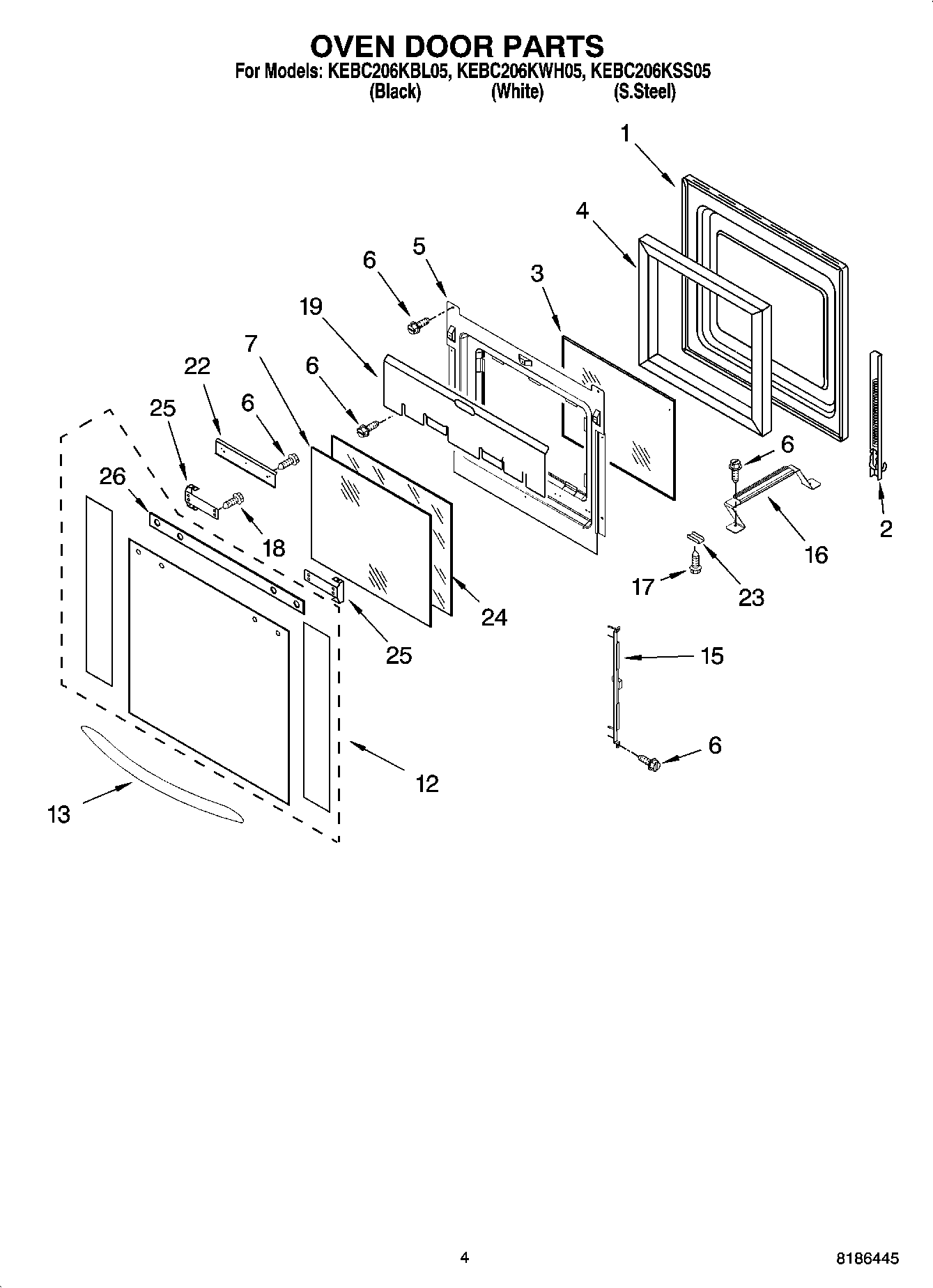

KEBC206KWH05 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760578 Whirlpool Oven Left Door Hinge
2	WP9760577 Whirlpool Oven Right Door Hinge
2	WP9760576 Whirlpool Door Hinge (Left)
2	HINGE-DOOR
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
6	WP4449809 Whirlpool Screw
7	WP9759225 Whirlpool Inner Door Glass
12	Door Glass, Assy (White)
12	Door Glass, Assy (Black)
12	W10401225 Whirlpool Oven Outer Door Glass
13	Handle, Door (Black)
13	Handle, Door (White)
13	Door Handle (Stainless Steel)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	WP3400832 Whirlpool Screw
18	WPW10132940 Whirlpool Dishwasher Screw
19	Shield, Heat
22	4457114 Whirlpool Oven Heat Shield
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	Glass, Inner
25	Bracket, Handle (L.Hand)
25	4455803 Whirlpool Oven Bracket
26	Seal, Door Top
