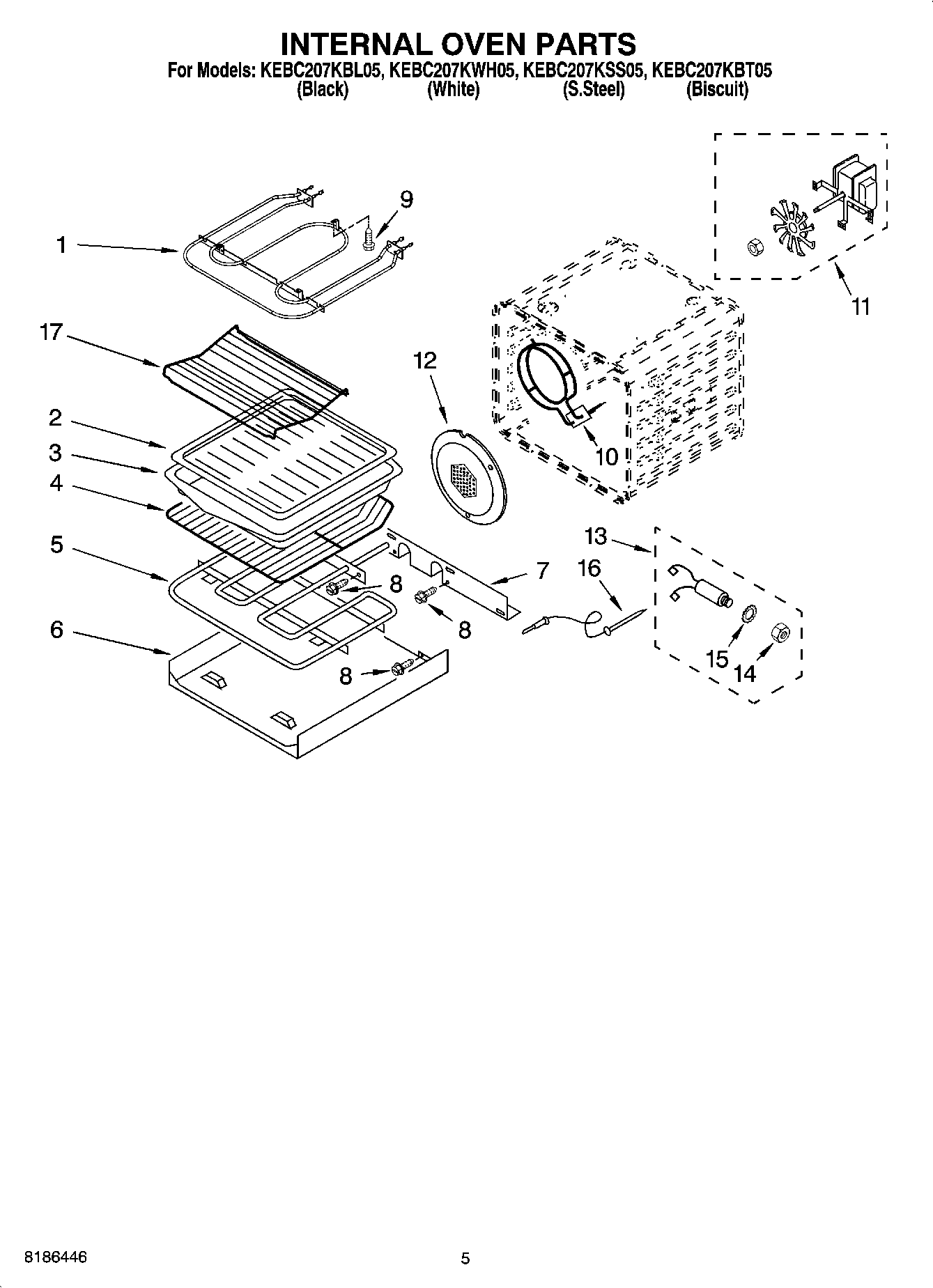

KEBC207KBL05 04 – INTERNAL OVEN PARTS
Written by
in
KEBC207KBL05 04 – INTERNAL OVEN PARTS
Products
Position
Product
1
WPW10207400 Whirlpool Broil Element
2
WP3195996 Whirlpool Pan Grid
3
W10737569 Whirlpool Broil Pan
4
WPW10179152 Whirlpool Rack Oven
5
4451175 Whirlpool Bake Element
6
Tray, Hidden Bake
7
4450039 Whirlpool Oven Access Cover
8
WP4449809 Whirlpool Screw
9
WP4449154 Whirlpool Screw
10
WP9760769 Whirlpool Element Assembly
11
Motor Convection
12
WPW10160821 Whirlpool Fan Cover
13
8186589 Whirlpool Jack Probe
14
WP9755546 Whirlpool Locknut
15
WP9755547 Whirlpool Lockwasher
16
WP9755542 Whirlpool Oven Meat Probe
17
Rack, Roasting
←
