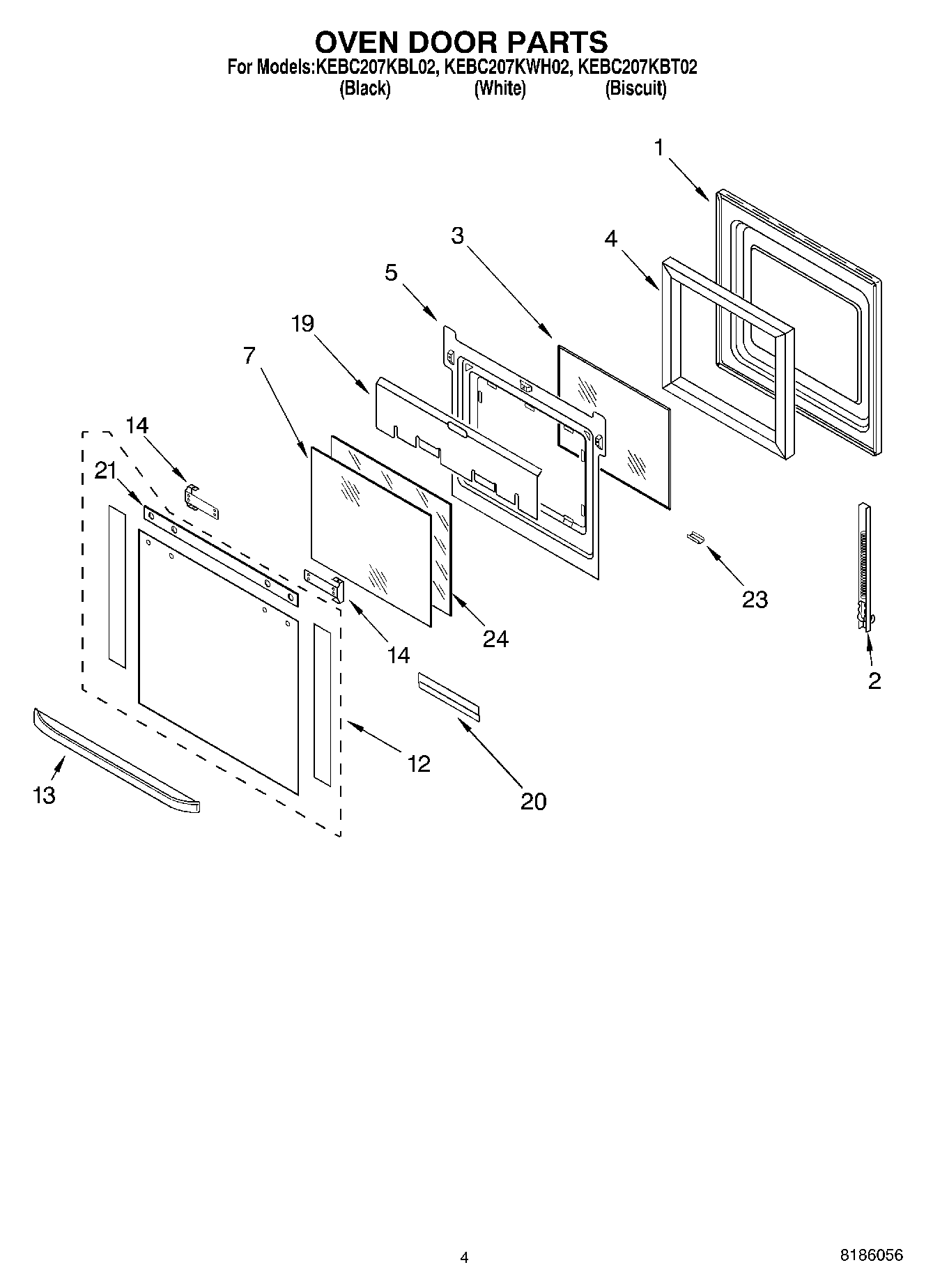

KEBC207KBT02 03 – OVEN DOOR PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1WP9759413 Whirlpool Door Liner
2HINGE-DOOR LH/SS DOOR SPRING
2WP4449743 Whirlpool Screw
2HINGE-DOOR
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5Retainer, Glass
7Burner Switch & Harness Assembly
12Door Glass, Assy (Black)
12Door Glass, Assy (Biscuit)
12Door Glass, Assy (White)
13Handle, Door (Black)
13Handle, Door (White)
13Handle, Door (Biscuit)
144455803 Whirlpool Oven Bracket
14WPW10132940 Whirlpool Dishwasher Screw
14Bracket, Handle (L.Hand)
19Shield, Heat
20WP4449809 Whirlpool Screw
20Retainer, Glass
21Seal, Door Top
23RETAINER,GLASS CLIP (BISCUIT)
23Clip, Retainer (White Model)
23Clip, Retainer (Black Model)
24Glass, Inner
