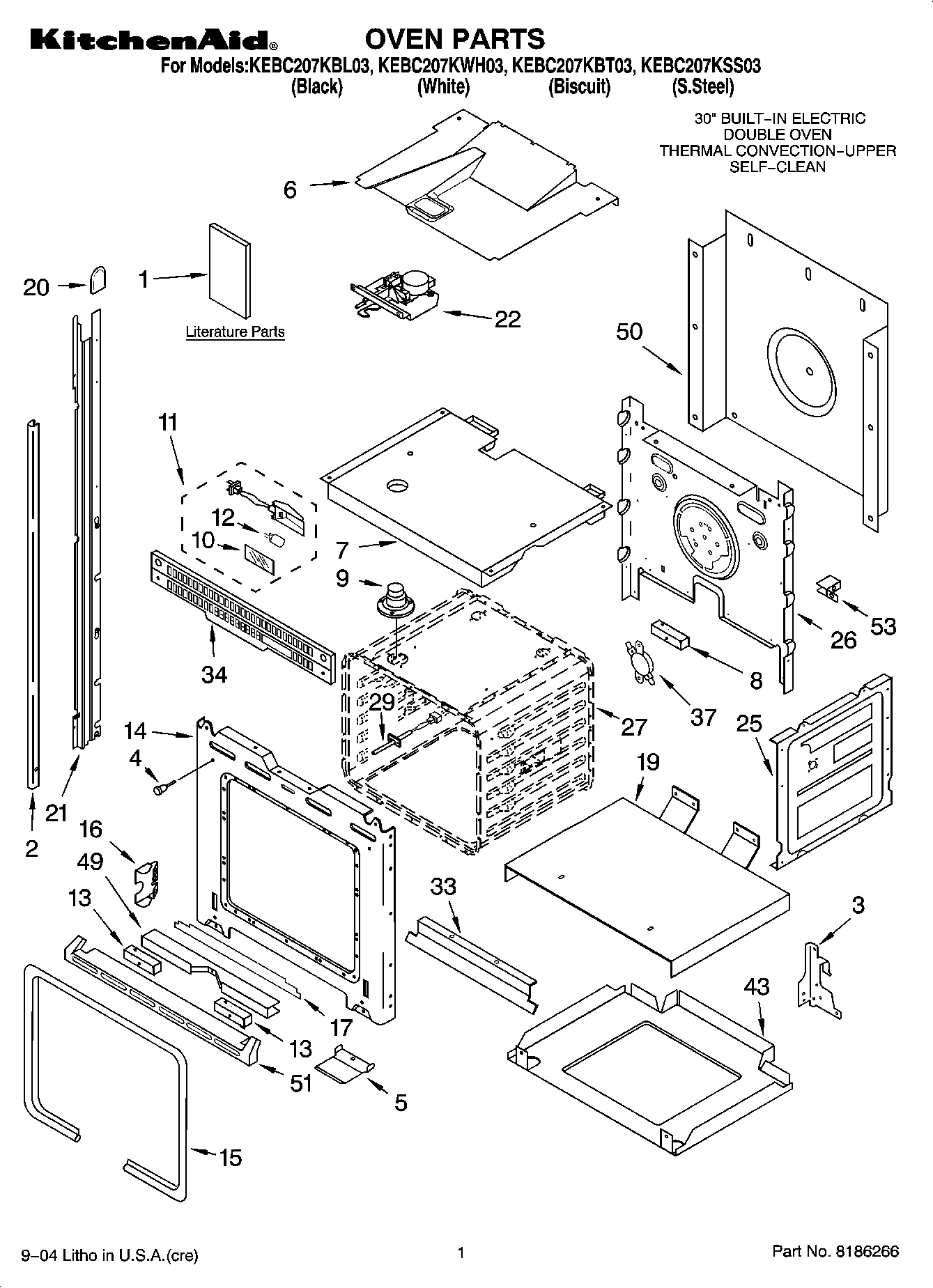

KEBC207KBT03 01 – OVEN PARTS

KEBC207KBT03 01 – OVEN PARTS

Written by

in

KEBC207KBT03 01 – OVEN PARTS

Products

PositionProduct
1Easy Set Guide
1Installation Instructions
1Safe Cooking Tips
1Use & Care Guide (Oven)
1Tech Sheet
2Trim, Side (Stainless Steel)
2Trim, Side (Stainless Steel)
2WP4455426 Whirlpool Trim
2Trim, Side Left (White)
2Trim, Side Right (White)
2Trim, Side (LH Biscuit)
2Trim, Side (RH Biscuit)
2Trim, Side (LH Black)
2WP8281236 Whirlpool Screw
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5W10145009 Whirlpool Vent Deflector
54455807 Whirlpool Oven Vent Deflector
6Divider, Vent
7Top, Chassis
8Spacer, Foam
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Spacer, Foam
14Frame, Front
14Screw
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
164452152 Whirlpool Oven Mounting Bracket
17Insulation Bottom Vent
19Support, Insulation
20Cap, Spacer
21814374 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814373 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
339760677 Whirlpool Oven Vent Deflector
34Vent, Center
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (S.Steel)
51WPL 4455447
51WPL 4455445
51WPL 4455443
51WP3400832 Whirlpool Screw
53WPL 4450365
53WP4449809 Whirlpool Screw
53W11684730 Whirlpool Insulation
53WPL 4449845
53WPL ARI81969A6
