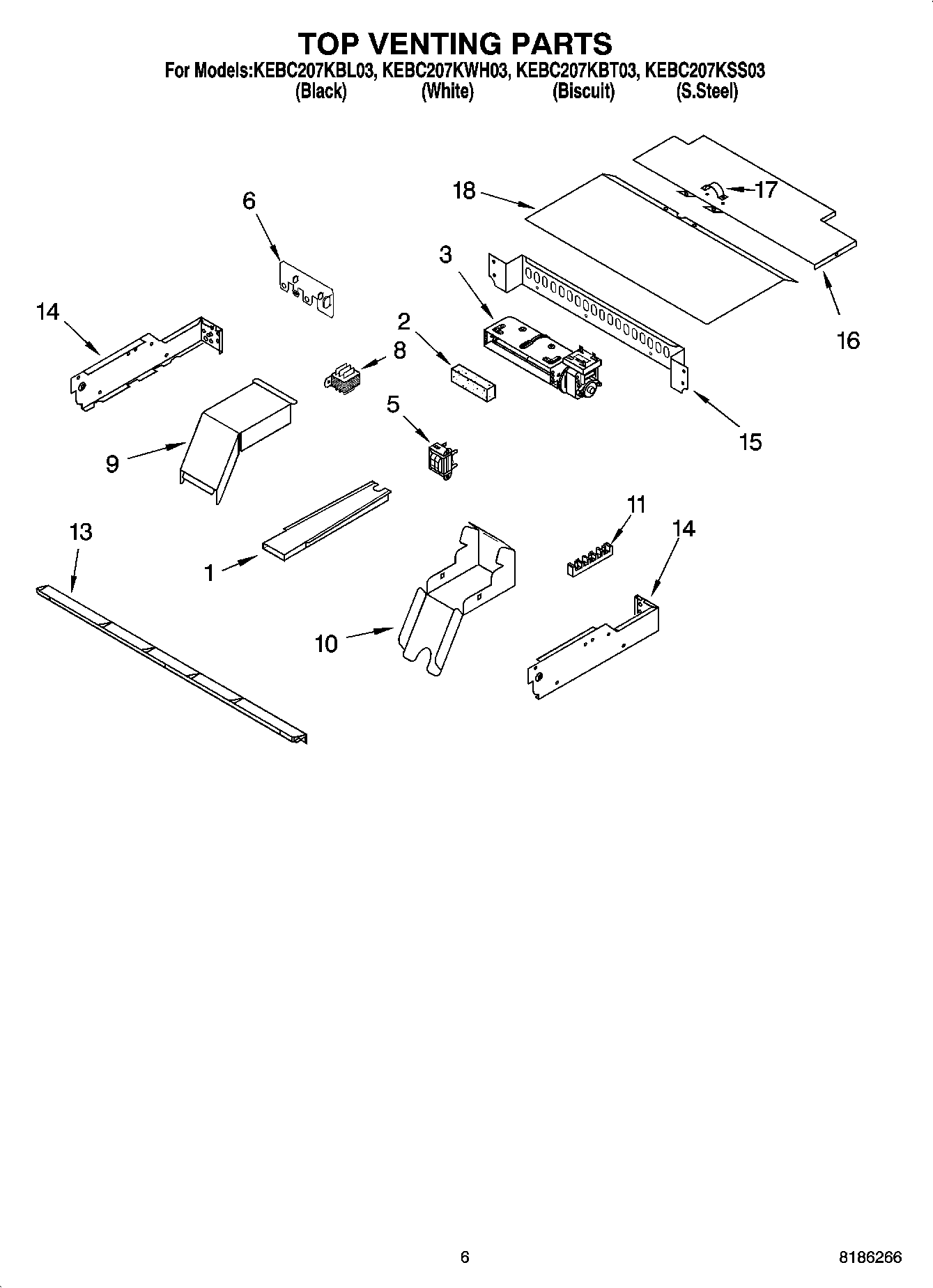

KEBC207KSS03 05 – TOP VENTING PARTS, OPTIONAL PARTS

KEBC207KSS03 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KEBC207KSS03 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI81991A1
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
1
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
WPL ARI81990A3
WPL ARI81989A7
WPL 8301872
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI81992A8
4451761 Whirlpool Oven Support Bracket
WPL 591014
Spacer, Harness
16515 Whirlpool Clip
4452400 Whirlpool Microwave Wire Harness
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
350930 Whirlpool White Spray Paint
4448664 Whirlpool Oven Mounting Bracket
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Black 14 Ga.)
285006 Whirlpool Spray
WP4448950 Whirlpool Screw
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
814381 Whirlpool Pin
Conduit, Double
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
3Blower
3WPW10016550 Whirlpool Blower Cooling Fan
34455191 Whirlpool Oven Mounting Plate
3WP4455352 Whirlpool Mounting Bracket
5WP9760588 Whirlpool Transformer
5Top, Chassis
6WP4451985 Whirlpool Noise Filter Board
8Transformer, Control
94455178 Whirlpool Oven Top Elbow
104455177 Whirlpool Oven Bottom Elbow
11Screw
11WP8203546 Whirlpool Terminal Block
13Vent, Control Panel
13WP4450038 Whirlpool Screw
14WP4449154 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
