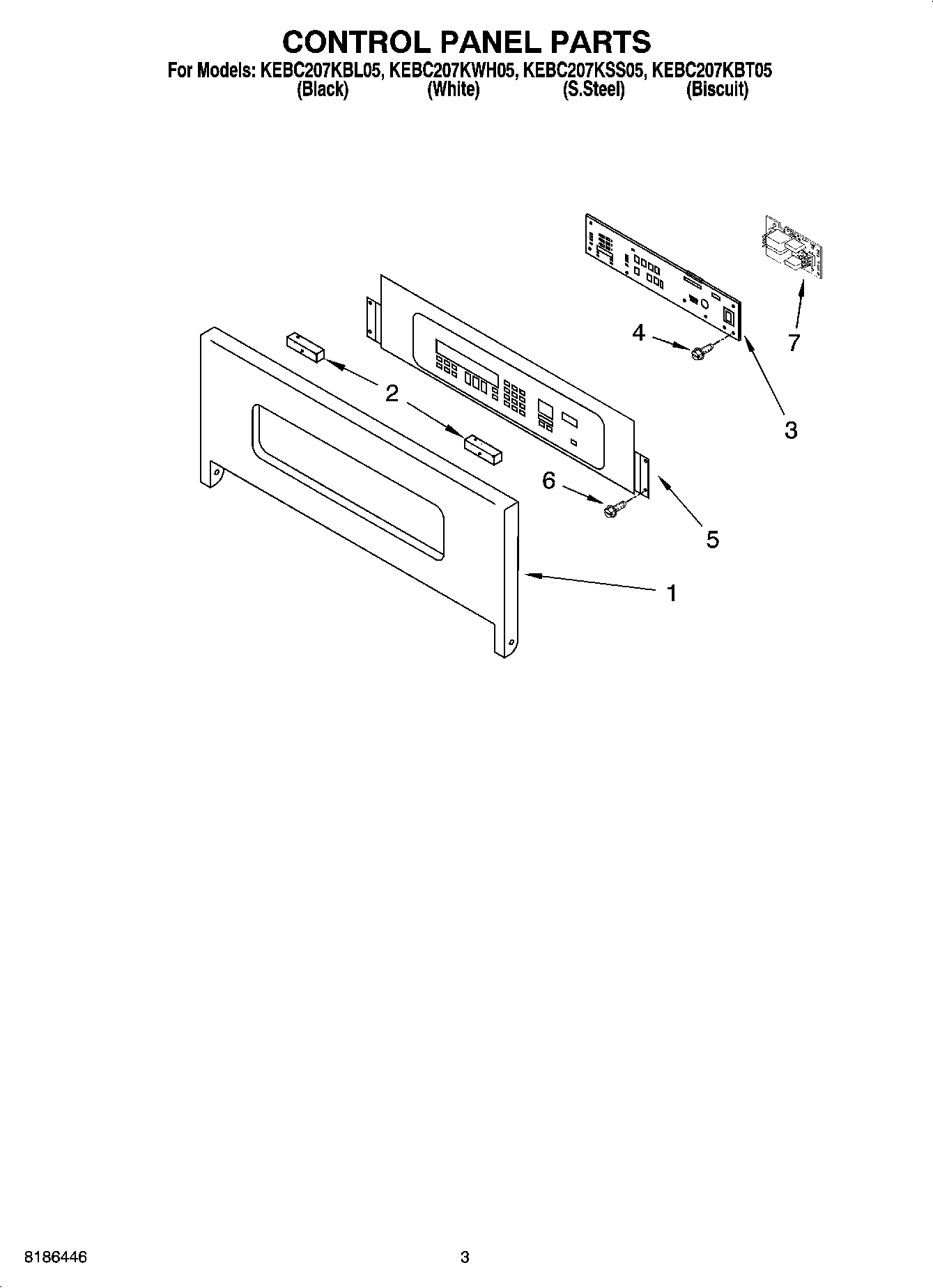

KEBC207KWH05 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control (Biscuit)
1	Panel, Control (White)
1	Panel, Control (Stainless)
1	Panel, Control (Black)
2	Spacer, Foam
3	Control, Electronic
4	WP4449745 Whirlpool Screw
5	Switch, Membrane (Black)
5	Assy, Membrane (Biscuit)
5	Assy, Membrane (White)
5	Assy, Membrane (S.Steel)
6	WP3400832 Whirlpool Screw
7	Latch, Sister Board
