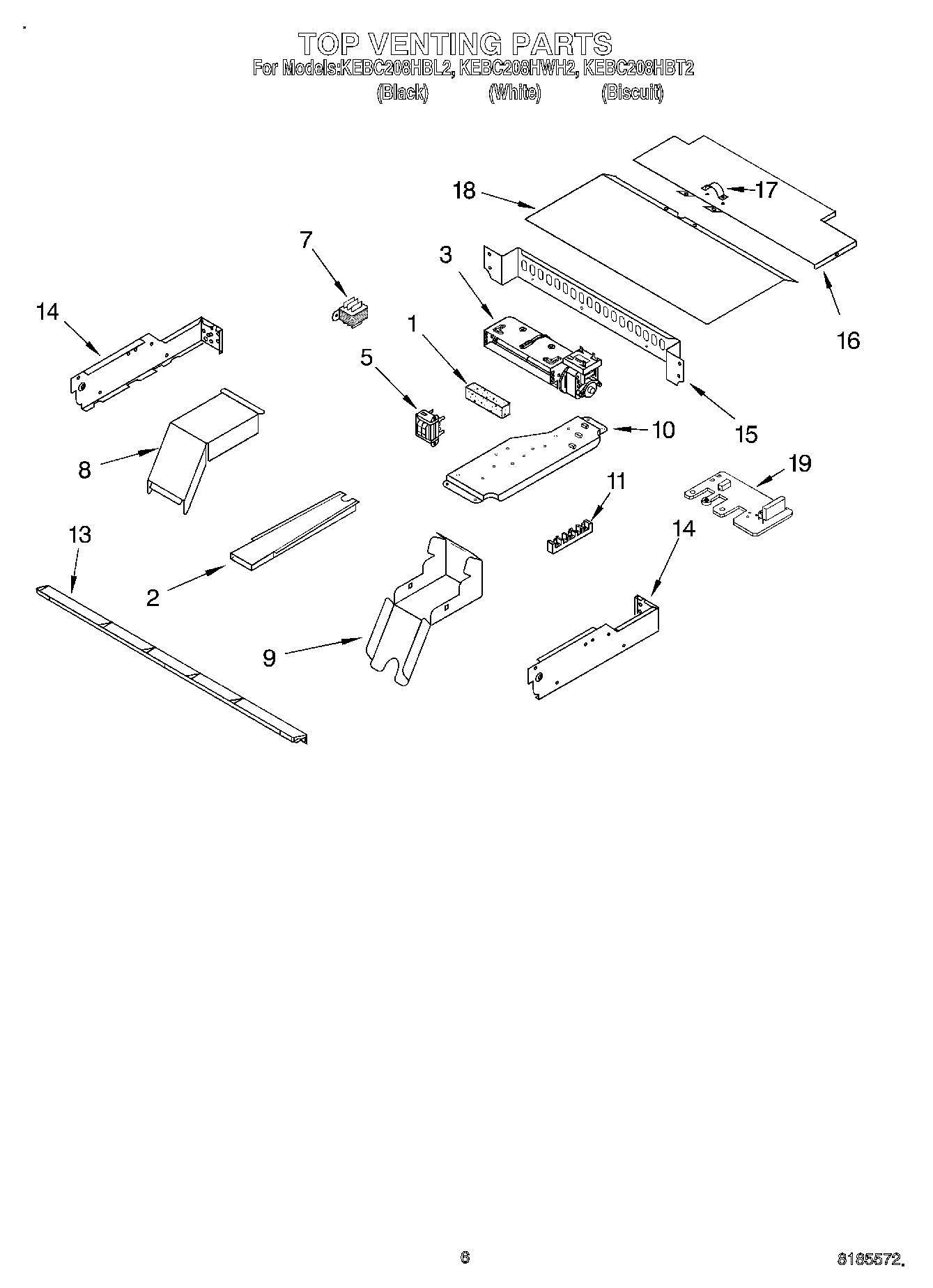

KEBC208HBL2 05 – TOP VENTING, OPTIONAL

KEBC208HBL2 05 – TOP VENTING, OPTIONAL

Written by

in

KEBC208HBL2 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
1W10491987 Whirlpool Foam Seal
24451759 Whirlpool Oven Exhaust Vent
3Blower
3WP4455352 Whirlpool Mounting Bracket
34455191 Whirlpool Oven Mounting Plate
3WPW10016550 Whirlpool Blower Cooling Fan
5WP9760588 Whirlpool Transformer
7Transformer, Control
84455178 Whirlpool Oven Top Elbow
94455177 Whirlpool Oven Bottom Elbow
10Plate, Mounting
11Screw
11WP8203546 Whirlpool Terminal Block
13Vent, Control Panel
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18Spacer, Foam
18WP4452367 Whirlpool Top Cover
19Wire (12 Ga. 150 c Black)
194451761 Whirlpool Oven Support Bracket
19WPL 591014
19WPL 4455727
1918 Ga. 80~c Rating (Red)
19Wire (14 Ga. 200 c Brown)
191
19261900 Whirlpool Microwave Spray
19Harness, Wire (Latch)
19WP4451985 Whirlpool Noise Filter Board
19Wire (14 Ga. 150 c Yellow)
19Wire (14 Ga. 150 c Orange)
19Wire (14 Ga. 150 c Green)
1972032 Whirlpool Touch Up Paint Black
19285006 Whirlpool Spray
19WPW10339879 Whirlpool Wire Tie
194450800 Whirlpool Oven Screw
194448664 Whirlpool Oven Mounting Bracket
19Wire, 25“ Roll (White 14 GA.)
19Wire, 25` Roll (Red 14 Ga.)
19Wire, 25` Roll (Black 14 Ga.)
19WP112432 Whirlpool Nut Assembly
19WP4449809 Whirlpool Screw
19WP482338 Whirlpool Refrigerator Adhesive
19350930 Whirlpool White Spray Paint
194452400 Whirlpool Microwave Wire Harness
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Blue)
19WP261869 Whirlpool Microwave Paint
19242831 Whirlpool Oven Wire
19Spacer, Harness
1916515 Whirlpool Clip
19Conduit, Double
19WP4448950 Whirlpool Screw
19814381 Whirlpool Pin
1972017 Whirlpool Appliance Touch-Up Paint White
