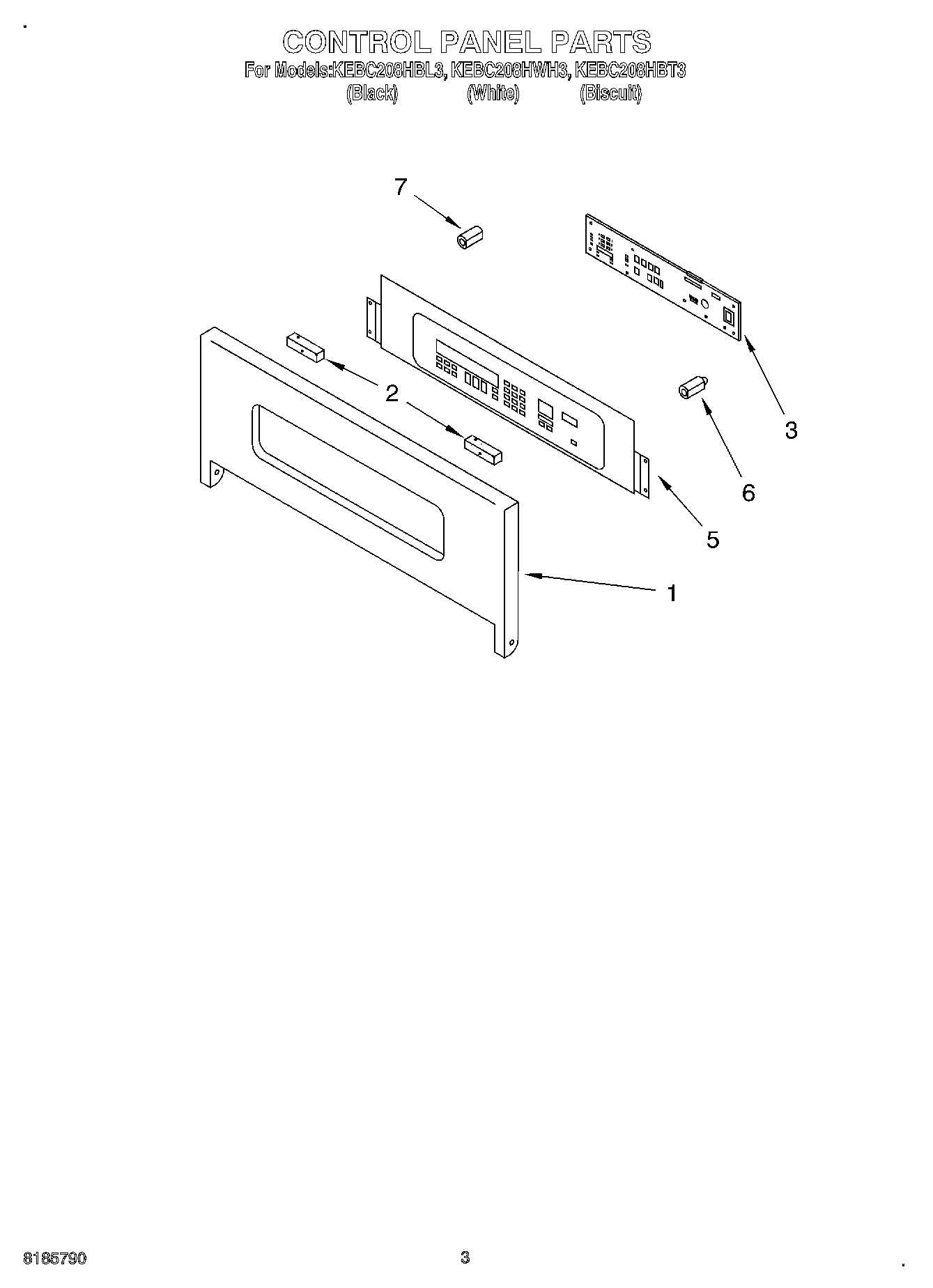

KEBC208HBL3 02 – CONTROL PANEL

KEBC208HBL3 02 – CONTROL PANEL

Written by

in

KEBC208HBL3 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Control (White)
1Panel, Control (Biscuit)
1Panel, Control (Black)
2Spacer, Foam
3WP3400832 Whirlpool Screw
3Microcomputer
5Switch, Membrane (Black)
5Switch, Membrane (White)
5Switch, Membrane (Biscuit)
6Insulation, Board
7Insulation, Board Support
